PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching
PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching
Specifications
Brand Name :
KAIDE
Model Number :
dual function HDPE pipe and drip pipe making machine
Certification :
CE, ISO
Place of Origin :
Shandong, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 sets per year
Delivery Time :
60 working days
Packaging Details :
soft film with sponge
Product name :
drip irrigation pipe extrusion machine
Line speed :
50m/min
Dripper type :
PC dripper or No-PC dripper
Pipe diameter :
drip pipe 16-20mm;
Punching machine :
2 holes; servo motor driven
Winding machine :
servo motor driven traversing with tension dancer
Description

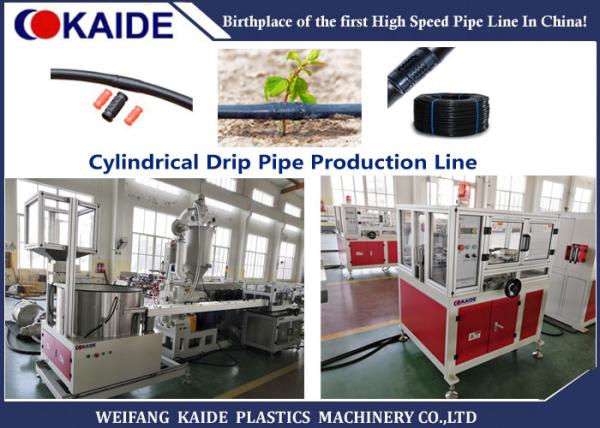

Cylindrical Drip Lateral Pipe Extrusion Machine

Drip Emitting Pipe Production Line

PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

This pipe production line is used to produce drip emitting pipes, with round dripper inside. Production speed is 50m/min for 16mm drip pipe at 30cm dripper space.

TECHINICAL DATA

Line Model Screw Diameter L/D Ratio Production Scope Production Speed Nominal Power
KDDG-60 60mm 36:1 12-20mm 50m/min 90KW

By few machine cofiguration changing, normal smooth HDPE pipes can be produced with one same line;

And also two layer or 3 three layer structure drip pipe can be produced, by co-extrusion technology.

PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

DRIP IRRIGATION PIPE MACHINE DETAIL INTRODUCTION -- 50m/min speed model

1. Dripper sorting & inserting machine

  • driven by servo motor and controlled by PLC system
  • dripper space is adjustable, directly set on PLC
  • dripper sorting disc made of high quality steel ;
  • Auto feeder with dripper lack alarm
PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

2. Extruder & Cross Die Head

  • Extruder driven by AC motor; with ABB converter, Schneider electric elements
  • SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed
  • Special designed cross type die head; high quality mould steel 40Cr, which is processed by imported CNC machinery.
  • Filter changer equipped for recycled material cleaning
PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

3. Vacuum tank & Cooling tank

  • made by high quality SS304
  • high quality vacuum pump & water pump
  • special design calibrator for drip pipe making
PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

4. Perforating Machine

  • drive by servo motor and servo controller, with high precision punching degree
  • auto tracking dripper positon
  • standard 2 holes punching
PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

5. Haul-off Machine

  • ABB converter
  • Wear-resisting belt; multi-group rollers pneumatic clamping with force adustable
  • Speed sync with extruder
PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

6. Winding Machine

  • servo type traversing device, driven by SIEMENS servo motor
  • with tension control device to auto adjust winding speed
  • separate SIEMENS PLC control system
  • Coil length free setting;
  • Auto stop protection function while sensor pipe end
  • Laser printing coil size inforamtion, for operation convenience
PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

PE Drip Emitting Pipe Making Machine /Drip Lateral Production Machine 50m/min servo punching

MORE INFORMATION NEEDED,

PLS CONTACT US RIGHT NOW!!
