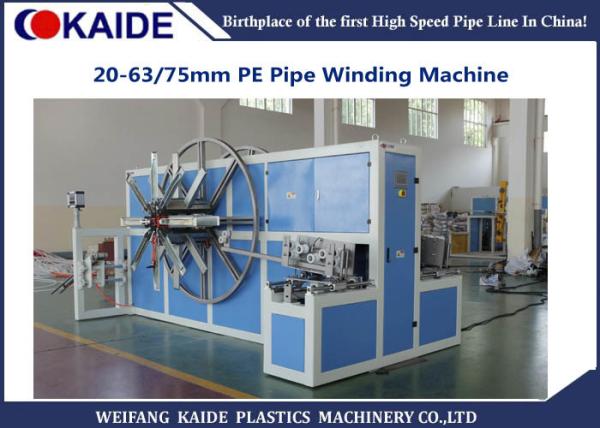

16-63mm HDPE Plastic Pipe Winding Machine / 63mm PE pipe winder
16-63mm HDPE Plastic Pipe Winding Machine / 63mm PE pipe winder
16-63mm HDPE Plastic Pipe Winding Machine / 63mm PE pipe winder
16-63mm HDPE Plastic Pipe Winding Machine / 63mm PE pipe winder
Specifications
Brand Name :
KAIDE
Model Number :
SGJ-63
Certification :
ISO
Place of Origin :
WEIFANG, CHINA
MOQ :
1set
Price :
15000-28000USD/set
Supply Ability :
500sets per year
Delivery Time :
45 working days
Packaging Details :
20GP container
Product Name :
PE pipe coiler
Pipe diameter :
16-63mm PE pipes
Traverser unit :
servo motor driven type with PLC controller
Coil ID :
550-1500mm
Coil width :
200-345mm
Coil height :
380mm
Description

PE pipe winding machine

PE pipe coiler 20-63mm

Below pipe coiler is designed to wind PE pipes, diameter range from 20-63mm, with servo type traverser unit.

Coiling parameters are directly set on PLC.

Coil Inner diameter are free adjusted. Dual working position design or single working postion as required.

16-63mm HDPE Plastic Pipe Winding Machine / 63mm PE pipe winder

Main Technical Parameters:

Model SGJ-63
Working postion single or double as required
Winding pipe diameter 20-63mm PE pipe
Traverser unit Servo motor driven type with PLC parameter setting
Coil ID 550-1500mm
Coil Width 200-345mm
Coil Height 380mm
If you have special requirement on coil size, pls contact us freely, we can design the winding machine as per your basic inforamtion.

Advantages of KAIDE plastic pipe winding machine:

  • Servo motor driven pipe traverser unit, with servo motor; To ensure to winding pipe coil with well arrangement, and ensuring high speed coiling.
  • No need operator to help pipe coiling while working; lot of labor cost can be saved.
  • PLC control system with parameter setting; much intelligent and convenient to operate.
  • Coil width and inner diameter size inforamtion are laser printed on the machine, convenient to adjusting
  • Coil length metering, with alarm function, to remind the operater to cut the pipe while reaching setting length
  • Pipe end clamp function to prevent coil loosen.

16-63mm HDPE Plastic Pipe Winding Machine / 63mm PE pipe winder

16-63mm HDPE Plastic Pipe Winding Machine / 63mm PE pipe winder

CONTACT US RIGHT NOW TO GET WINDING MACHIEN WORKING VIDEOS!
