Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine
Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine
Specifications
Brand Name :
KAIDE
Model Number :
EVOH pipe extrusion machine
Certification :
CE; ISO
Place of Origin :
Weifang, China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
200 sets per year
Delivery Time :
60 working days
Packaging Details :
soft film with sponge
Product Name :
5 layer PA Nylon pipe making machine
Pipe diameter :
6mm; 8mm; 10mm
Pipe Material :
Nylone 12; EVOH, and Adhesive; 5 layer sturcture
Extrusion technology :
multilayer co-extrusion technology
Description

5 Layer PA Nylone EVOH Oxygen Barrier Pipe Production Line

Multilayer Automobile PA Nylon Oil Tube Extrusion Machine

Below multilayer tube extrusion line is used to extrude 5 layer PA/EVOH automobile fule tube, with an outer diameter 6mm, 8mm and 10mm.

The PA multi-layer composite pipe can effectively reduce the automobile's emission pollution and meet higher enviromental requirements. As the multi-layer composite pipe features an excellent resistance to penetration, it meets EU-III standards.

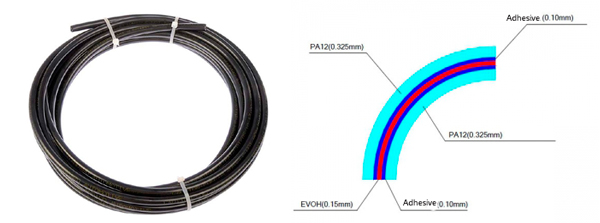

Multilayer Pipe Structure:

  1. Inner layer: PA 12
  2. Inner adhesive layer
  3. EVOH oxygen barrier layer
  4. Outer adhesive layer
  5. Outer layer: PA 12

Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine

TECHNICAL DATA

lINE Model Screw diameter Production Scope Production Speed
KDFPA-45 45/45/30mm 6-20mm 40m/min
KDFPA-65 65/45/30mm 6-20mm 80m/min

MULTILAYER AUTOMOBILE FUEL PIPE MACHINE

Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine

  • Extruder is special designed for PA raw material, so that extrusion output and plastizizing quality are effectivly improved.

  • Multilayer co-extrusion die head adopts special moulds steel, matching up with the unique multi-layer co-extrusion technology and high accuracy CNC processing to creat imcomparable features of high reliablity, usablility and high precision.

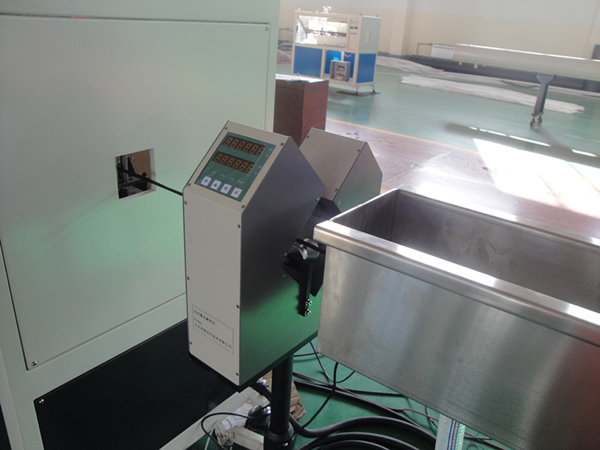

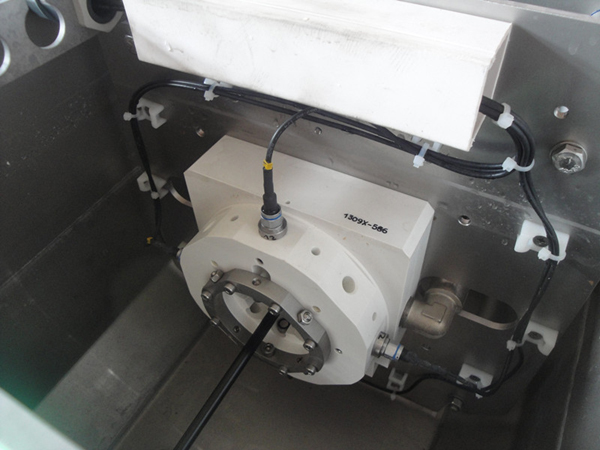

  • Gravimetric material dosing system, thickness control system, and diameter measuring system are equipped to control produced pipe accuracy.

  • SIEMENS PLC system to realize many inteligent operations, such as multi-machine linkage, sperate machine control, fault diagnosis, remote control etc. At same time, advanced on line nonitoring and control technologies, such as servo tracking technology, static digital filter technology etc, are used to ensure plastizing quality and produced pipe accuracy under high speed extrusion.

Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine

Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine Multilayer Automobile Fuel Tube Making Machine , 5 Layer Automobile Fuel Tube Making Machine

MORE INFORMATION NEEDED,

PLS CONTACT US RIGHT NOW!!
