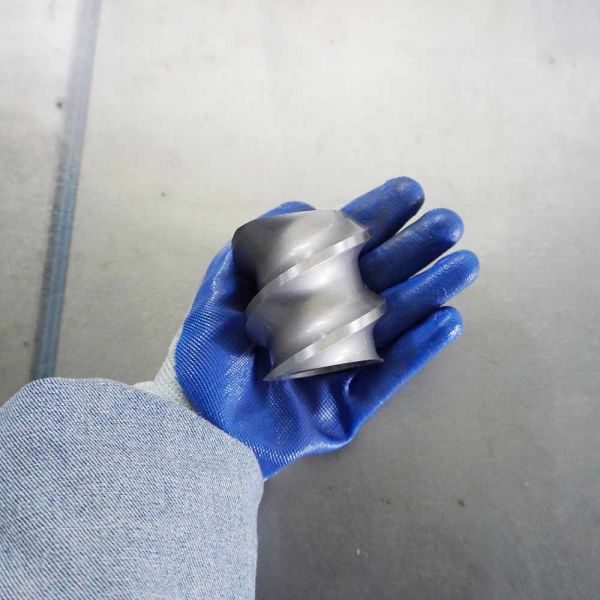

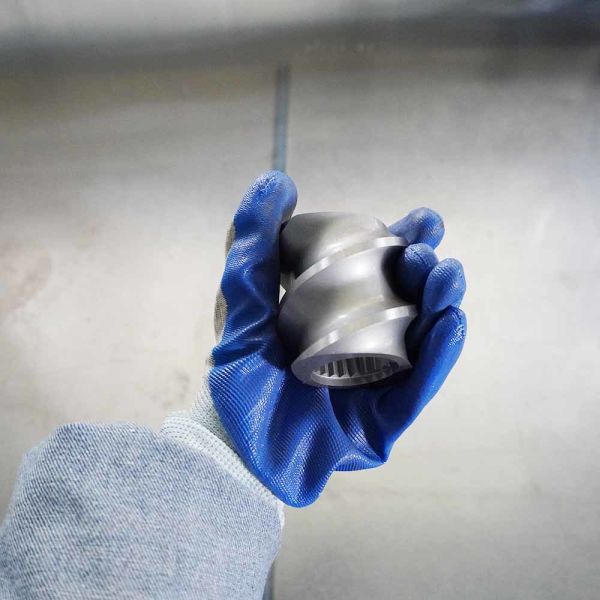

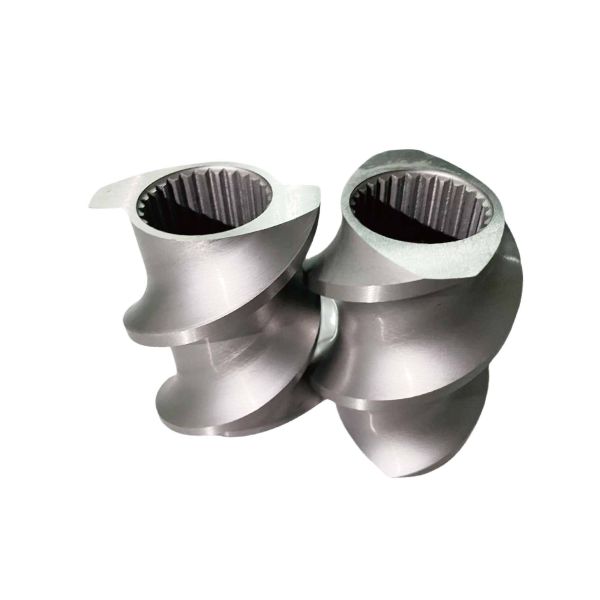

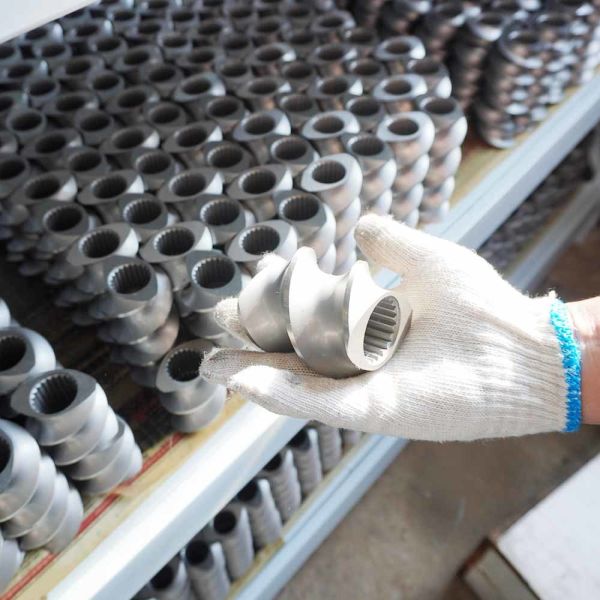

Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Kneading Block Shear Elements for Twin Screw Extruder, 30/45/60/90° Mixing Blocks for Polymer Blending
Specifications
Model Number :
TSE-20
Screw Diameter :
21.7mm
Delivery Time :
7 work days
MOQ :
1
Payment Terms :
T/T
Place of Origin :
China
Model :
TSE-20
Certification :
CE/ISO
Machine Material :
W6Mo5Cr4V2
Screw Hardness :
60-64
Brand Name :
HLD
Process Material :
PA/PE/PP/PLA
Screw Design :
Double Screw
Application :
Plastic Granulator
Main Features :
High torque/High output/High efficiency
Description

High-precision twin screw kneading blocks are professional shear and mixing core components designed for polymer modification processing. We provide complete angle specifications including 30°, 45°, 60° and 90° kneading elements, covering low shear soft mixing, medium shear uniform dispersion and high shear strong crushing processing requirements. Made of high-alloy wear-resistant steel with precision CNC cutting and grinding processing, the kneading blocks have smooth gap matching, uniform material shearing force, no dead mixing angle and excellent self-cleaning performance during high-speed operation. They can fully disperse inorganic fillers, color masterbatch, glass fiber, talcum powder and flame retardants, effectively improving material uniformity, fineness and modification stability. The products are highly compatible with Coperion, Leistritz, JSW, Toshiba and all mainstream domestic and foreign twin screw extruder models. We support personalized combination matching according to customer material characteristics and process requirements. All products pass strict factory quality inspection and performance testing. In terms of after-sales service, we provide free pre-sales process scheme consultation, professional equipment matching guidance, detailed installation and use manuals, 12-month quality warranty, quick replacement service for defective products and 24-hour online technical after-sales response for global customers.

The material of the threaded element
Model L/D Screw national standard diameter
H-20B 28~60 :1 21.7mm
H-35B 28~60 :1 35.6mm
H-50B 28~60 :1 51mm
H-65B 28~60 :1 62.4mm
H-75B 28~60 :1 71.5mm
