PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
Specifications
plastic processed :
PE, PP, PVC, ABS, Xps, WPC, Polystyrene, PA, EVA, EPS, PET, PC, FRPP/PVC, HDPE, PPR, wood-plastic, ABS/PP, HDPE/PP, PE/PP, LLDPE, LDPE, Polylactic Acid
application :
Bar, Wire, Pipe, Granules, Sheet, Film, Profile, Plates, Filament, Pelletizing, Straw
Screw Design :
Double-screw, two screw and single screw
twin screw type :
Co-rotating Parallel Twin-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
Other
Screw L/D Ratio :
55:1
Screw Speed (rpm) :
500
Place of Origin :
Jiangsu, China
Brand Name :
HLD
voltage :
custom
dimension(l*w*h) :
custom
power (kw) :
75
warranty :
1 Year
key selling points :
Automatic
video outgoing-inspection :
Provided
core components :
Motor, Pump, Gear, PLC, Other, Pressure Vessel, Gearbox, Screw
machinery test report :
Provided
Weight (KG) :
5000
extruder type :
twin screw
Name :
two stage screw extruder
Function :
Cutting
Color :
Customer Choice
Automatic Grade :
High Automation
Usage :
Plastic Extrusion
Contactor :
Schneider Brand
Fits for :
Solid Plastics
Motor :
SIEMENS Brand
Used for :
Making Plastic Products
MOQ :
1
Price :
€27,869.54
Description
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

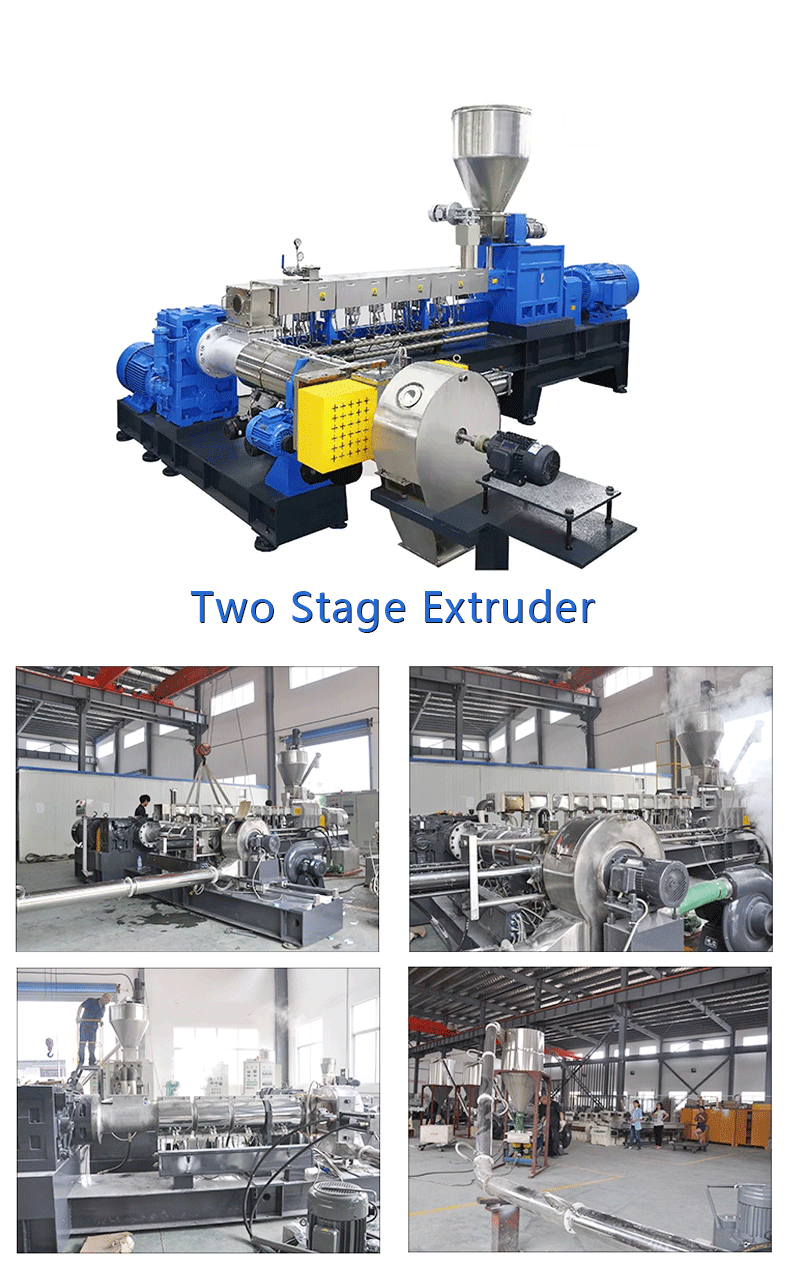

Two Stage Extruder Machine

Two Stage Twin Screw+Single screw Extruder granules Machine. It is suitable for most polymer compounding production, which features simple structure,easy operation and convenient maintenance.Common, will be matched with the Kneader machine. Use two stage extruder machine for Black masterbatch /Cable material / 80% CaCo3 filler and so on.Suitable for projects with large output. The two-stage compounding extruder is so favored by its good production quality, higher output and lower energy consumption. It is particularly applicable to produce the heat-sensitive material PVC, POM, XLPE, etc.

Model
Twin screw L/D
Output
H60-120
38:1/ 40:1/ 44:1/ 48:1
400~700kg/h
H65-150
38:1/ 40:1/ 44:1/ 48:1
600~900kg/h
H75-180
38:1/ 40:1/ 44:1/ 48:1
800~1300kg/h
H95-200
38:1/ 40:1/ 44:1/ 48:1
1200~1500kg/h
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
Given the material and recipes, We can offer an array of compounding systems with options for compressing or molding a material into pellet form.These pellet are used as follows：
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Filler Masterbatch

Filler Masterbatch are concentrates of CaCO3 or Talc or BaSO4 in a polymer base.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Color Masterbatch

Color masterbatch is used for any polymer and all kinds of product.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Additive Masterbatch

Additive Masterbatch are used in a wide variety of application.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Engineering Plastic

Our HLD-X serial Extruder with high torque gearbox is special designed for this application.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Biodegradable Plastic

Given its durability and longevity, plastic waste becomes a huge challenge for a greener, better world.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Cable Compounding

We are committed to providing advanced extruder for all kind of cable compounding
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Thermoplastic Elastomers (TPE)

It is a class of copolymers or a physical mix of polymers that consist of materials with both thermoplastic and elastomeric
properties.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

PVC Compounding

PVC is durable, cheap, and easily worked. Before PVC can be made into finished products, it always requires conversion into a
compound by the incorporation of additives.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine

Science New Materials

Science and technology new materials compounding.For aerospace, new energy, and other important fields.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
Machine customization cycle, very short.The soonest it will take is 10 days.At the same time, the quality will be well controlled.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
Accessories from international brands, quality assurance. We will inspect the machine before shipment.Export more than 150 machines per year.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
7x24h work.
We will serve you as soon as we receive your letter.Help you with all your machine problems.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
Small samples and materials,We will send it by international express. Large machinery and equipment, we will send by sea. Normally, the logistics time is 10 to 40 days.We will pack our machines in wooden cases.
PVC Cable Granules -65/150 Two Stage Screw Compounding Plastic Extruder Pelletizing Machine
1:What machines are they mainly producing?
Plastic twin screw extruder machine and accessories and other granules making machine.
2:How much time it takes to customize?
10~40days
3:How to pay?
You can pay with Ali or TT go to the bank.
4：How long is the warranty?
1year
5:How to Contact Us?
you can E-mail to us.We will provide the technology to know, online.
