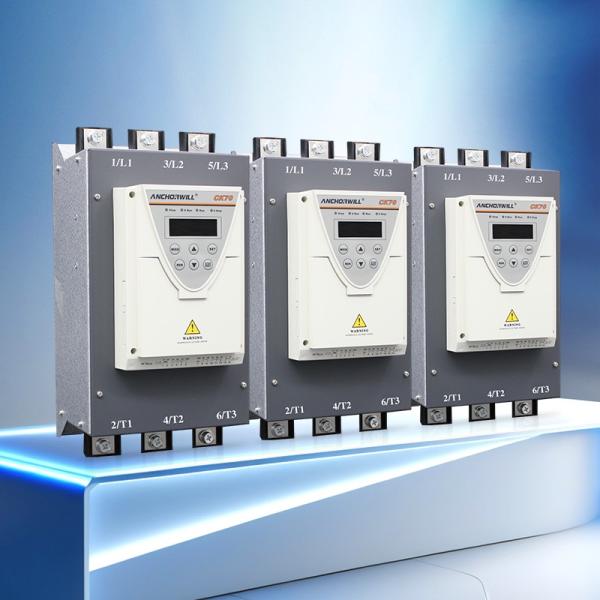

Name: CK70 Soft Starter Threephase Asynchronous Motors 200KW Soft Starter
Brand: Anchorwill
Price: 1 USD

MachineU > China Products > Electrical Equipment & Supplies > Industrial Controls > Variable Frequency Driver

CK70 Soft Starter Three-phase Asynchronous Motors 200KW Soft Starter

Specifications

Brand Name :

Anchorwill

Model Number :

CK70

Certification :

Place of Origin :

China

MOQ :

Payment Terms :

L/C,T/T

Packaging Details :

Packing in wooden cases for export

Product name :

440V soft starter

Applicable standards :

GB14048.6-2016(IEC947-4-2)

Applicable motor type :

Squirrel-cage three-phase asynchronous motors

Adjustable stopping time :

0～120s adjustable

control mode :

1.Ramp voltage 2.Ramp current 3.Current limit mode

Installation :

Vertical installation in cabinet

Description

CK70 Built-In Bypass Soft Starter Use DSP Central Processing Unit

CK70 Built-In Bypass Soft Starter 440V soft starter

CK70 series intelligent soft starter with built-in bypass is a brand-new product optimized and launched on the basis of our CK60 economic soft starter.

Based on the CK60 economic soft starter, the CK70 series is a brand-new product optimized and launched, and its overall performance has been greatly improved to become the preferred product for high-performance drive control of general machinery. It has become the preferred product for high-performance drive control of general-purpose machinery.

Principle of operation

By limiting the starting current and starting torque, the soft starter can reliably prevent mechanical shock and voltage drop in the power grid during the starting process. The motor starting voltage is reduced by controlling the SCR conduction angle, and the motor starting voltage is increased to the rated voltage within the set starting time. By virtue of this stepless control of the motor voltage, the motor can be adjusted according to the load characteristics of the driven machine, gently accelerating the machinery and equipment, thus significantly improving the operating performance of the machinery and equipment, as well as the voltage drop of the driven machine.
This significantly improves the operational performance of the machine, reduces maintenance costs and extends service life.

Built-In Bypass Soft Starter Specifications

model number	Rated power (kW)	rated current		Overall dimensions
model number	Rated power (kW)	(A)	Casing Model	high	wide	depth
CK70-00840	7.5	22	M-SS-01	278	150	143
CK70-01140	11	27	M-SS-01	278	150	143
CK70-01540	15	30	M-SS-01	278	150	143
CK70-01840	18.5	34	M-SS-01	278	150	143
CK70-02240	22	38	M-SS-01	278	150	143
CK70-03040	30	65	M-SS-02	350	180	177
CK70-03740	37	70	M-SS-02	350	180	177
CK70-04540	45	88	M-SS-02	350	180	177
CK70-05540	55	110	M-SS-03	380	224	193
CK70-07540	75	140	M-SS-03	380	224	193
CK70-09040	90	172	M-SS-04	461	266	233
CK70-11040	110	200	M-SS-04	461	266	233
CK70-13240	132	280	M-SS-05	790	320	309
CK70-16040	160	320	M-SS-05	790	320	309
CK70-18540	185	355	M-SS-05	790	320	309
CK70-20040	200	380	M-SS-05	790	320	309
CK70-22040	220	440	M-SS-05	790	320	309
CK70-25040	250	480	M-SS-05	790	320	309
CK70-28040	280	560	M-SS-06	939	330	379
CK70-31540	315	600	M-SS-06	939	330	379
CK70-35540	355	700	M-SS-06	939	330	379
