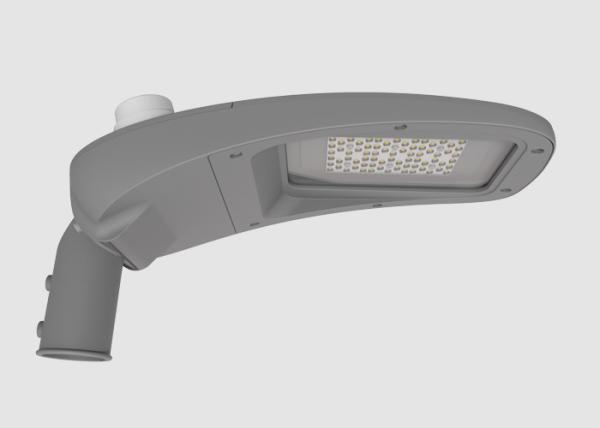

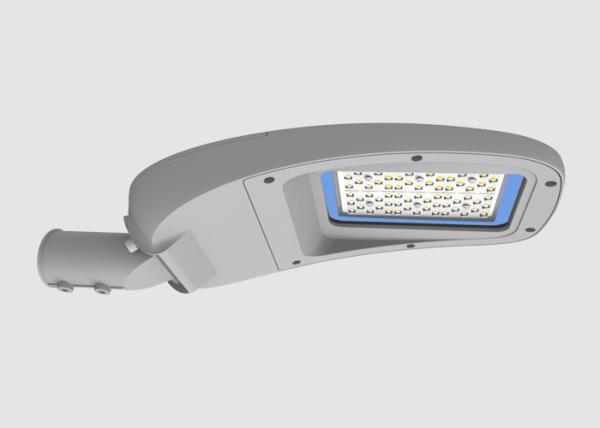

LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting
LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting
LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting
LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting
LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting
LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting
Specifications
Brand Name :
E-lite
Model Number :
Phantom Series Die Cast Street Light
Certification :
UL ETL DLC CB CE RoHS SAA
Place of Origin :
China
MOQ :
5
Price :
Please contact us to obtain a quote
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
100,000PCS PER MONTH
Delivery Time :
2-4 WEEKS
Packaging Details :
CARTON BOX
Watt :
80W
Lumens :
8,100lm
LED Chip :
Lumileds
Efficacy :
135 lm/W
Lumen Maintenance :
L70>100,000 Hrs
Beam Angle :
70 x 140°(TYPE Ⅱ-S) 70 x 150°(TYPE Ⅱ-M)
Description

LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting

Features

  • System Light Efficacy 135 LPW.
  • Slim Cobra Head Design.
  • One-piece Die-cast Aluminum Housing With Integral Mounting For Strength And Durability.
  • Easy Installation,Direct Slide-in Mount.
  • Tool-free Access To Mounting And Electrical Components.
  • IP66
  • Three to Five Years Warranty
  • cETLus, DLC Premium, CE, RoHS

Phantom Series LED Street Light 60W.pdf

Input Voltage AC 100~277 V
LED Driver Sosen
LED Chip Lumileds
Power Factor ≥0.95
Efficacy 135 lm/W
Luminous Flux 8,100lm
CRI ≥70
Lumen Maintenance L70>100,000 Hrs
Colour Temperature 4500~5500K (2500~5500K Optional)
Beam Angle 70 x 140°(TYPE Ⅱ-S)
70 x 150°(TYPE Ⅱ-M)
IP Rating IP66
Operating Temperatur -30 to 45°C (-22 to 113°F)
Dimensions 520x212x90mm
Net Weight 5.5kg

Typical Applications

  • Road Way Lighting
  • Walkway Lighting
  • Plaza Lighting
  • Area Lighting

LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting

Photometrics

1. 70 x 150° (TYPE Ⅱ-M)

LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting

2. 70 x 140° (TYPE Ⅱ-S)

LED Cobra Head Street Light 60W / Tool free Mounting of Street Roadway Lighting
