Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Specifications
MOQ :
10
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
7 working days
Packaging Details :
Cartons or Pallets
Place of Origin :
China
Model Number :
BDM
Price :
3usd-38usd
Supply Ability :
10000
Name :
Explosion Proof Cable Gland
Ex Mark :
Exd IICT4 Gb
Material :
SS304, Copper-nickel plated, copper, carbon steel available.
Protection :
IP66
Thread :
G，NPT;METRIC
Customized :
Avaliable
Description
Exd Explosion Proof SS304 SS316 Cable Gland IP66 Waterproof Double Compression Armoured
Product Overview
Double Compression Armoured EX Cable Gland featuring explosion-proof construction with nickel plated brass and waterproof IP66 rating for superior cable protection in hazardous environments.
Technical Specifications
Parameter Specification
Applicable Cable Diameter 5-77 mm
Material Brass, Nickel plated brass, SS304
IP Level IP66
Type High Voltage, Low Voltage
Thread Type Metric, M
Model Number M12-M63
Work Temperature -60℃ to +100℃
Place of Origin China
Key Features
  • Double compression design for enhanced cable security
  • Explosion-proof construction (Exd certified)
  • Waterproof IP66 rating for harsh environments
  • Available in stainless steel SS304/SS316 and nickel plated brass
  • Multiple thread options: M metric/PG/G/NPT
  • High temperature resistance: -40℃ to +100℃ (120℃ short term)
  • NBR/Silicone Rubber seals for optimal protection
  • Ideal for power equipment and cable protection applications

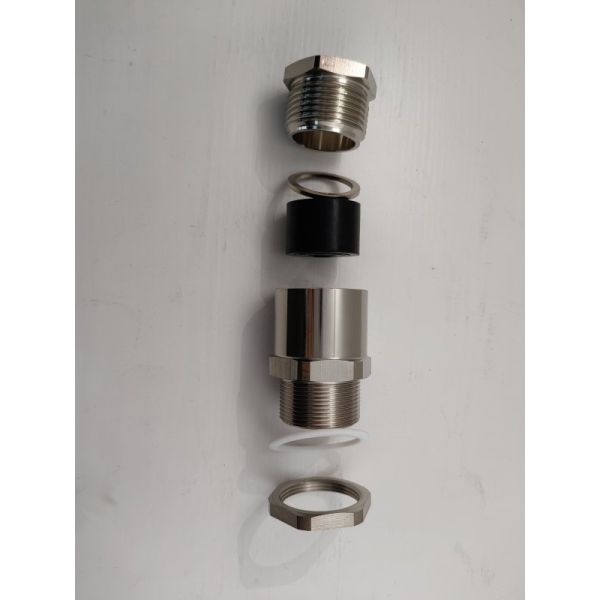

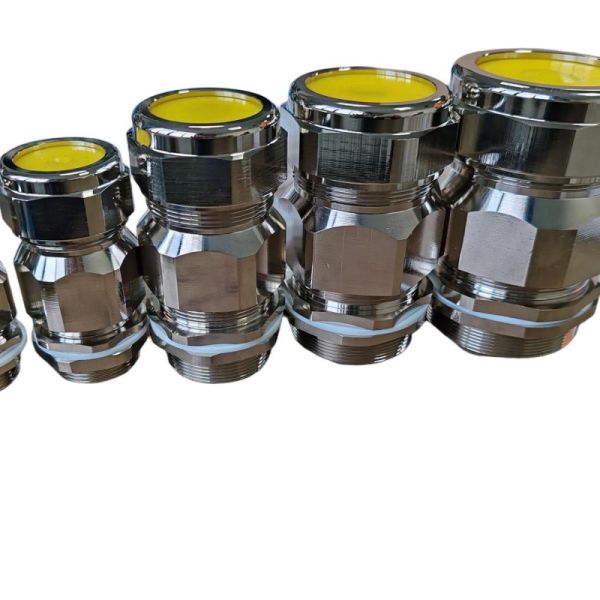

Product Images
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
Exd SS304 SS316 Explosion Proof Cable Glands IP66 Waterproof Double Compression Armoured
