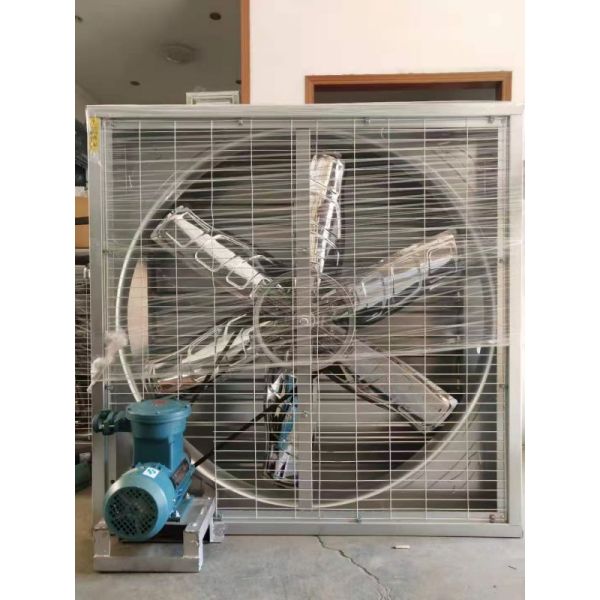

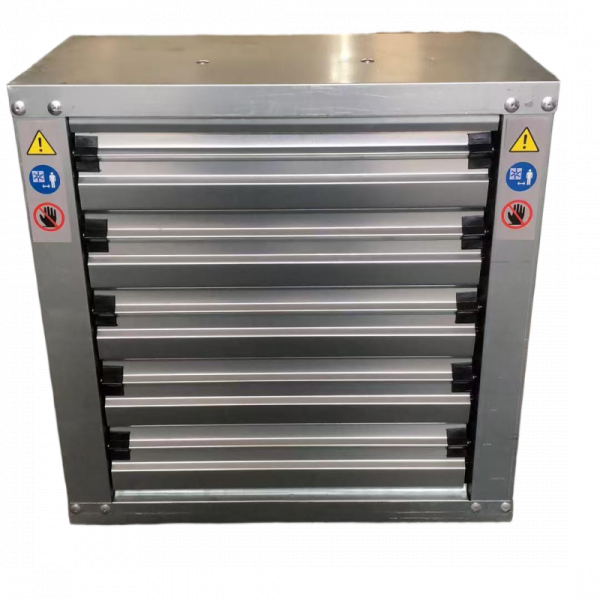

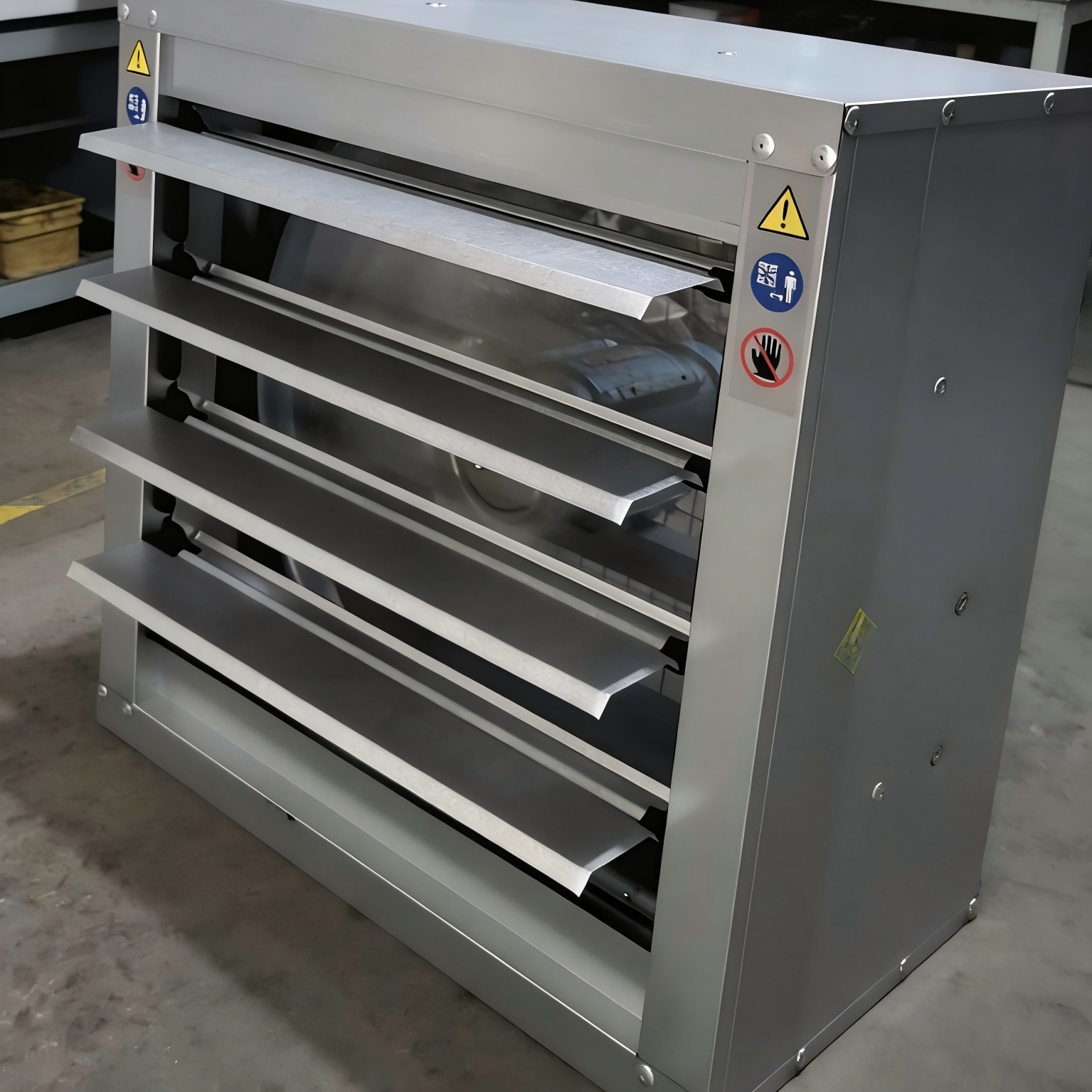

Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan
Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan
Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan
Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan
Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan
Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan
Specifications
Price :
US$150.00-280.00
Packaging Details :
Wooden box
Motor power :
1/4 HP
Payment Terms :
L/C,T/T,Western Union
Current rating :
2.7 amps
Certification :
ATEX
Voltage options :
220V, 380V, 415V
Supply Ability :
5000set/Month
Delivery Time :
5-9days
Place of Origin :
China
Airflow capacity :
44,500 CFM
MOQ :
1
Material options :
Galvanized steel or stainless steel
Brand Name :
cherubim
Motor speed :
1400 RPM
Description

Explosion Proof Exhaust Fan Hazardous Area Negative Pressure Ventilation FanExplosion Proof Exhaust Fan Hazardous Area Negative Pressure Ventilation FanExplosion Proof Exhaust Fan Hazardous Area Negative Pressure Ventilation Fan

Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan

Main feature:
The hot galvanized sheet adopts 275g/ galvanized layer, which does not rust.
2) 95% of the parts are produced by ourselves, reducing processing costs, sharing profits with customers, and ensuring quality worldwide
3) Complete CNC production line, 100% assembly accuracy, easy assembly, quality assurance.
4) Wall-mounted fan, installation and maintenance
Convenient 5) belt drive, large air volume
*. Material: high-quality nylon PA66
* Guide rod: 304 stainless steel, external use of special materials, high strength, no rust, reduce friction.
* Rivets: 304 stainless steel, wear-resistant, no rust
. Advantages:
1.No electric ventilation, pull ring auxiliary heavy hammer
2.It can keep the blinds fully 90 degrees open to ensure the lowest air resistance and maximum air volume.
Blade:
* The blade is made of stainless steel stamping, no damage, no dust, beautiful and durable.
* The special blade shape design ensures large air volume, no deformation, no breakage, and the air volume remains unchanged throughout the whole process.
Fan pulley:
* The fan pulley is made of high strength aluminum-magnesium alloy die casting, completely lightening the blade impeller
The weight, high resistance
Corrosion
* The special three-edge pulley design eliminates internal stress and improves its own stiffness and stability without

Can be used inhazardous areas:
Zone 1 and Zone 2.
Can be used in explosive gas atmospheres of Category llA and llB where the temperature classification is T1 ~T4.
Product Specifications
Type Size(mm)L*W*H Diameter (mm) Speed (r/min) Air volume (m³/h) Sound (dB) Power (W) Rated voltage (V)
BFC-400 400X400X350 320 1450 3500 65 0.25-4 380
BFC-500 500X500X350 420 1450 7000 56 0.25-4 380
BFC-600 600X600X350 560 960 10000 56 0.37-6 380
BFC-700 700X700X350 620 960 15000 60 0.37-6 380
BFC-800 800X800X400 630 427 19500 56 0.37 380
BFC-900 900X900X400 770 427 29500 56 0.37 380
BFC-1000 1000X1000X400 930 427 31500 58 0.55 380
BFC-1100 1100X1100X400 970 427 33000 61 0.75 380
BFC-1220 1220X1220X400 1100 427 37000 63 0.75 380
BFC-1380 1380X1380X400 1270 427 44500 65 1.10 380
BFC-1530 1530X1530X400 1430 427 54000 68 1.5 380

Explosion Proof Exhaust Fan | Hazardous Area Negative Pressure Ventilation Fan

Frequently Asked Questions
Q1: What explosion proof certification is available?
A1: ATEX
Q2: What airflow capacities are available?
A2: Various capacities available - contact for specific requirements
Q3: Can the fan be customized?
A3: Yes
Q4: Is stainless steel available?
A4: Yes, Galvanized steel or stainless steel are available
Q5: Can the fan work in high temperature environments?
A5: Yes
Q6: What voltage options are available?
A6: 220V, 380V, 415V
Q7: What is the lead time?
A7: For customized products, the delivery time is determined based on specific parameters
