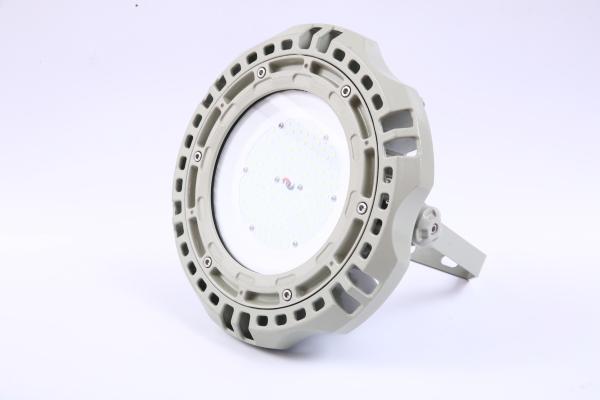

“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”
“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”
“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”
“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”
“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”
“Hazardous‑Location Explosion‑Proof UFO High Bay LED – 120 lm/W, IP66 Waterproof for Warehouses”
Specifications
Brand Name :
CROWN EXTRA
Model Number :
GYD810
Certification :
ATEX,CE,CNEX,ISO,RoHS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Per Month
Delivery Time :
5-7 work days
Packaging Details :
1SET/CTN
Voltage Rating :
AC100-290V 50Hz/60Hz 24/36 VDC
Installation Method :
Ceiling, Flat
Lamp Luminous Efficiency :
135 Lm/w,
Mounting Styles :
Ceiling; Wall; Bracket; Pendant; Flange
Color Temperature :
5000K
Used Zone :
Zone 1,2 And 21, 22
Material :
aluminum alloy
Finish :
yellow/grey
Lumen :
5500Lm
Application :
Explosive environments, such as oil refineries, chemical plants, and gas stations
Wf Degree :
WF2
Light Source :
LED
Size :
270x170mm/ 270mmx300mm
Wattage :
-150W
Lamp Luminous :
130lm/w
Description

Features:

1. Zone2, Zone 21,22

2. Instant on crisp white light output

3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications

4. Isolated LED compartment reduces temperature within driver housing

5. Multi choice of beam angle for 60° 90° 120°

Application:

1. Typical applications include

2. Oil and gas industrial

3. Chemical petrochemical

4. Pharmaceutical industries

5. Pulp and Paper

6. Waste and sewage treatment

7. Power Generation

Specification:

European (ATEX) Gas and Dust II 2G Ex nR e IIC T6
II 2D Ex td T80℃
For use in Zone 2 & Zone 21, 22
Electrical data
Rated voltage 100-240VAC, 50-60Hz
Power factor >0.95
THD <20%
Luminous characteristics
Power consumption [W] 20～70 80-100 100-200 220-300
Colour rendering [CRI] 70 (±2)
Colour temperature [K] 5700-6500
Luminaire efficiency [Lm/W] 125
Beam angle 120° (60°, 90° is optional)
Mechanical data
Degree of protection IP66
Cable entry G 3/4”
Weight [kg] 4.8 6.4 8.8 /
Terminal ≤2.5 mm²
Mounting Styles Ceiling; Wall Bracket; Pendant
