IP65 WF1 Explosion Proof Electrical Junction Box Die Casting Aluminum IP65 2 3 Entries Horizon
IP65 WF1 Explosion Proof Electrical Junction Box Die Casting Aluminum IP65 2 3 Entries Horizon
IP65 WF1 Explosion Proof Electrical Junction Box Die Casting Aluminum IP65 2 3 Entries Horizon
IP65 WF1 Explosion Proof Electrical Junction Box Die Casting Aluminum IP65 2 3 Entries Horizon
IP65 WF1 Explosion Proof Electrical Junction Box Die Casting Aluminum IP65 2 3 Entries Horizon
IP65 WF1 Explosion Proof Electrical Junction Box Die Casting Aluminum IP65 2 3 Entries Horizon
Specifications
Brand Name :
CROWN EXTRA
Model Number :
AH-Explosion Proof Junction Box
Certification :
ATEX,CE,CNEX,ISO,RoHS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Per Month
Delivery Time :
5-7 work days
Packaging Details :
1SET/CTN
Protection Class :
IP65
Dust Proof :
WF2
Explosion-Proof Mark :
Exd II CT6
Protection Level :
IP65
Application :
Hazardous areas, such as oil and gas, chemical plants, etc.
Cable Entry :
M20
Terminal Type :
Screw type
Installation Method :
Wall-mounted
Cable Hole :
6 sets of G3/4 (NPT3/4)
Rated Current :
10A
Conduit Entries :
G1/2
Warranty :
5 Years
Weight :
Customer Settings
Water Proof :
IP66
Fireproof Grade :
WF1
Description

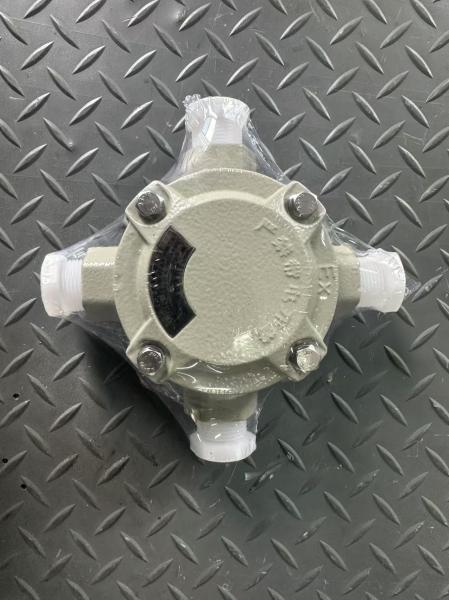

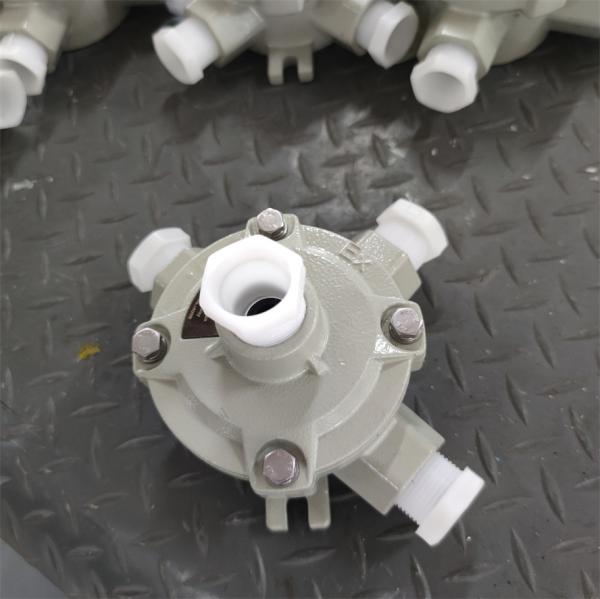

Die-casting aluminum Explosion Proof Junction Box IP65 2/3 entries in horizon

1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Hazardous:division 1 & 2,or 20,21,&22.
5. Explosive gas atmosphere:class IIA, IIB, IIC or inflammable dust environment.
6. Indoor or outdoor (IP65,IP66)
7. Temperature class:T1~T4/T5/T6
8. Widely using in the fields of oil,Chemistry industry,spaceflight,are-industry and so on.

Housing: Die-casting aluminum
Exterior: Stainless steel

DETAILED DATASHEET

Outline Code Description Outline Code Description
Horzontel cover A 1 entry in horizon Hung cover F 1 entry in horizon
Horzontel cover B 2 direct entries in horizon Hung cover G 2 direct entries in horizon
Horzontel cover C 3 entries in horizon Hung cover H 3 entries in horizon
Horzontel cover D 4 entries in horizon Hung cover I 4 entries in horizon
Horzontel cover E 2 perpendicular entries in horizon Hung cover J 2 perpendicular entries in horizon
