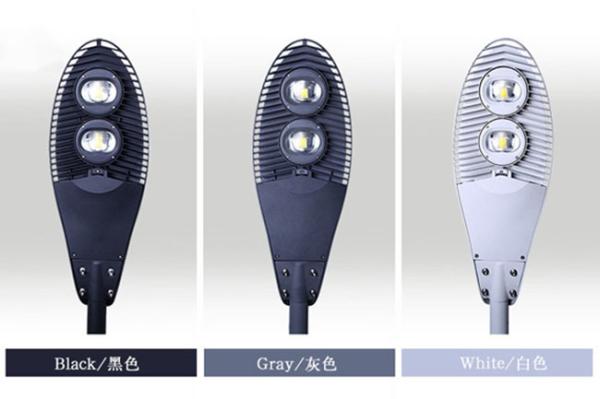

High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W
Specifications
Brand Name :
DSF
Model Number :
SL-1
Certification :
ISO14001: 2015 , ISO9001: 2015
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T; Paypal
Supply Ability :
3000pcs/month
Packaging Details :
Outer Carton:870*350*180mm (1pcs/CTN)
Product Name :
100W Waterproof LED Street Light
Power :
100W
Light effect :
105Lm/W
Color Temperature :
2700-6500K
IP Rating :
IP67
Working Temperature :
-40℃~50℃
Power Factor :
>0.95
Weight :
8.64kg
Description

IP67 Waterproof Led Street Light 100w High Power Led Street Light

Parameters

No. Item Unit Value
1 Power W 100
2 Luminuox FLux Lm 10500
3 Lighting Effect Lm/W 105
4 Lamp Efficiency - >90%
5 Color Temperature K 2700-6500
6 Color Rendering Index - Ra>70
7 Working Humidity RH 10%—90%RH
8 Ambient Temperature °C -40~50
9 Mounting Aperture mm Φ58-Φ62
10 Installation Height m 6-9
11 Beam Angle degree 140
12 Input Voltage V 90~305AC
13 Frequency Range HZ 50/60
14 Power Factor - >0.95
15 IP Rating - IP67
16 Weight kg 8.64

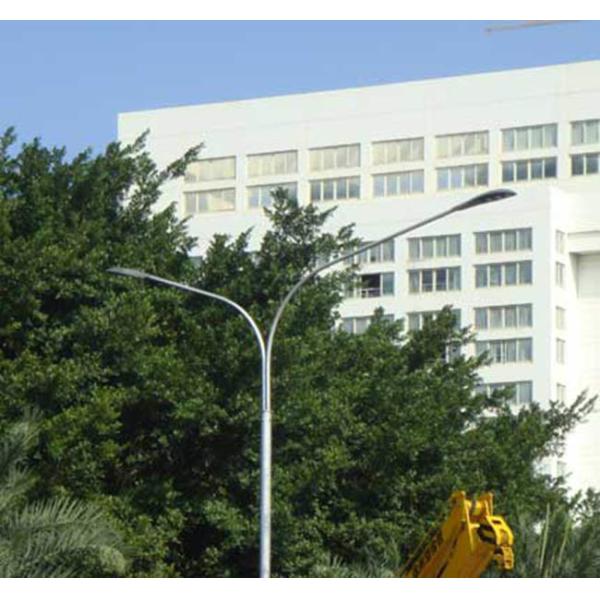

Application

Applied to urban primary and secondary roads, expressways, traffic roads, country roads, plazas, factories, etc.

High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W

LED Street Light Installation


High Power Outdoor LED Street Lights 100w Cobra Head Led Light 105 Lm/W

(1) Installation of street lamps and poles

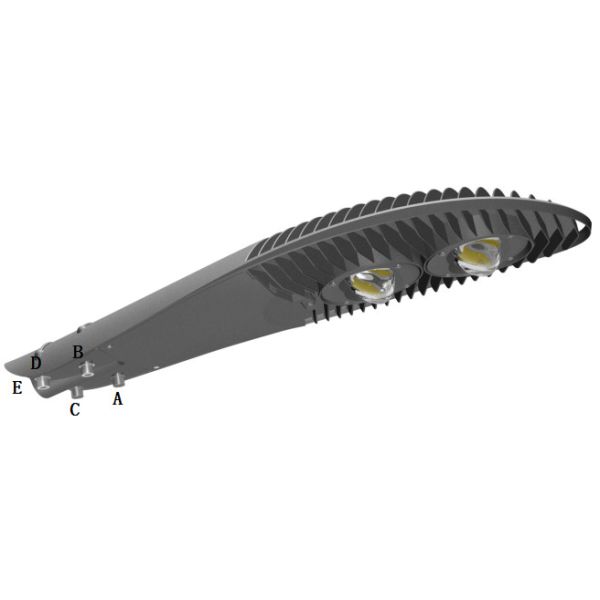

Clamp installation: Insert the lamp post into the mounting hole (E position in the figure), and lock the four hexagon socket bolts “A, B, C, D”
Installation torque: screw torque is 12N·M (ABCD is M10*30 hex)
Projected area: 0.10㎡
Mounting height and elevation: Refer to the Technical Data section
Type C connection: Y-connection, the external flexible cable or cord of the luminaire is damaged, and the line should be replaced by the manufacturer or its service agent or a qualified person to avoid danger.


(2) Connect the reserved line of the street light interface to the light pole line. Note that the fire line, neutral line and ground line are connected as follows without clear identification:

Brown line → L
Blue line → N
Two-color line → G
