Specifications
Brand Name :
ROSCHEN
Model Number :
Geobor S 146, CSK 146
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Supply Ability :
100000000 set
Packaging Details :
Wooden box
Diamond Core Drilling :
Wireline Core barrel Drilling
Drill Machine :
Drilling Rig
Mining :
Australia Mining
Core Barrels :
Boart Longyear Core Barrel
Standard :
DCDMA
Parts :
Wireline Core Drill Parts
Warranty :
1 year
Usage :
Underground drilling
Core Barrel Size :
NMLC Triple Tube Core Barrels
Sizes :
rock core barrel sizes
Item No :
Drilling and Chipping Solid Rock
Core Barrel Tools :
Coring In-Hole Tools
Specifications :
NQ HQ PQ core barrel outer tube
Mazier Core Barrel :
M101 core barrel
Applications :
Copper Mining Drilling
Description

S-Geobor Large Diameter Wireline Coring System Wireline Core Drilling Barrel

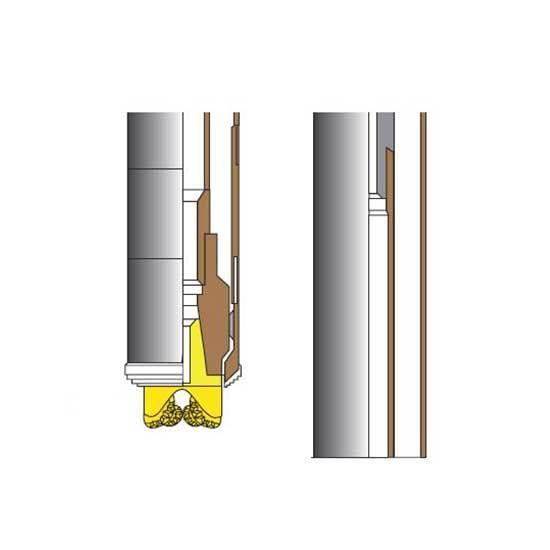

Geobor S 146 Wireline Triple Tube Core Barrel

The S Geobor wireline core barrel with large diameter 5.75" (146 mm) OD, was designed for large diameter core sampling from hard, to extremely soft and clayey formations, using a wide range of drilling methods. It is available in usable lengths of 5ft (1.5m) and 10ft (3 m) sections.

This extremely versatile S Geobor system can be used as a double or triple core barrel to retrieve 4" (101mm) core sample, large diameter (100mm) shelby tube sampling, non core drilling, and water loss / lugeon testing. Water, fluid mud or air can be used as the flushing medium. S Geobor can be adapted to almost all soil and rock situation using different types and shapes of drill bit.

Size Hole (mm) Core (mm)
Geobor S 146 Triple Tube Core Barrel 146 102
Geobor S 146 Triple Tube Core Barrel 176 132

Geobor S 146 Wireline Triple Tube Core Barrel Applications Methods:
