S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
Specifications
Brand Name :
ROSCHEN
Model Number :
5 - 8 working days
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
99 - 999
Payment Terms :
T/T,Western Union
Supply Ability :
2000000 pcs
Delivery Time :
5 - 8 working days
Packaging Details :
poly wooden box
China :
China rock core barrels
Metric :
Bristish Metric Core Barrel
Core Barrel Assy :
Triple tube core barrel assembly
Conventional Series :
CONVENTIONAL DOUBLE TUBE CORE BARRELS
Kelly Box :
130*130 ,150*150,200*200 or as required
Item No :
Drilling and Chipping Solid Rock
Process :
Heated Treatment
Core Barrels :
Boart Longyear Core Barrel
Thickness :
16~30mm
Components :
Core barrel head, inner tube, outer tube, core lifter, core lifter case, etc.
Use :
rock core barrel
Model No :
Impregnated Diamond Core Bits
Exploration :
Australia Exploration
Size :
Various sizes available
Series :
HMLC Triple Tube Core Barrel
Description

S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel

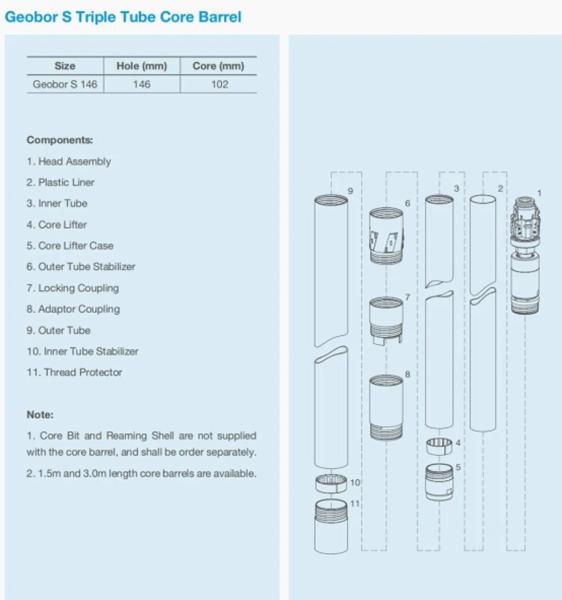

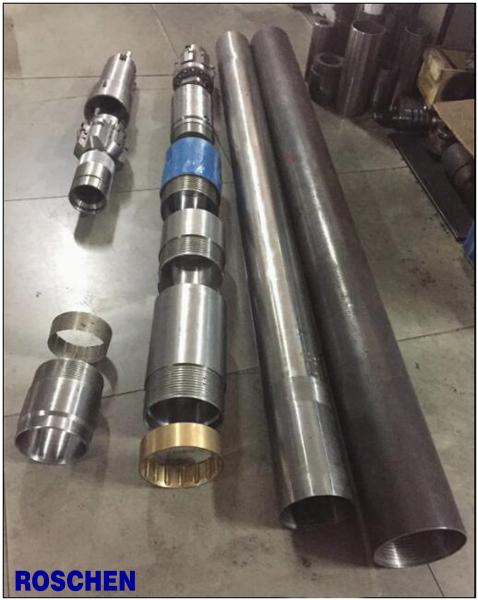

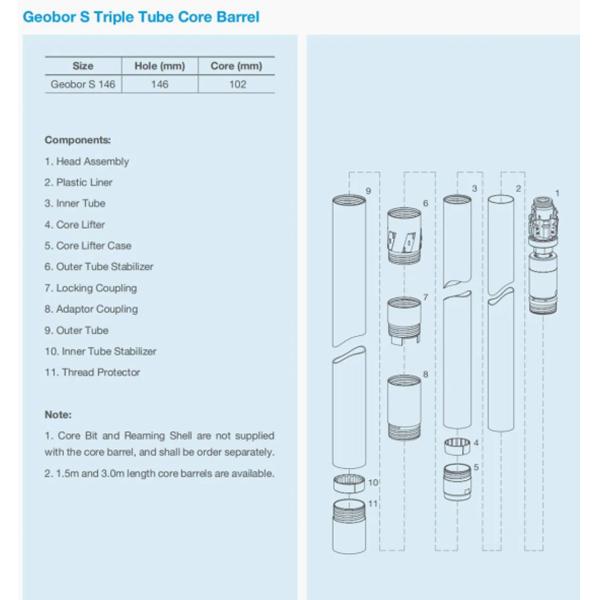

The S Geobor wireline core barrel with large diameter 5.75" (146 mm) OD, was designed for large diameter core sampling from hard, to extremely soft and clayey formations, using a wide range of drilling methods. It is available in usable lengths of 5ft (1.5m) and 10ft (3 m) sections.


This extremely versatile S Geobor system can be used as a double or triple core barrel to retrieve 4" (101mm) core sample, large diameter (100mm) shelby tube sampling, non core drilling, and water loss / lugeon testing. Water, fluid mud or air can be used as the flushing medium. S Geobor can be adapted to almost all soil and rock situation using different types and shapes of drill bit.




S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel


S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel


S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel





S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel










S-GEOBOR LARGE DIAMETER WIRELINE CORING SYSTEM Wireline Core Drilling Barrel
