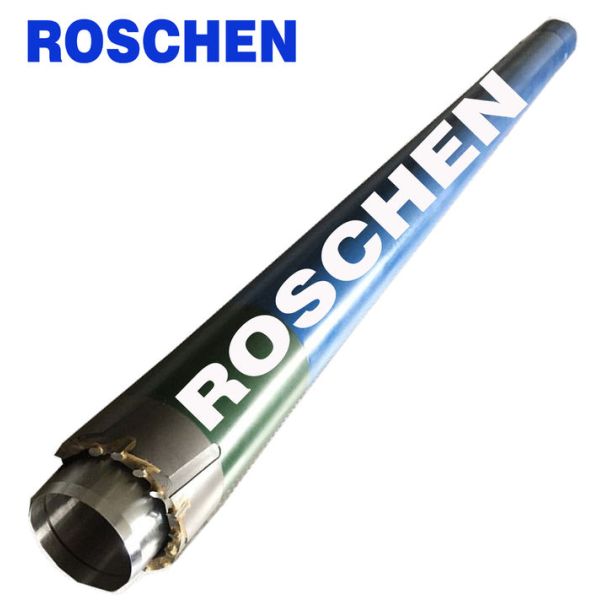

Mazier 101 Core Barrel for Geotechnical Investigation
Mazier 101 Core Barrel for Geotechnical Investigation
Mazier 101 Core Barrel for Geotechnical Investigation
Mazier 101 Core Barrel for Geotechnical Investigation
Mazier 101 Core Barrel for Geotechnical Investigation
Mazier 101 Core Barrel for Geotechnical Investigation
Specifications
Place of Origin :
CHINA
Brand Name :
ROSCHEN
Model Number :
mazier 86 101 116 131 146
Certification :
ISO
Packaging Details :
Wooden box
MOQ :
5 pcs
Price :
Negotiate
Supply Ability :
100000000 pcs
Description

Mazier 101 Core Barrel for Geotechnical Investigation

Basic Info.
Model NO. M101
Usage Metal Drilling, Masonry Drilling, Well Drilling
Material Alloy
Transport Package Poly Wooden Box
Specification M101
Trademark ROSCHEN
Origin China
HS Code 8431431000
Production Capacity 100000 Set/Year

Mazier 101 Core Barrel for Geotechnical Investigation
Model NO.: Mazier 101 core barrel
Certification: CE, ISO
Material: Alloy
Outer Diameter: 101mm
Trademark: ROSCHEN
Specification: BS ISO
HS Code: 8431432000
Customized: Customized
Usage: Geotechnical Investigation
Size: M101 Core Barrel
Core Diameter: 74mm
Transport Package: in Plywood Case
Origin: Germany

Product Description

Roschen automatic core barrel;

This technology takes large diameter (101 mm) core samples in 1.5 m length pieces.

Using triple wall core barrel permits removal of the sample as it is taken from the ground, guaranteed the undisturbed sample of the core. Thats why these samples in addition good for large diameter geotechnical laboratory tests beyond geological purposes.

The third, inner tube made of plastic and continuously cover the sample.

The wireline system allows that only the core barrel (second and third tubes) have pulled out to the surface after 1.5 m core drilling, while the outer tube (the first) works as a casing.

specification Mazier 101
Outer Diameter (mm) 101
Core diameter (mm) 74
Thread of the head CR50/BW/BWY/NW/NWY
Hole Area (cm²) 80.2
Core Area (cm²) 43
Recommended Drill Rod CR50/BW/BWY/NW/NWY
Recommended Casing M116

Size Available:

B76 core barrel, B86 core barrle, B101 core barrel, B131 core barrel, B146 core barrel
BQ core barrel, NQ core barrel, HQ core barrel PQ core barrrel, NQ3 core barrel, HQ3 core barrel, PQ3 core barrel
TT-46 core barrel TT56 core barrel
T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel
T6-76 core barrel T6-86 core barrel T6-101 core barrel T6-116 core barrel T6-131 core barrel T6-146 core barrel
T6S-76, T6S-86, T6s-101, T6s-131,T6S-146 core barrel
NMLC core barrel, HMLC core barrel
HWF core barrel, PWF core barrel
NWG core barrel, HWG core barrel
LTK48 core barrel, LTK60 core barrel
Mazier core barrel, M101 core barrel
412 F core barrel
