Specifications
Supply Ability :
100000000 set
MOQ :
5 pcs
Certification :
ISO
Packaging Details :
Wooden box
Price :
Negotiate
Brand Name :
ROSCHEN
Model Number :
mazier 86 101 116 131 146
Place of Origin :
CHINA
Description

86 101 116 131 Mazier Soil Sampler Collection Drilling Equipment

Mazier Core Barrel Basic Info.
Model NO. 86 101 116 131 146 Mazier Core Barrel
Certification ISO
Outer Diameter 86mm 101mm 116mm 131mm 146mm
Feature Obtaining Undisturbed Core Samples
Length 1.5m, 3.0 m
Standard International Standard
Transport Package in Plywood Case
Specification 86 101 116 131 146
Trademark ROSCHEN
HS Code 8431432000
Production Capacity 50 Sets/Month


86 101 116 131 Mazier Soil Sampler Collection Drilling Equipment

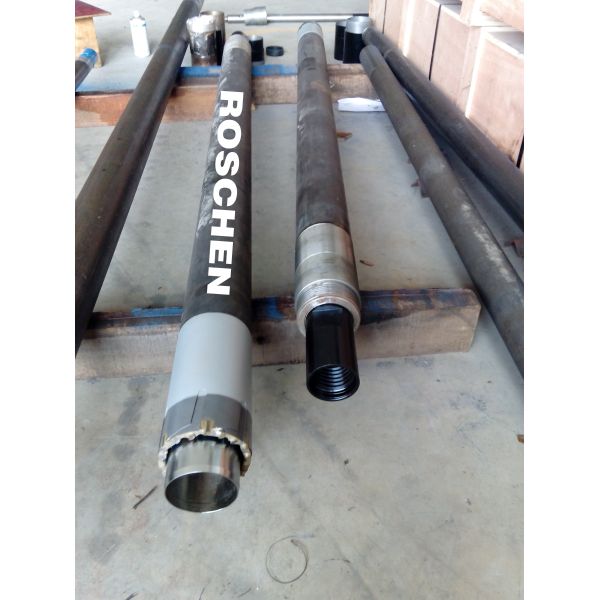

Mazier automatic core barrel;

The Automatic Mazier Core Barrel is designed for obtaining undisturbed core samples in very soft soils, such as sands, silts and marls.

A PVC coreliner is used inside the inner tube to retain the core, and a ''Basket'' catcher can be used to prevent soft materials from slipping out. It is available in 86mm, 101mm, 116mm, 131mm, 146mm hole diameter and can be used in conjunction with T2 series and T6 series core barrels which are more suitable for hard rocks.

Using triple wall core barrel permits removal of the sample as it is taken from the ground, guaranteed the undisturbed sample of the core. Thats why these samples in addition good for large diameter geotechnical laboratory tests beyond geological purposes.

Mazier Core Barrel Size
Size Hole Dia.(mm) Core Dia.(mm)
86 86 62
101 101 71.5
116 116 83
131 131 99
146 146 113
