Specifications
Brand Name :
Dingzhi
Model Number :
DZ-TPEE55D
Certification :
ISO,Reach
Place of Origin :
China
MOQ :
25kg
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
700Tons/ Month
Delivery Time :
3-5 working days
Packaging Details :
Waterproof bag, 25KG per bag
Description

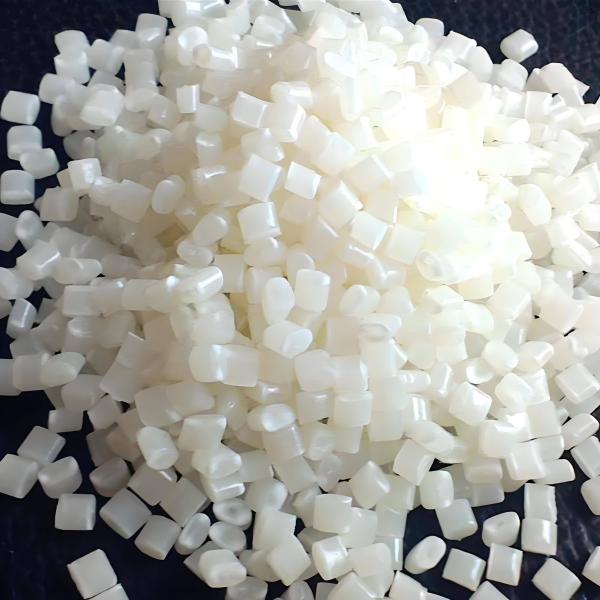

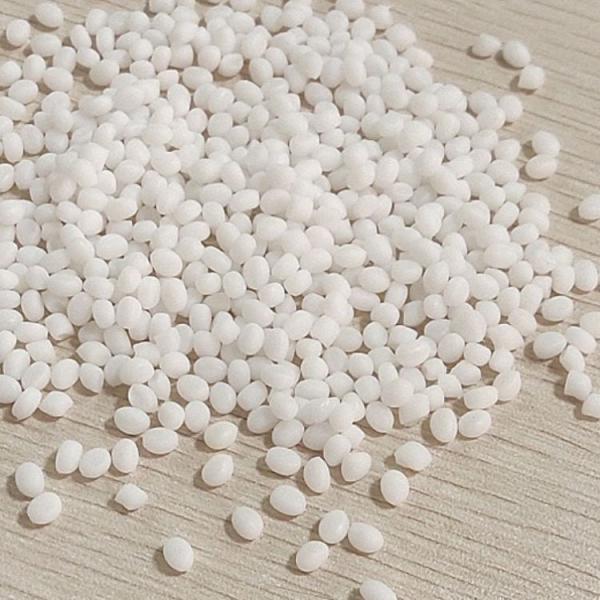

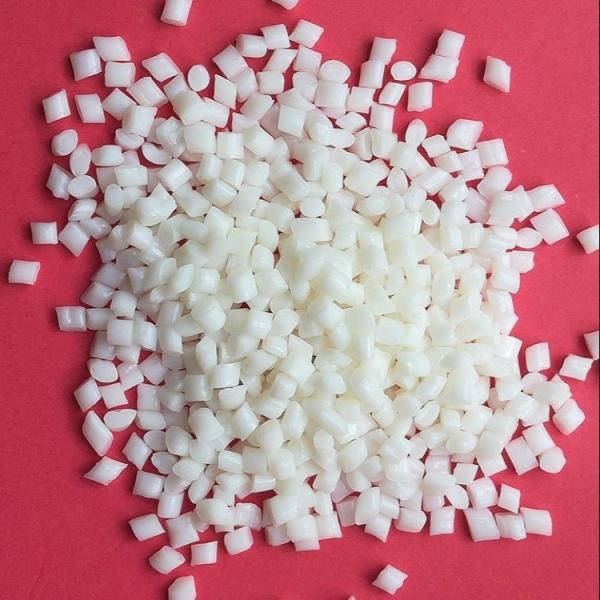

TPEE Raw Material For Car Industrial Use Exceptional High-Temperature Resistance Superior Flex Fatigue Resistance Thermoplastic Polyester Elastomer

Features:

exceptional high-temperature resistance

superior flex fatigue resistance

good elastic recovery

broad low-temperature toughness

excellent oil and chemical resistance

Applications:

TPEE material bridges the performance gap between rubber, engineering plastics, and general-purpose TPEs. It is particularly well-suited for applications requiring high temperatures, dynamic stresses (repeated bending and twisting), and oily environments, playing a crucial role in the automotive industry.

Automotive Industry: This is the largest application market.

Various dust covers and boots (constant velocity joint dust covers, shock absorber dust covers, steering rack dust covers, ball joint dust covers)

Air lines, vacuum brake lines, turbocharger lines, fuel lines (inner or outer layers)

Seals (oil seals, air seals), gaskets

Interior components (parts requiring a soft touch)

Airbag cover materials

Electronic appliances:

Wire and cable jackets (requires heat resistance, oil resistance, flame retardancy, and flexibility)

Connector seals, plug jackets

Mobile phone antenna covers Adhesives, buttons

Industrial products:

Hydraulic hoses, pneumatic hoses

Transmission belts, timing belt tooth surface materials

Sealing strips, gaskets

Industrial hoses, bellows

Sports equipment handle rubber coating

Consumer products:

Sports equipment (ski boot buckles, carabiners, bicycle grips, racket handles)

Shoe materials (sole and upper materials, especially those requiring high elasticity and low-temperature toughness)

Tool handles (providing shock absorption and a comfortable grip)

Personal care products (toothbrush handle rubber coating)

Datasheet:

Test Items Test method Test Unit Test Results
Malt Index ISO 1133 g/10min 28/230℃/2.16KG
Flexural modulus ISO 178 Mpa 220
Tensile strength ISO 527 Mpa 40
5% Tensile strength ISO 527 Mpa 8.5
10%Tensile strength ISO 527 Mpa 12.5
50%Tensile strength ISO 527 Mpa 16
Breaking elongation ISO 527 % 650
Hardness, 1S ISO R 868 D 58
Hardness, 15S ISO R 868 D 54
Izod notched impact(+23) ISO 180 KJ/㎡ NB
Izod notched impact(-30) ISO 180 KJ/㎡ NB
Malt Temperature(20/min) ISO 11357 215
UL Flame retartdant level ,1.60mm UL94 class HB
Water absorption,24h ISO 62 % 0.5
Shrinkage rate ISO 294 % 1.6
Production Process:
Drying material requirements: Please dry at 100-110℃ for 3-4 hours;
Injection molding temperature:
Melt temperature: 215 to 240℃
Barrel temperature:225 to 240℃
Die temperature:230 to 245℃
Mold temperature: 40 to 70 ℃
Pressure: 75-110 Pa
