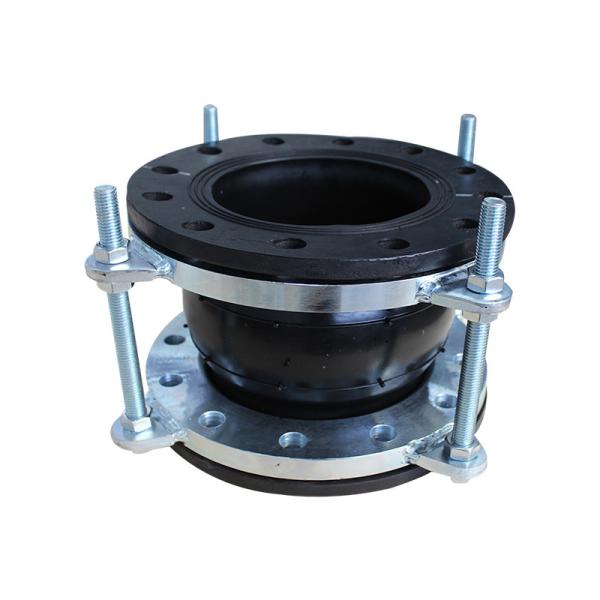

DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator
DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator
DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator
DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator
Specifications
Brand Name :
Lianghe
Model Number :
KDTF
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 Set
Price :
$150-$208 set
Payment Terms :
T/T, D/A, D/P, Western Union, MoneyGram, L/C
Supply Ability :
5000 set per month
Delivery Time :
7-15 work days
Packaging Details :
plastic film+wooden case
Product name :
DN150 Full Face Sealed EPDM Rubber Expansion Joint
Nominal size :
DN15 - DN4000mm
Flange Standard :
DIN, ANSI, BS, ISO, JIS, EN 1092
Material of flange :
Carbon steel, Stainless steel 304,316 etc.
Manufacturer :
Yes
Drawing :
Offer
Applicable media :
Air, Water, Oil, Weak Acid and Alkali, Juice etc.
Description

DN150 Full Face Sealed EPDM Rubber Expansion Joint with Carbon Steel Flanges PN16

A Full Face Sealed Rubber Expansion Joint is a flexible pipe connector designed to absorb movement, reduce vibration, and compensate for misalignment in piping systems.

Unlike standard rubber joints, this type features a full-face sealing flange, meaning the rubber sealing surface extends over the entire contact face of the flange. This provides enhanced sealing performance, especially in high-pressure, vacuum, or corrosive environments.

DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator

Key Features:


Full Face Sealing Design: The rubber flange covers the entire metal flange face, ensuring tight, leak-proof sealing across the entire surface.

High Flexibility: Capable of absorbing axial, lateral, and angular displacements in pipelines.

Corrosion and Wear Resistance: Available in EPDM, NBR, Neoprene, or other rubber materials suitable for different media and temperatures.

Vibration and Noise Reduction: Effectively isolates vibration and dampens noise transmission in mechanical systems.

Vacuum-Resistant (Optional): Some models can be designed for partial or full vacuum conditions.

Technical Parameters (Typical):

Item Specification
Nominal diameter DN32–DN3000 (or customized)
Working pressure PN10 / PN16 / ANSI 150 / JIS 10K
Working temperature -20°C to +120°C (depends on rubber type)
Rubber material options EPDM, NBR, Neoprene, NR, FKM, etc.
Flange material Carbon Steel, Stainless Steel, Galvanized Steel

DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator

NO Name Material Remarks
1 Pressurized ring Steel wire strand Prevent pressure bearing deformation from being pulled off
2 Inner rubber layer NR,NBR,EPDM,FKM,Neoprene Select different materials according to the media
3 Outer rubber layer NR,NBR,EPDM,FKM,Neoprene
4 Flange Stainless steel,carbon steel,ductile iron Choose different materials according to your requirements
5 Frame Nylon cord fabric the density and number of layers determine the pressure

Advantages over Standard Rubber Joints:

1. Better sealing against flange faces (especially on uneven or corroded flanges)

2. Reduced risk of media leakage in high-pressure or critical applications

3. Enhanced durability and reliability

DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator

Applications:

  • Chemical plants
  • Water treatment systems
  • HVAC systems
  • Power plants
  • Marine and offshore piping
  • Food and pharmaceutical pipelines (using food-grade rubber)

DN150mm EPDM Rubber Expansion Joint PN16 Carbon Steel Flange Compensator
