Specifications
Application :
DTH, Top Hammer Bits
Feature :
Precision-Formed Profile
Button Profile :
Spherical, Ballistic, Conical
Compatible Machines :
Jasco, Dorey, King Pin
Type :
Diamond Grinding Pin
Function :
Carbide Button Regrinding
Shank :
8 mm / 9 mm Round Shank
Coolant Channels :
Optional
Description

Diamond Grinding Pin for Button Bits

Brighttop Global Co., Ltd. supplies high-quality diamond grinding pins designed for reconditioning worn carbide buttons on rock drilling bits. The precision-formed grinding profile helps restore the original shape of the carbide button while controlling material removal and maintaining consistent grinding results.

Our grinding pins are available in different diameters, button profiles and shank connections to match various button bit grinding machines. Suitable options are available for spherical, semi-ballistic, full-ballistic and conical carbide buttons.

Depending on the grinding pin design, the tool can regrind the carbide button only or grind both the carbide button and the surrounding steel body. Optional coolant channels help improve cooling and remove grinding debris during operation.

These grinding pins are suitable for maintaining DTH bits, top hammer bits, threaded button bits and tapered button bits used in mining, quarrying, tunneling and construction drilling.

Selecting a grinding pin that closely matches the diameter and profile of the carbide button helps reduce unnecessary material removal and preserve the original button geometry.

Shaft styles: Drive arrangements are standardized to suit the most common grinding machines:
Picture Type Main Structure Commonly Compatible Equipment Key Features

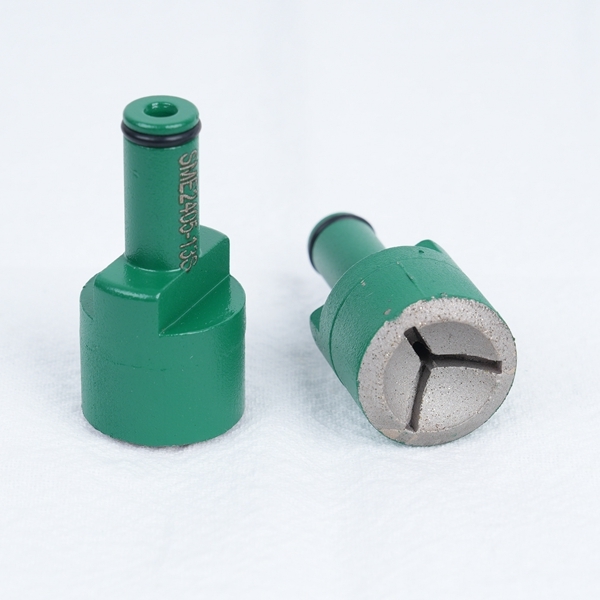

8mm 9mm Round Shank Diamond Grinding Pin For Button Bits Diamond Wing (Shoulder) Drive 8 mm round shank with a drive shoulder or wing, usually fitted with an O-ring Jasco, Dorey, KING PIN and similar grinding machines Transfers torque through the shoulder for stable positioning; one of the most common universal connections
8mm 9mm Round Shank Diamond Grinding Pin For Button Bits Diamond San-Drive / Sancup 9 mm shank with a dedicated positioning structure Sanroc, Sanbee and similar systems Mainly designed for SV type grinding machines; compatibility cannot be determined by shank diameter alone
8mm 9mm Round Shank Diamond Grinding Pin For Button Bits Diamond Plain Shaft 8 mm or 9 mm cylindrical straight shaft Grinding machines using collets, drill chucks or universal chucks Simple structure and relatively wide compatibility, but the chuck must clamp the shaft securely to transmit torque
8mm 9mm Round Shank Diamond Grinding Pin For Button Bits Diamond Atlas Copco Teroc 55-Drive Dedicated 55-drive connection structure Atlas Copco / Teroc 55 grinding systems A dedicated connection with fast installation and accurate positioning; cannot directly replace a standard 8 mm or 9 mm shaft
8mm 9mm Round Shank Diamond Grinding Pin For Button Bits Diamond Hex-Drive Internal hexagonal socket or dedicated hex connection inside the cup shank CME series grinding machines The hexagonal surfaces transmit torque directly and reduce slipping; normally requires a matching CME chuck

Key Features

  • Diamond abrasive grinding surface
  • Accurate carbide button profile restoration
  • Multiple diameters and profiles available
  • Suitable for wet grinding applications
  • Different shank connections available
  • Designed for DTH and top hammer button bits
  • OEM and customized specifications supported
