Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling
Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling
Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling
Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling
Specifications
Thread Type :
R22, R25, R28, R32, R38
Button Material :
Tungsten Carbide
Bit Diameter :
33-102 mm
Material :
Alloy Steel
Gauge Button Angle :
30°-40°
Application :
Top Hammer Rock Drilling
Packing :
Wood Box and Pallet
Feature :
Wear Resistant
Description
ROPE STANDARD THREAD BUTTON BITS
Brighttop Global Co., Ltd. is a professional manufacturer of standard threaded button bits engineered for top hammer rock drilling. Our bits perform reliably in hard rock conditions, widely applied in mining, quarry and tunnel drilling operations.
Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling
Product Specifications
S/N Bit Dia. (mm) Thread Button Size Gauge Button Angle Flushing Holes Side (pcs) Flushing Holes Front (pcs) Weight (kg)
1 33 R22 5xφ7mm+2xφ7mm 35° 2 1 0.4
2 35 R25 5xφ8mm+2xφ7mm 35° 2 1 0.4
3 38 R25 5xφ8mm+2xφ7mm 35° 1 2 0.5
4 41 R25 5xφ9mm+2xφ8mm 35° 1 2 0.55
5 41 R28 5xφ9mm+2xφ8mm 35° 1 2 0.55
6 41 R32 5xφ9mm+2xφ9mm 35° 2 1 0.55
7 43 R32 6xφ9mm+3xφ8mm 30° 1 2 0.67
8 45 R28 6xφ10mm+3xφ8mm 35° 3 1 0.8
9 45 R32 6xφ10mm+3xφ8mm 35° 2 1 0.8
10 45 R32 6xφ9mm+3xφ8mm 30° 1 3 0.8
11 45 R32 6xφ10mm+3xφ8mm 35° 1 3 0.8
12 48 R32 6xφ10mm+3xφ9mm 35° 1 3 0.9
13 51 R32 6xφ10mm+3xφ9mm 35° 1 3 1.1
14 57 R32 6xφ11mm+3xφ10mm 35° - 3 1.3
15 64 R32 6xφ12mm+3xφ11mm 40° 2 1 1.6
16 64 R32 8xφ10mm+4xφ10mm 35° 2 2 1.6
17 64 R38 6xφ12mm+3xφ11mm 35° 2 1 1.6
18 76 R32 6xφ12mm+6xφ12mm 35° 1 2 2.7
19 76 R32 8xφ12mm+4xφ12mm 35° 2 2 2.7
20 76 R38 8xφ12mm+4xφ12mm 35° 2 2 2.3
21 89 R32 8xφ13mm+5xφ12mm 35° - 3 2.9
22 89 R38 8xφ13mm+5xφ12mm 35° 2 2 3.3
23 102 R32 14xφ12mm+1xφ11mm 35° 2 3 3.5
Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling
Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling

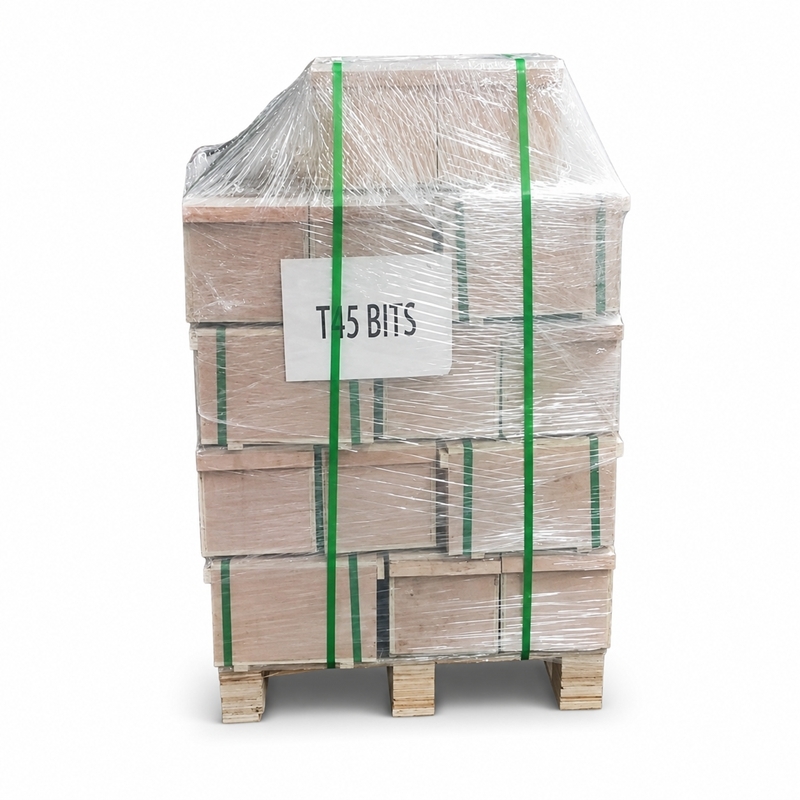

Packing Information
Wood Box+Pallet
Mining Rope Standard Thread Button Bits For Top Hammer Rock Drilling
