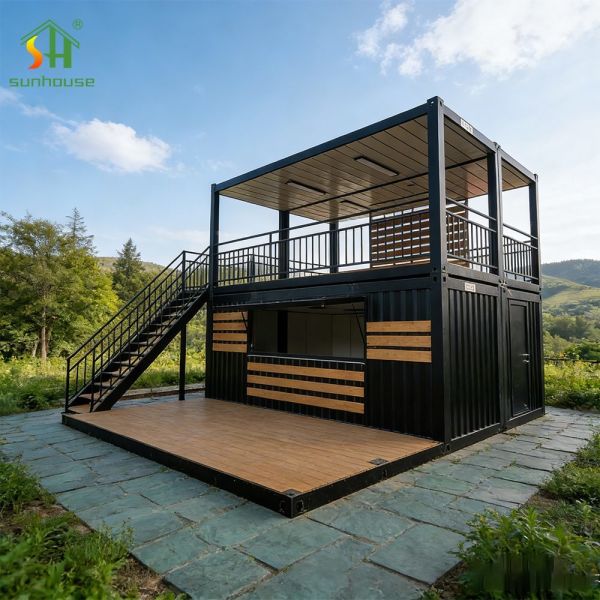

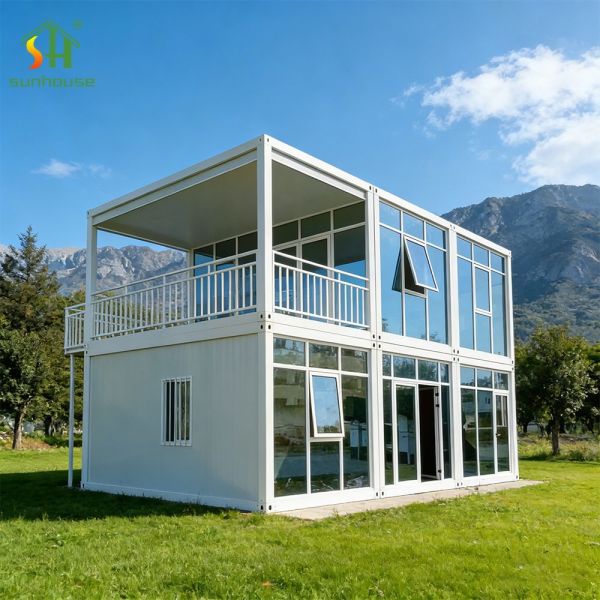

Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Specifications
Brand Name :
SUNHOUSE
Certification :
CE
Place of Origin :
Guangdong
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Product Type :
Single Story Modular Homes
Structure Frame :
Light steel frame structure
Wall System :
Thermal PU wall optional insulated sandwich panel optional
Layout Options :
2 bedroom 3 bedroom 4 bedroom optional
Electrical System :
Optional wiring lighting sockets distribution box network preparation
Storey Option :
Single storey two storey optional
Size Options :
Customizable modular configuration
Plumbing System :
Optional water supply drainage bathroom kitchen readiness
Description
Foldable Smart Modular Container Homes – Rapid Deployment Living Solutions
Our Foldable Smart Modular Container Homes offer the ideal combination of speed, comfort, and sustainability for modern project sites and mobile living needs. Built with high-strength light steel frames and premium insulated composite panels, these units ship in standard container sizes and unfold quickly on-site into spacious 2-3 bedroom family residences. Perfect for construction contractors, oil & gas operations, disaster recovery, tourism camps, and temporary communities, they serve as a superior alternative to traditional builds with excellent thermal performance and multi-cycle reusability.
Product Highlights
Featuring innovative foldable expansion technology, these homes transform from transport mode to fully functional living space in just hours. With clear functional zoning—including private bedrooms, open-plan living/kitchen areas, and dry-wet separated bathrooms—they support single or double-storey stacking and perform reliably across diverse climate conditions.
Core Advantages
  • Rapid Foldable Deployment: Ships in standard container dimensions and fully expands on-site in 4-8 hours, significantly shortening project timelines.
  • Superior Thermal Performance: 60-120mm high-density rock wool/PU panels provide excellent insulation for -50°C to +45°C climates, reducing energy consumption.
  • High-Strength Structure: Hot-dip galvanized light steel frame delivers wind resistance up to 120km/h and snow load capacity over 150kg/m².
  • Flexible Layout Options: Customizable 2-3 bedroom configurations with living, dining, bedroom, and bathroom areas; stackable for multi-level setups.
  • Smart Pre-Installed Systems: Pre-wired electrical, solar-ready interfaces, AC provisions, and smart home compatibility.
  • Minimal Foundation Requirements: Only needs simple concrete piers or steel bases, lowering site preparation costs and complexity.
  • Extended Durability: Designed for 25-60 years of service life with normal maintenance and supports multiple relocations.
Technical Specifications
Parameter Value
Product Type Foldable Smart Modular Container Home (2-3 Bedroom)
Transport Dimensions (Standard) 6.1m(L) × 2.4m(W) × 2.6m(H)
Expanded Dimensions 6.1-7.2m(L) × 6.0-7.0m(W) × 2.6m(H) – Approx. 40-65㎡ usable area
Storey Options Single storey standard, double-storey stackable
Main Structure Hot-dip galvanized high-strength light steel frame (2.5-4.5mm)
Wall System 60-120mm rock wool/PU/EPS insulated sandwich panels
Roof & Flooring Waterproof insulated composite roof; fiber cement board + laminate flooring
Electrical System Pre-wired strong/weak current system with smart distribution box
Plumbing System Optional full pre-installed piping system
Wind/Snow Load Resistance Wind: 120km/h+; Snow: 150kg/m²+
Installation Time 4-8 hours per unit (6-person team)
Design Service Life 25-60 years (with regular maintenance)
Success Stories
Case 1: Middle East Oil Field Long-Term Camp
An international energy company required comfortable housing for expatriate technical staff and families.
Solution: Delivered 50 high-insulation 3-bedroom modular units.
Result: Full camp operational within 28 days, staff satisfaction increased by 40%, and all units were recovered and resold after project completion.
Case 2: Southeast Asia Resort Seasonal Housing
A resort needed flexible accommodation to handle peak and off-season demands.
Solution: Supplied landscape-designed foldable modular homes with climate-adapted features.
Result: Rapid capacity expansion accelerated opening timelines, while off-season storage significantly reduced maintenance costs.
Key Applications
  • Large infrastructure and construction workforce family camps
  • Mining, oil & gas, and renewable energy site accommodations
  • Tourism resorts and homestay clusters
  • Post-disaster reconstruction and emergency housing
  • Government relocation and temporary community projects
  • Exhibitions, events, and large-scale activity accommodations
