Specifications
Battery Type :
LiFePO4
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong, China
Dimension (L*W*H) :
1000X1300X2199mm
Weight :
2850kg±100kg
Communication Port :
RS485, RS-232, CAN
Protection Class :
IP54
Grid connection :
Off grid, Hybrid grid, On grid
Cooling :
Liquid Cooling
System Rated Voltage :
832V DC (High Voltage Architecture)
Battery Chemistry :
LiFePO4 (Lithium Iron Phosphate)
Cell Technology :
Hithium 314Ah Grade A (8,500+ Cycles)
Inverter Integration :
Integrated 125kW Bi-directional PCS
Thermal Management :
Active Liquid Cooling (TMS)
Application Scenarios :
Factory Peak Shaving, EV Charging, Microgrid
Protection Rating :
IP54 Outdoor Rated All-weather Cabinet
Cycle Life :
8,500+ Cycles @ 0.5C/0.5C
Safety Standard :
Multi-tier BMS + Fire Suppression (Aerosol)
Certifications :
IEC 62619, CE, UN38.3, MSDS
MOQ :
1
Price :
$29,312-33,198
Description
Product descriptions from the supplier

1. 832V High Voltage: Maximum Efficiency Elevate your energy infrastructure with our 832V High Voltage LiFePO4 BESS. Compared to traditional low-voltage systems, our HV architecture significantly reduces current-related heat loss and improves overall Round-Trip Efficiency (RTE) by 3-5%. This means faster ROI and superior power stability for high-demand industrial loads.

2. Advanced Liquid Cooling & Grade A Cells Engineered with premium Hithium 314Ah cells, this system offers an extraordinary 8,500+ cycle life. The integrated Liquid Cooling (TMS) maintains the cell temperature difference within ±3°C, ensuring total thermal stability and safety, even under the 125kW high-power discharge required for factory peak shaving.

3. All-in-One Integrated Commercial Solution This is a true All-in-One BESS, integrating the 125kW PCS, BMS, EMS, and TMS into a single IP54-rated outdoor cabinet. Designed for rapid deployment by EPC contractors, it requires minimal site preparation and no indoor power room, making it the perfect choice for EV Charging Stations and Industrial Microgrids.

4. Industrial Grade Safety & Compliance Safety is non-negotiable. Our system features a multi-tier safety architecture, including real-time cell-level monitoring and an integrated Aerosol fire suppression system. Fully compliant with IEC 62619 and CE standards, providing global reliability for mission-critical power applications.

832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
About this supplier

EXLIPORC was founded in 2017 and is located in Shen Zhen. We are specializing in selling lithium battery and supply the whole lithium battery solution to customers, we have professional teams who focus on quality control & inspection company running and after-sales service. In order to supply the good products and services, we have built a modernized high quality management system which is in strict accordance with international standards. The battery models are widely used in Energy storage systems, commercial and industrial area, E-bike, E-scooters, RVs, golf carts, forklifts, and other transportation tool.
Since its foundation, EXLIPORC has always adhered to "quality of products in order to survive, credibility and development services" business purposes. We are doing everything to offer our customers with good services and good product, We promise that we will be responsible all the way to end once our services begin.
Most of our models have gained international certification such as UL, TUV-CB, CE, ROHS, FCC, IEC62619, EMC, UN38.3 and MSDS. We are always working to improve our existing products and create new models according to customer's request. We would like to provide you high-quality products at very reasonable price with our heart and soul service. Our Mission is Live Green, Save Green, We are looking forward to establishing long-term successful business relationships with our clients all around the world.

Company overview
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
Competitive advantages
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
Factory profile
832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah

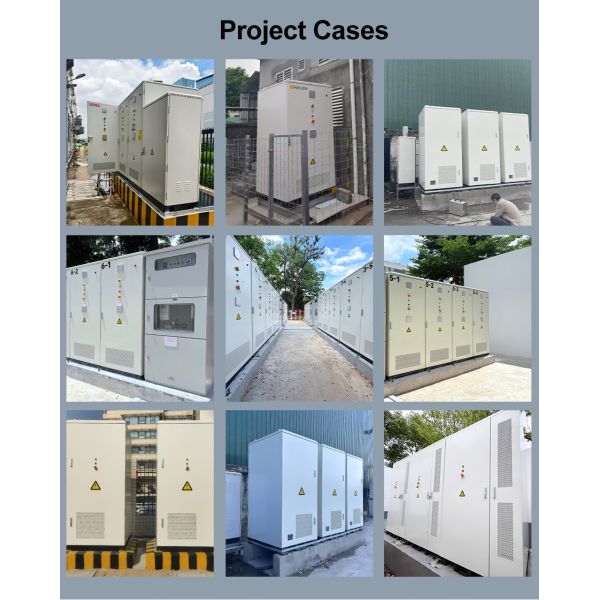

Project Cases
