Specifications
Battery Type :
Lithium Ion
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong, China
Dimension (L*W*H) :
1000X1300X2199mm
Weight :
2850kg±100kg
Communication Port :
RS-232, RS485, CAN
Protection Class :
IP54
Grid connection :
Off grid, Hybrid grid, On grid
Cooling :
Liquid Cooling
System Architecture :

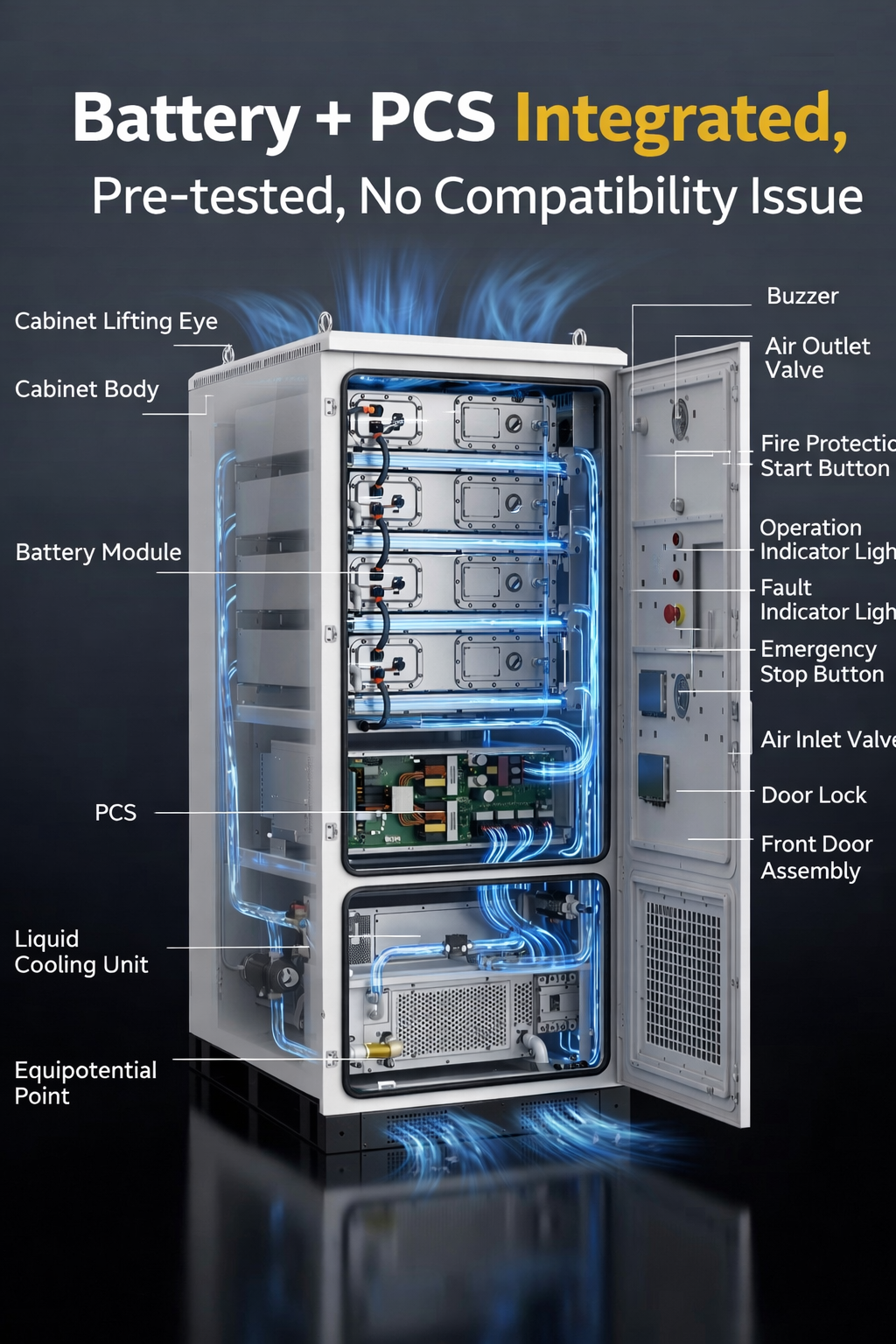

All-in-One Integrated (PCS+BMS+EMS+TMS)
Battery Cell Technology :
Hithium 314Ah Grade A (8,500+ Cycles)
Thermal Management :
Active Liquid Cooling (Delta T < 3°C)
PCS Integration :
Integrated 125kW Bi-directional PCS
Protection Rating :
IP54 Outdoor Rated All-weather Cabinet
Cycle Life & Warranty :
8,500+ Cycles (15 Years Design Life)
Application Scenarios :

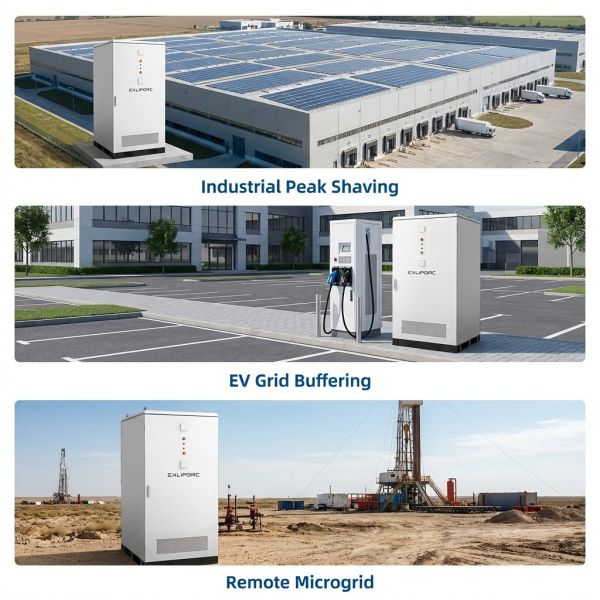

Factory Peak Shaving, EV Charging, Microgrid
Safety System :
Multi-tier BMS + Fire Suppression (Aerosol)
Anti-corrosion Level :
C4 / C5 Marine Grade Coating Optional
Standard Compliance :
IEC 62619, CE, UN38.3, MSDS, UL Compatible
MOQ :
1
Price :
$29,300-33,220
Description
Product descriptions from the supplier

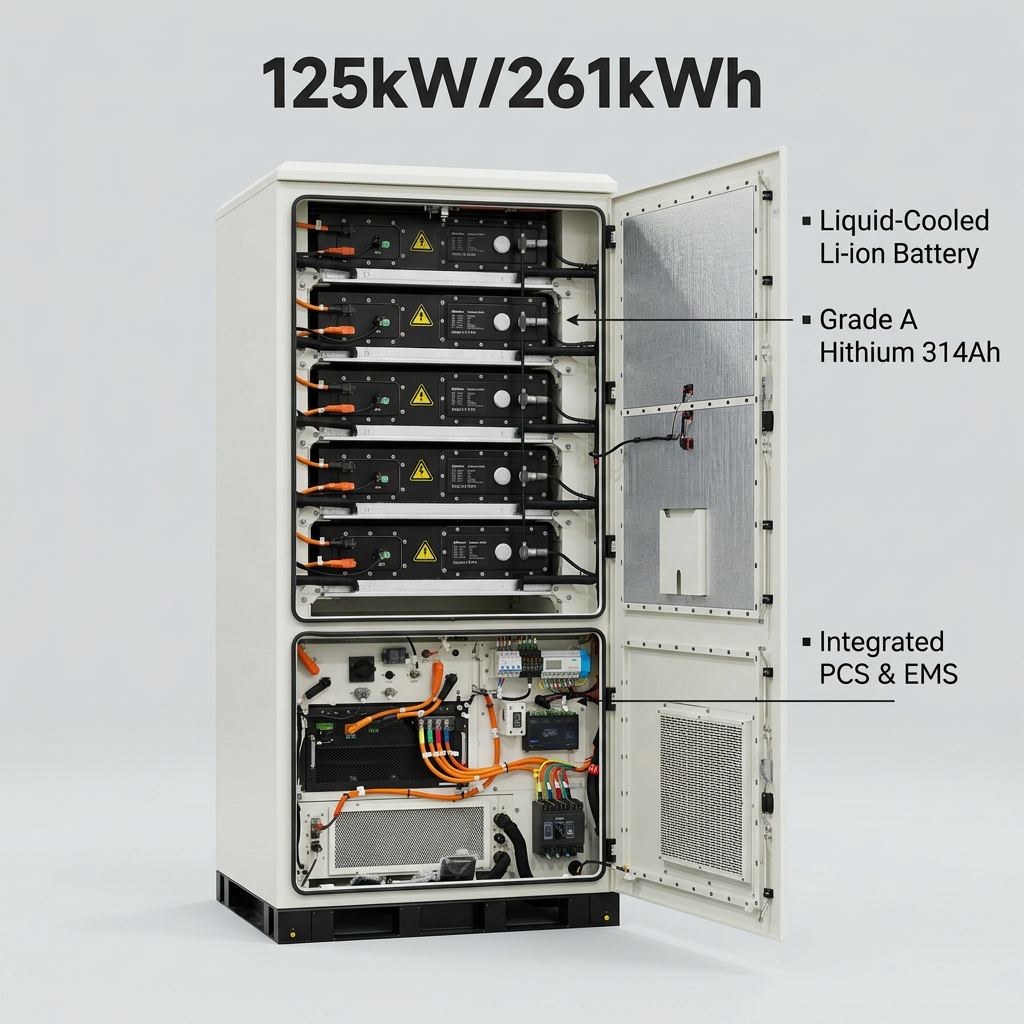

Commercial & Industrial Energy Storage Solution Designed for EPC contractors and industrial energy projects, this 125kW / 261kWh liquid-cooled BESS integrates battery, PCS, BMS, EMS, fire protection, and thermal management into one compact outdoor cabinet.

Built on a high-voltage 832V platform, the system delivers stable 3-phase 400V output with ≤100ms switching time, ensuring seamless operation in both grid-connected and off-grid scenarios.

The advanced liquid cooling system provides precise temperature control, improving system efficiency and extending battery life to over 8500 cycles. With wide operating temperature from -20°C to 50°C, it is suitable for demanding environments.

Safety is engineered at system level. Equipped with multi-level fire detection, automatic suppression, and water fire interface, the system ensures reliable protection for industrial applications.

Supports active/reactive power control, harmonic suppression (THD <2%), and black start capability, making it ideal for peak shaving, solar integration, backup power, and microgrid projects.

Pre-installed and factory tested, this all-in-one design reduces on-site installation time and simplifies project deployment.

For industrial and commercial use only. Not designed for residential applications.
