Specifications
Battery Type :
Lithium Ion
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong, China
Dimension (L*W*H) :
1000X1300X2199mm
Weight :
2850kg±100kg
Communication Port :
CAN, RS485, RS-232
Protection Class :
IP54
Grid connection :
Off grid, Hybrid grid, On grid
Cooling :
Liquid Cooling
Product name :
Commercial & Industrial Liquid-Cooling Energy Storage
Battery type :
Lithium Iron Phosphate (LiFePO4)
Cell Brand & Type :
Hithium 314Ah Grade A Cells
Cycle life :
≥8500 cycles@25℃±2℃,0.5P,70%SOH
Cooling Method :
Smart Liquid Cooling (TMS Control)
Power Capacity :
125kW / 261.12kWh (Customizable)
Application Scenario :
Peak Shaving, EV Charging, Microgrid
BMS System :
3-Tier Intelligent Cloud BMS
Protection Rating :
IP54 Outdoor Cabinet (Anti-Corrosion C4)
Certification :
CE / UN38.3 / MSDS / IEC62477-1
MOQ :
1
Price :
$29,900-33,199
Description
Product descriptions from the supplier

Commercial & Industrial Energy Storage Solution Designed for EPC contractors and industrial energy projects, this 125kW / 261kWh liquid-cooled BESS integrates battery, PCS, BMS, EMS, fire protection, and thermal management into one compact outdoor cabinet.

Powered by Hithium 314Ah Cells: Ensures 11% higher energy density and 8,500+ cycle life.

Advanced Liquid Cooling TMS: Precise temperature difference control within 3C for maximum safety.

Modular All-in-One Design: Pre-assembled and tested for fast plug-and-play installation in factory/oil fields.

Built on a high-voltage 832V platform, the system delivers stable 3-phase 400V output with ≤100ms switching time, ensuring seamless operation in both grid-connected and off-grid scenarios.

The advanced liquid cooling system provides precise temperature control, improving system efficiency and extending battery life to over 8500 cycles. With wide operating temperature from -20ᄚC to 50ᄚC, it is suitable for demanding environments.

Safety is engineered at system level. Equipped with multi-level fire detection, automatic suppression, and water fire interface, the system ensures reliable protection for industrial applications.

Supports active/reactive power control, harmonic suppression (THD <2%), and black start capability, making it ideal for peak shaving, solar integration, backup power, and microgrid projects.

Pre-installed and factory tested, this all-in-one design reduces on-site installation time and simplifies project deployment.

For industrial and commercial use only. Not designed for residential applications.

Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
About this supplier

EXLIPORC was founded in 2017 and is located in Shen Zhen. We are specializing in selling lithium battery and supply the whole lithium battery solution to customers, we have professional teams who focus on quality control & inspection company running and after-sales service. In order to supply the good products and services, we have built a modernized high quality management system which is in strict accordance with international standards. The battery models are widely used in Energy storage systems, commercial and industrial area, E-bike, E-scooters, RVs, golf carts, forklifts, and other transportation tool.
Since its foundation, EXLIPORC has always adhered to "quality of products in order to survive, credibility and development services" business purposes. We are doing everything to offer our customers with good services and good product, We promise that we will be responsible all the way to end once our services begin.
Most of our models have gained international certification such as UL, TUV-CB, CE, ROHS, FCC, IEC62619, EMC, UN38.3 and MSDS. We are always working to improve our existing products and create new models according to customer's request. We would like to provide you high-quality products at very reasonable price with our heart and soul service. Our Mission is Live Green, Save Green, We are looking forward to establishing long-term successful business relationships with our clients all around the world.

Company overview
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Competitive advantages
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving
Factory profile
Hithium Cell 125kW 261kWh Liquid Cooling BESS Hithium 314Ah 8500 Cycles Commercial Industrial ESS for Factory Peak Shaving

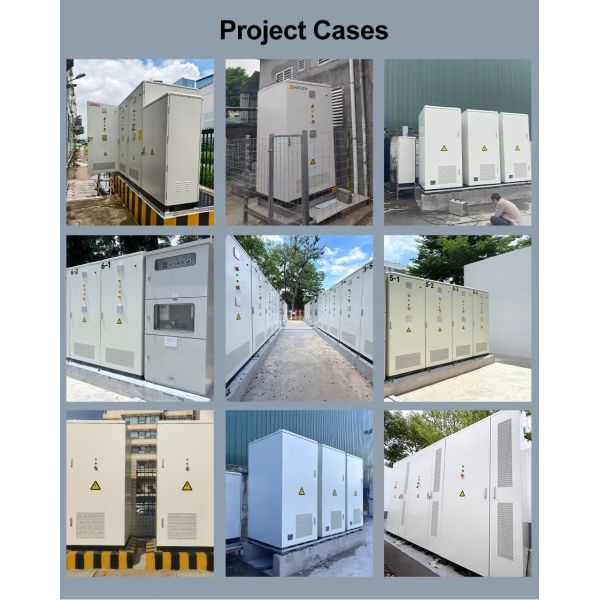

Project Case
