Specifications
Battery Type :
LiFePO4
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong, China
Dimension (L*W*H) :
1000X1300X2199mm
Weight :
2850kg±100kg
Communication Port :
CAN, RS485
Protection Class :
IP54
Grid connection :
Hybrid grid, On grid
Cooling :
Liquid Cooling
Product name :
All-in-One Outdoor Liquid-Cooled Energy Storage Cabinet

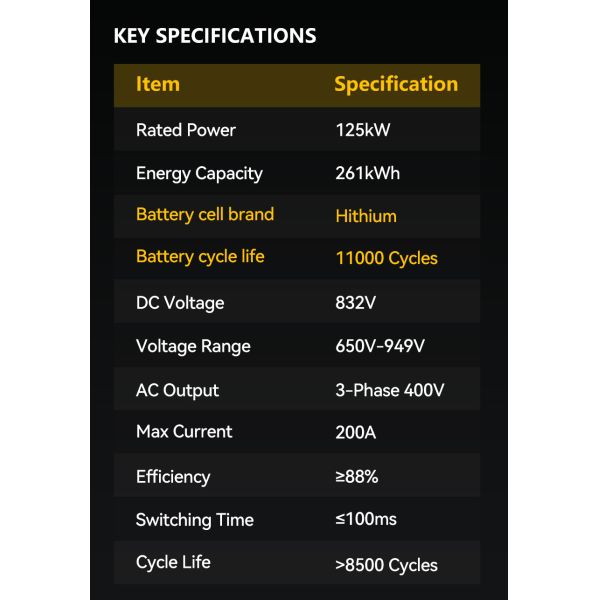

Series-parallel Mode :
1P260S
Nominal Voltage :
DC:832V
Rated Capacity :
314Ah
Rated Energy :
261.25kWh
Operating Voltage :
DC:650V~949V
Max Current :
200A (DC side)
Overall Efficiency :
≥88%@25℃±2℃,0.5P
Cycle Life :
≥8500 cycles@25℃±2℃,0.5P,70%SOH
Keywords :
Cabinet Energy Storage
MOQ :
1
Price :
€25,248.75-28,609.51
Description
Product descriptions from the supplier

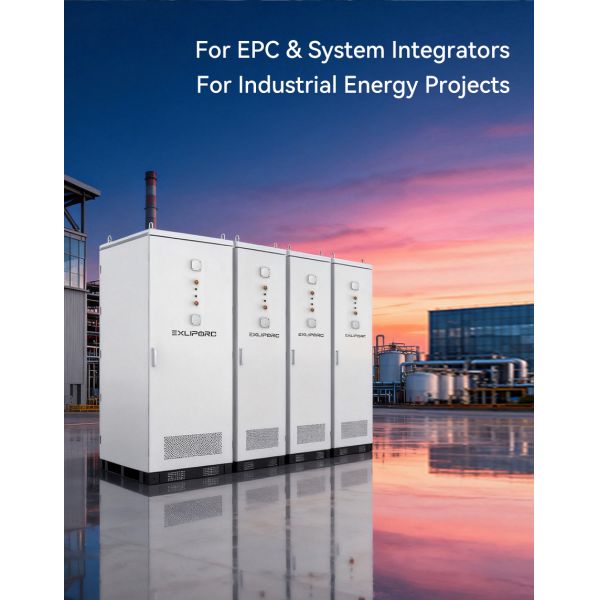

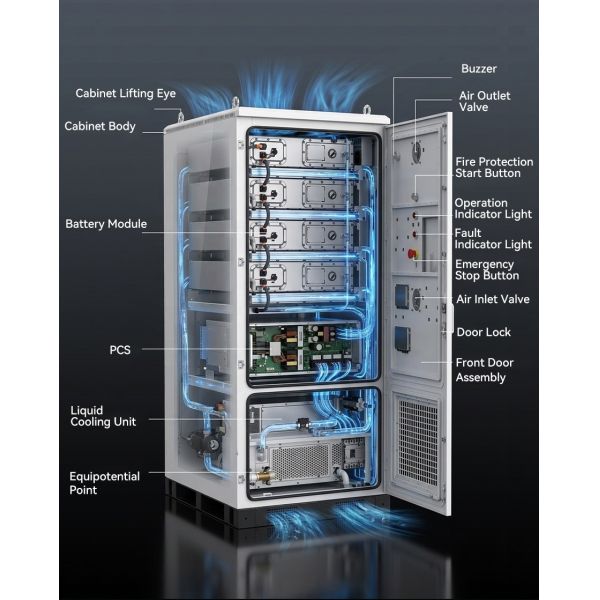

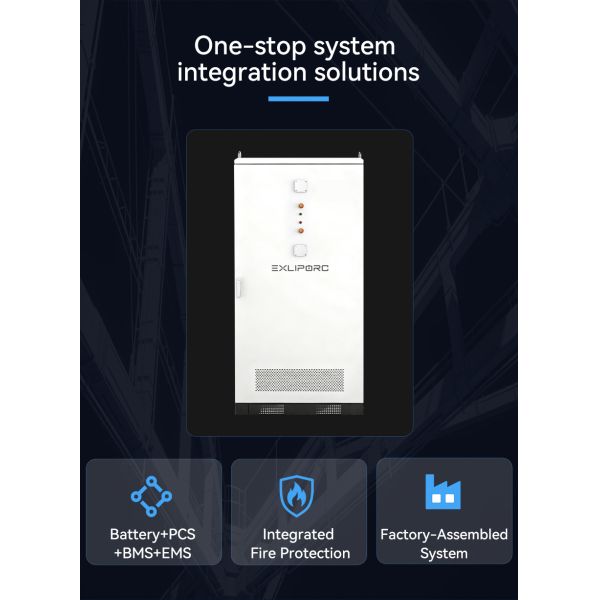

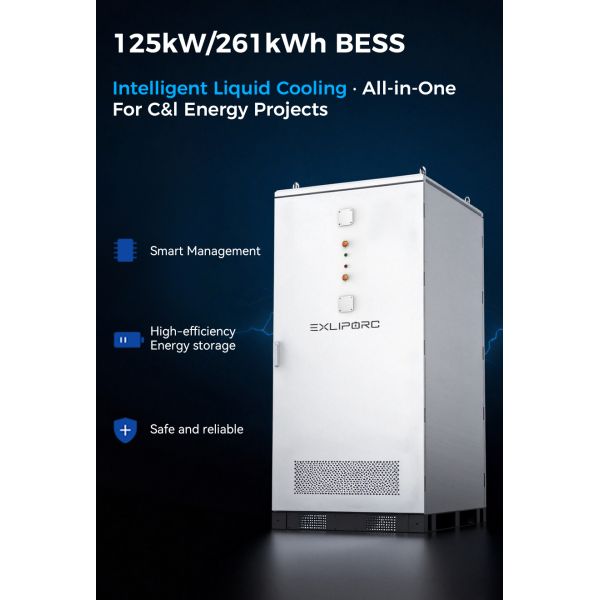

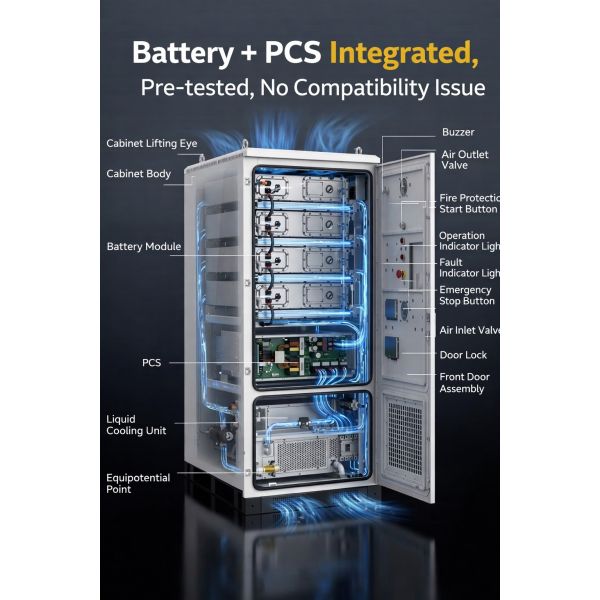

Commercial & Industrial Energy Storage Solution Designed for EPC contractors and industrial energy projects, this 125kW / 261kWh liquid-cooled BESS integrates battery, PCS, BMS, EMS, fire protection, and thermal management into one compact outdoor cabinet.

Built on a high-voltage 832V platform, the system delivers stable 3-phase 400V output with ≤100ms switching time, ensuring seamless operation in both grid-connected and off-grid scenarios.

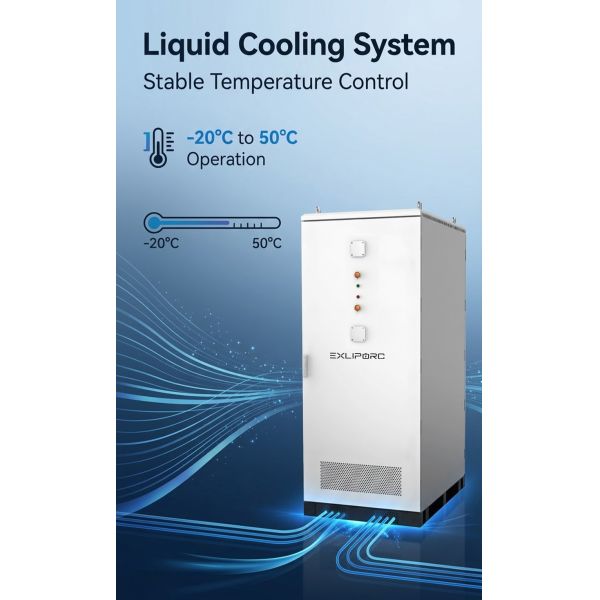

The advanced liquid cooling system provides precise temperature control, improving system efficiency and extending battery life to over 8500 cycles. With wide operating temperature from -20°C to 50°C, it is suitable for demanding environments.

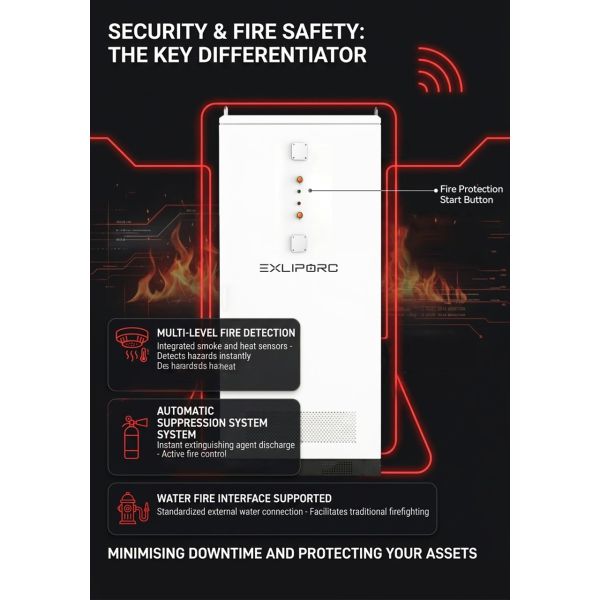

Safety is engineered at system level. Equipped with multi-level fire detection, automatic suppression, and water fire interface, the system ensures reliable protection for industrial applications.

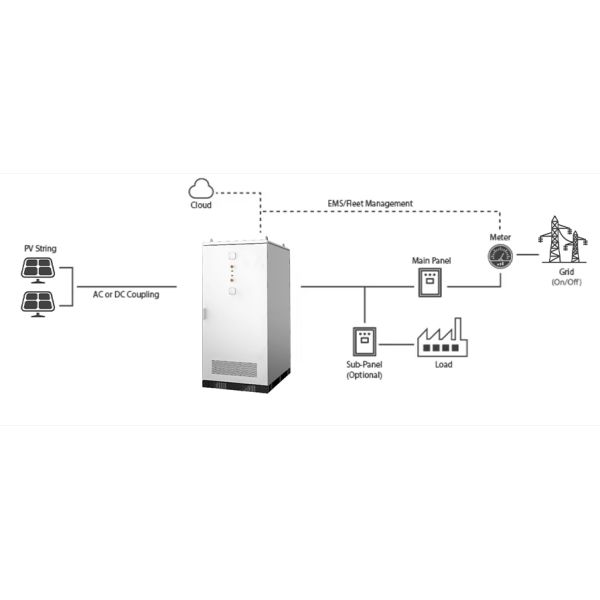

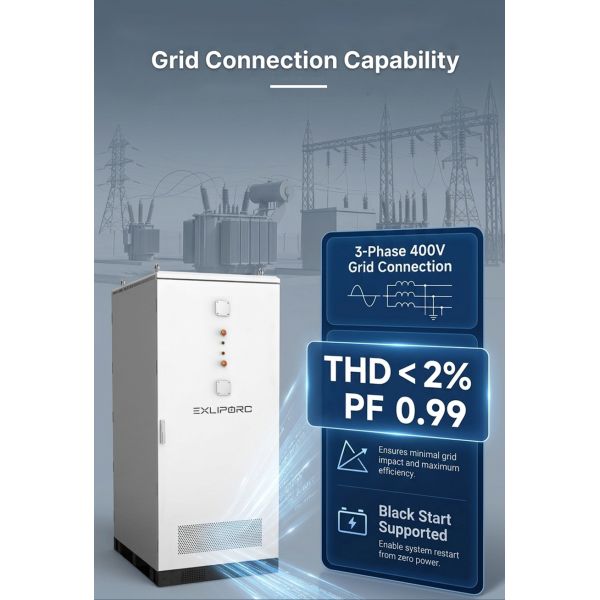

Supports active/reactive power control, harmonic suppression (THD <2%), and black start capability, making it ideal for peak shaving, solar integration, backup power, and microgrid projects.

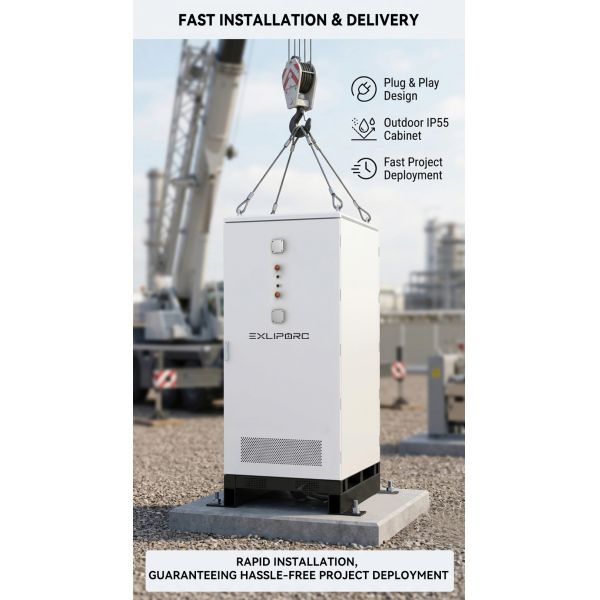

Pre-installed and factory tested, this all-in-one design reduces on-site installation time and simplifies project deployment.

For industrial and commercial use only. Not designed for residential applications.
