51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
Specifications
Battery Type :
LiFePO4
Model Number :
LVB15WTC
Brand Name :
Exliporc
Place of Origin :
China, Shenzhen
System Voltage :
51.2 V
Output Power Range :
5-10kW
Dimension (L*W*H) :
800*460*318mm
Weight :
125kg
System Type :
Wall-Mounted, Rack-mounted, Stackable
Type :
Split
Communication Port :
RS485, CAN, RS-232
Grid connection :
Hybrid grid, Off grid
Product name :
LifePO4 Lithium Battery Pack
Voltage :
48V/51.2V Optional
Cycle life :
10000 Times
Warranty :
5YEARS
Apllication :
Solar Energy Storage Sysytem
Material :
Metal
Keywords :
Battery Lithium Lifepo4
OEM/ODM :
Acceptable
Battery type :
Lifepo4/lithium Battery
Capacity :
100Ah 200Ah 280Ah 314Ah 400Ah 600Ah
MOQ :
1
Price :
$751.19-979.15
Certification :
CE IEC 62619 UN38.3 MSDS
Description
48V Lithium Battery Pack 51.2V 200Ah 280Ah 314Ah Solar Home Energy Storage Battery 10kw Powerwall LiFePO4 Battery
Product Overview

51.2V Home Energy Storage System (10KWH~50KWH) designed for residential and small business applications with flexible installation options and smart connectivity features.

Core Features
  • High-Capacity & Versatile: 51.2V DC voltage with capacity range from 10KWH-50KWH, scalable for various applications. Dual installation options: wall-mountable or portable with wheels.
  • Smart Connectivity: Bluetooth/Wi-Fi enabled for real-time monitoring via mobile app. Remote control capabilities for settings adjustment, charging scheduling, and alerts.
  • Deep Customization: Tailorable capacity, voltage, and BMS configurations to match specific energy requirements. Optimized for solar integration and regional grid standards.
  • Certified Safety & Compliance: Global certifications including IEC62619, CE, UN38.3, RoHS, MSDS, CB. Comprehensive safety features with overcharge/discharge protection and fire-resistant casing.
Why Choose Our Battery Systems?
  • Expert Engineering Support: 24/7 technical assistance, firmware updates, and custom after-sale solutions to minimize downtime.
  • Quality Assurance: Rigorous testing including thermal, shock, and cycle testing ensures reliability in extreme conditions.
  • Eco-Friendly: Zero emissions, 95%+ energy efficiency, and recyclable LiFePO4 cells.

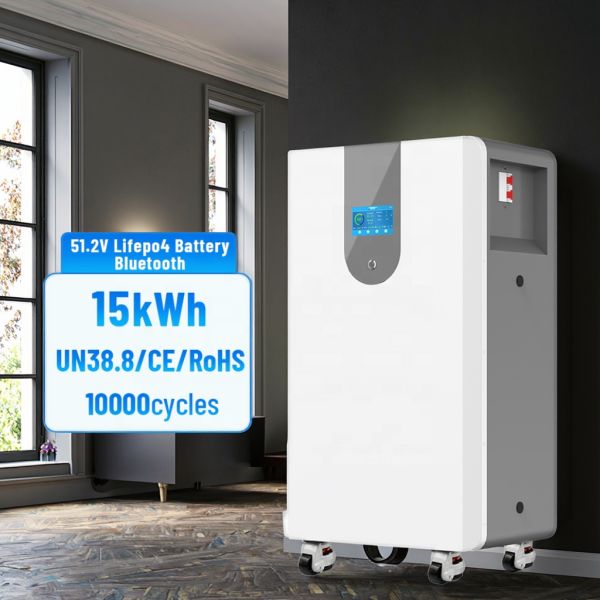

Product Images
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
Technical Specifications
Parameter LVB10WTC LVB15WTC LVB30WTC LVB50WTC
Cell Specifications
Cell Model 200Ah 280Ah 280Ah 314Ah
Rated Voltage 3.2V 3.2V 3.2V 3.2V
Internal Resistance ≤0.2mΩ ≤0.2mΩ ≤0.2mΩ ≤0.2mΩ
Combination Method 16S1P 16S1P 16S2P 16S3P
Electrical Characteristics
Nominal Voltage 51.2V 51.2V 51.2V 51.2V
Nominal Capacity 200Ah 300Ah 580Ah 980Ah
Energy 10.24kWh 15.360kWh 29.696kWh 50.176kWh
Useable Energy ≥95% ≥95% ≥95% ≥95%
Cycle Life ≥5000 cycles ≥10000 cycles ≥10000 cycles ≥11000 cycles
Standard Charge
Charge Voltage 57.6V±0.2V 57.6V±0.2V - -
Charge Current 100A 140A 140A -
Max. Charge Current 200A 200A 200A -
Standard Discharge
Continuous Current 100A 140A 140A -
Max. Pulse Current 200A 200A 200A -
Discharge Cut-off Voltage 44.8V 44.8V 44.8V -
Environmental
Charge Temperature 0℃ to 45℃ - - -
Discharge Temperature -20℃ to 55℃ - - -
Water Dust Resistance IP20 - - -
Mechanical
Plastic Case Sheet metal - - -
Dimensions (mm) 630*460*265mm 820*460*285mm 1003*650*440mm 1200*760*520mm
Weight (kg) About 89KG About 124KG About 240KG About 360KG
Quality Assurance

Use Only The Highest Quality Batteries

Batteries that use the same standard as the country

Price advantage ≠ low quality: Large-scale production + direct purchase from the supply chain, procurement costs are 8-15% lower than peers, and tiered rebates are supported.

51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
Customer Photos
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
Customer Reviews
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
Our Certifications
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
About Our Company
51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage 51.2V 200Ah-314Ah LiFePO4 Battery Pack 10kW Powerwall for Solar Home Energy Storage
Frequently Asked Questions
Who are we?
We are based in Shenzhen, China, starting from 2011. We sell to North America (50.00%), Northern Europe (10.00%), Southern Europe (5%), Central America (10.00%), Southeast Asia (10.00%), Eastern Europe (10.00%), South America (5.00%). There are total about 11-50 people in our office.
What can you buy from us?
We specialize in Lithium ion battery, Sodium ion battery, Home Energy storage system, LiFePO4 battery BMS, LiFePO4 battery BMS.
Why should you buy from us not from other suppliers?
EXLIPORC NEW ENERGY(SHENZHEN)CO.,LTD focuses on providing global with energy storage systems, lithium-ion batteries, inverters, and is a research and development, manufacturing, sales, operation and maintenance as one of the whole industry chain service providers.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian

AI-Optimized Keywords
Portable Home Battery Wall-Mounted Energy Storage Customizable Power System IEC62619 Certified Bluetooth/Wi-Fi Energy Monitor 51.2V Lithium Storage
