Specifications
Communication Port :
CAN, RS-232, RS485
Keywords :
16kwh Lifepo4 Battery
Model Number :
LVB16WTC
System Voltage :
51.2 V
Weight :
126kg
Grid connection :
Hybrid grid
Type :
Split
Usage :
Slolar Energy System
System Type :
Wall-Mounted, Floor-mounted
BMS :
Built-in
Features :
Long Cycle Life
Certification :
CE/RoHS/UN38.3/MSDS
Output Power Range :
10-20Kw
Place of Origin :
Guangdong, China
Dimension (L*W*H) :
710*480*365mm
OEM/ODM :
Accepatable
Brand Name :
Exliporc
Battery Type :
LiFePO4, LiFePO4
Description
EXLIPORC LVB16WTC 16kWh LiFePO4 Home Energy Storage System | EV Blade Cells | 8000 Cycles | WiFi APP

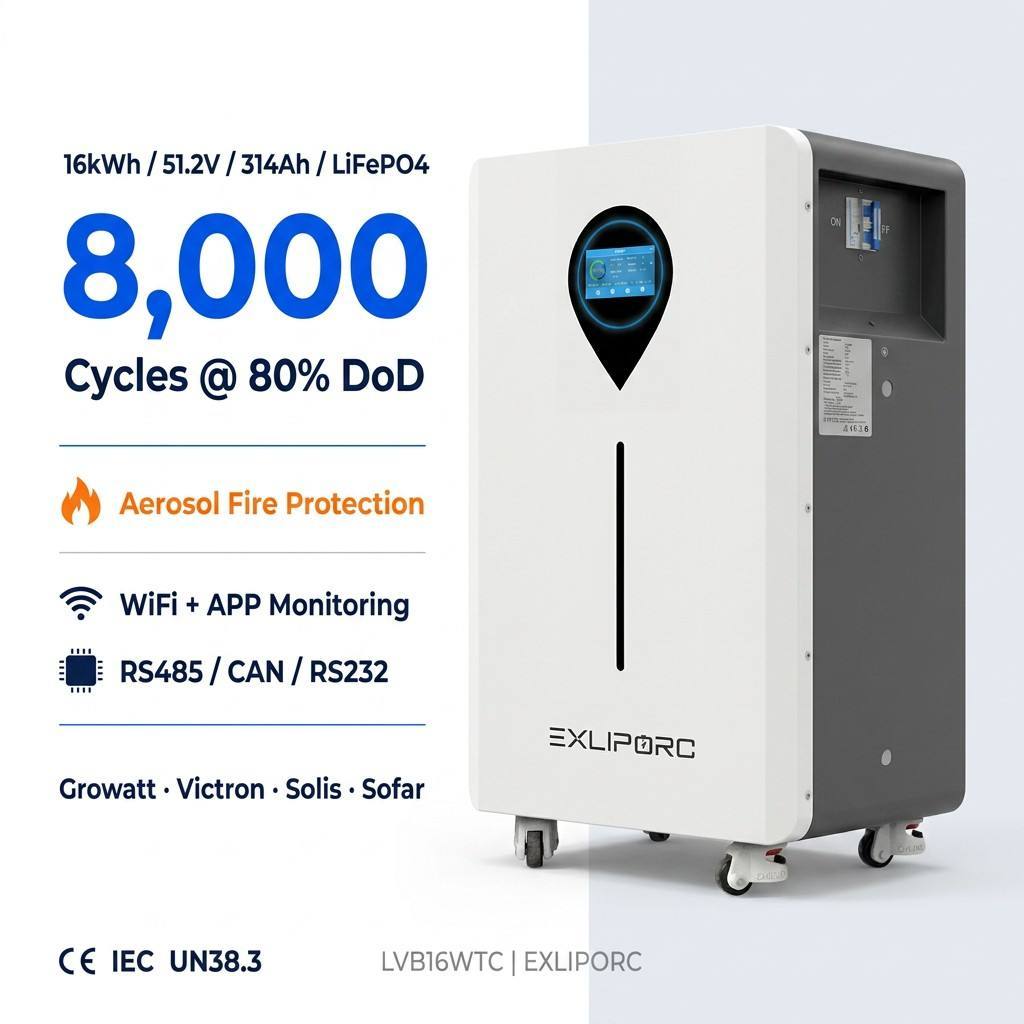

16kWh 51.2V 314Ah LiFePO4 Solar Battery. Powered by EV-Grade Blade Cells. Built to Outlast. 8,000+ cycles • Active Balancing BMS • WiFi/APP monitoring • Aerosol fire protection — a residential energy storage system engineered for the next decade.
Request a Quote Download Datasheet
EXLIPORC LVB16WTC 16kWh LiFePO4 Home Energy Storage System with EV Blade Cells for 8000 Cycles and WiFi APP Monitoring

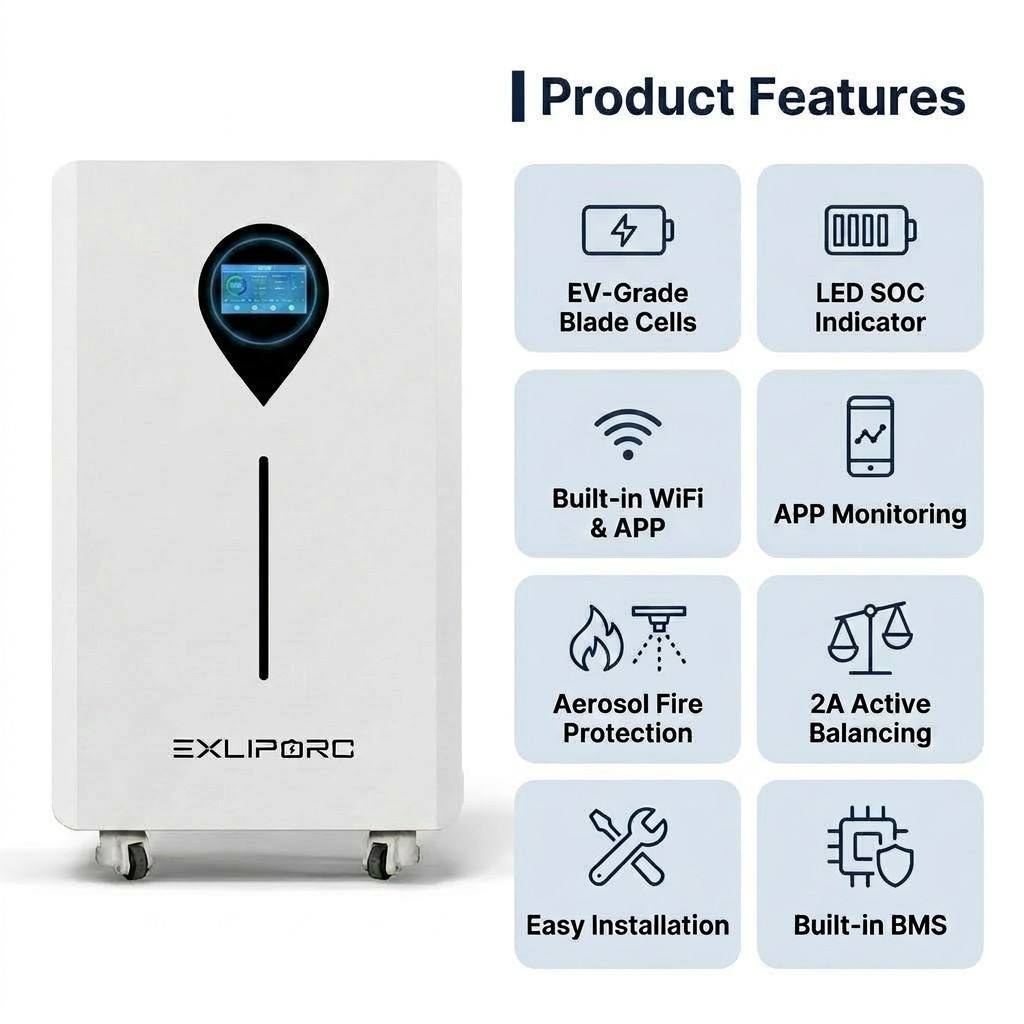

Key Features
EXLIPORC LVB16WTC 16kWh LiFePO4 Home Energy Storage System with EV Blade Cells for 8000 Cycles and WiFi APP Monitoring
EV-Grade Blade Cells
Automotive-grade blade cell architecture for superior thermal stability, higher energy density, and extended cycle life.
2A Active Balancing BMS
Independent cell-level balancing at 2A — extends pack lifespan by ~30% compared to passive balancing systems.
8,000+ Cycles
Over 15 years of daily cycling. Industry-leading endurance and cycle durability.

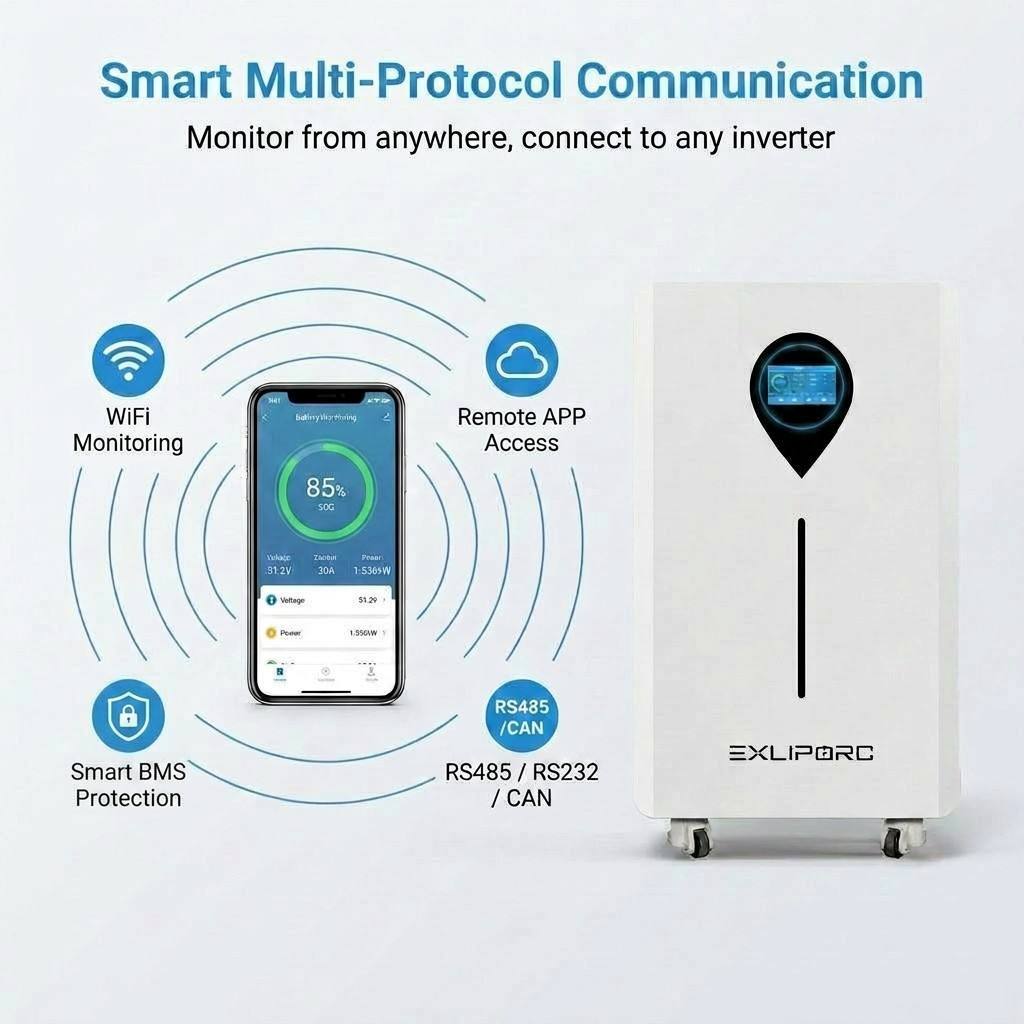

WiFi / Bluetooth / APP
Real-time SOC, SOH, voltage, current, temperature, and fault alerts — no external gateway required.

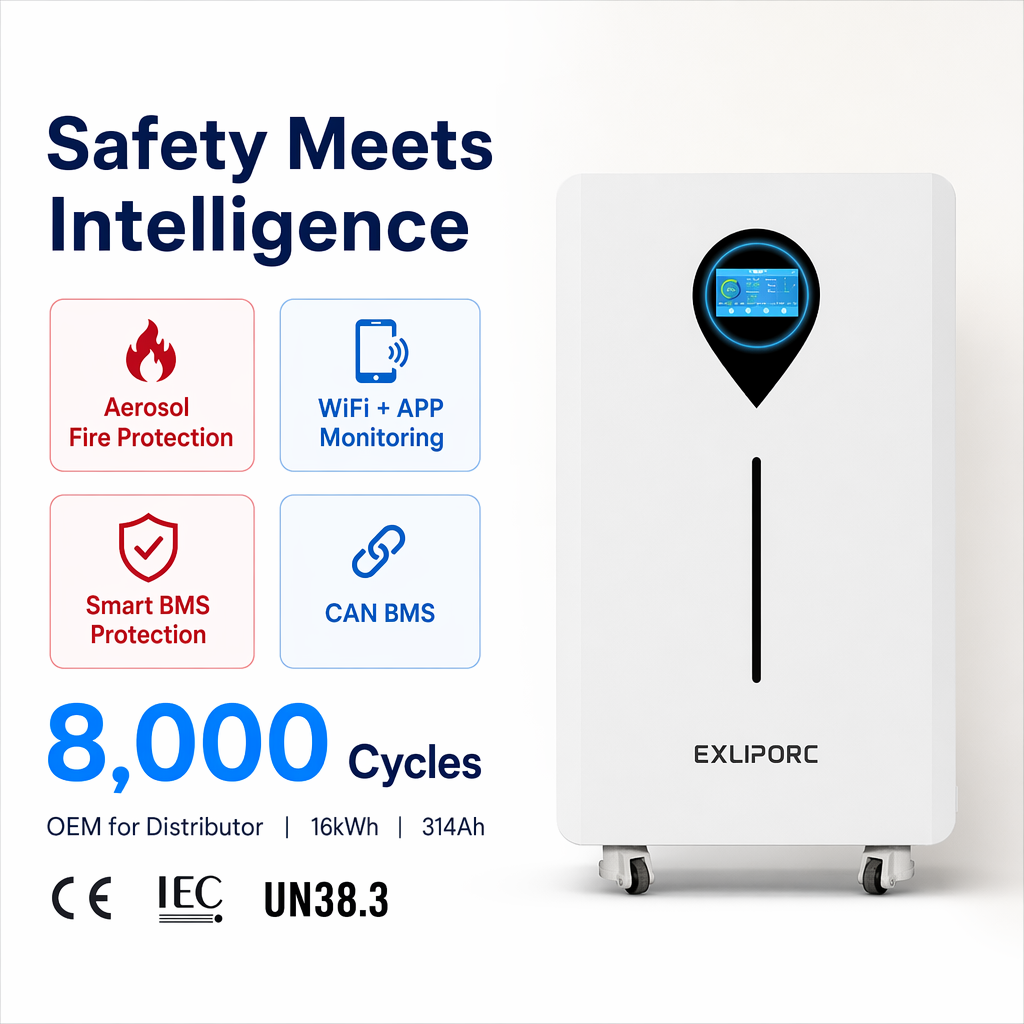

Integrated Aerosol Fire Protection
Autonomous aerosol suppression on thermal runaway detection. No external power or controller needed.
Multi-Language Interface
English, Vietnamese, and Chinese preloaded. Additional languages available for OEM orders.
Easy Installation
Floor-standing design, integrated cable channels, pre-configured protocols — plug and play.
OEM Supported
Custom logo, packaging, APP interface, and language packs. MOQ: 2 units.
Technical Specifications
Model LVB16WTC
Battery Type LiFePO4 (Lithium Iron Phosphate)
Rated Energy 16 kWh
Rated Capacity 314 Ah
Nominal Voltage 51.2 V DC
Max Charge Current 200 A
Max Discharge Current 200 A
Active Balancing Current 2 A
Cycle Life ≥ 8,000 cycles (80% DoD, 25°C)
IP Rating IP20 (indoor)
Communication RS485 / RS232 / CAN
BMS Built-in, Active Balancing
SOC Display LED indicator
Wireless WiFi / Bluetooth / Mobile APP
Fire Protection Integrated aerosol suppression (autonomous trigger)
Warranty 5 years standard / 10 years extended (optional)
Dimensions (L * W * H) 460 mm * 285 mm * 820 mm
Weight 124 kg ± 5 kg
Installation Floor standing, parallel-capable
Certifications CE / UN38.3 / MSDS / Maritime
Application Scenarios
Residential Solar Storage
Pair with rooftop PV to store daytime energy for nighttime use. Ideal for 5-10 kW solar systems.
Peak Shaving (C & I)
Charge during off-peak hours, discharge during peak rate windows. Strong demand in Vietnam textile and seafood processing plants.
Backup Power
Seamless switching during grid outages to protect critical loads. Works with compatible inverters.
Off-Grid / Remote
16 kWh standalone storage with low self-discharge. Suitable for telecom towers, islands, and remote communities.
Wholesale & Distribution
OEM-ready with flexible MOQ. Parallel-scalable from 16 kWh to 160+ kWh.
Why Choose LVB16WTC?
  • EV-Grade Technology, Residential Price: Blade cells — the same architecture trusted by electric vehicle manufacturers — now engineered for home energy storage. Higher volumetric efficiency, lower internal resistance, and superior cycle stability over conventional prismatic cells.
  • Active Balancing, Not Passive Waste: Most residential batteries use passive balancing, burning excess energy as heat. The LVB16WTC actively redistributes charge at 2A per channel. Every watt-hour stays in the pack. Longer life, more usable capacity.
  • Safety Is Built In, Not Bolted On: Aerosol fire suppression is integrated inside the enclosure. No external sensors, no external power, no separate controller. It activates when it matters — autonomously.
  • Monitoring Out of the Box: WiFi and Bluetooth come standard. No dongle to buy, no gateway to configure, no subscription to pay. Power on, open the APP, and see every parameter in real time.
  • Inverter-Ready: RS485, RS232, and CAN cover all major inverter brands: Deye, Growatt, Victron, SMA, Solis, Luxpower, and more.
EXLIPORC LVB16WTC 16kWh LiFePO4 Home Energy Storage System with EV Blade Cells for 8000 Cycles and WiFi APP Monitoring
Frequently Asked Questions
What is the cycle life of this battery?
The LVB16WTC is rated for ≥ 8,000 cycles at 80% DoD and 25°C ambient temperature. That translates to over 15 years at one full cycle per day.
Can multiple units be connected in parallel?
Yes. Multiple LVB16WTC units can be paralleled from 16 kWh up to 160+ kWh. Refer to the installation manual or contact technical support for maximum parallel configurations.
Which inverter brands are compatible?
The unit communicates via CAN, RS485, and RS232, making it compatible with most major brands including Deye, Growatt, Victron, SMA, Solis, and Luxpower. A full compatibility matrix is available on request.
Is OEM / private labeling available?
Yes. Custom logo, packaging, APP interface, and language packs are supported. Minimum order quantity: 2 units.
What warranty is included?
Standard warranty is 5 years. A 10-year extended warranty is available for qualified projects and distributors.
Can it be installed outdoors?
The LVB16WTC is IP20-rated and designed for indoor installation. For outdoor applications, please inquire about our IP65 product series.
How does the aerosol fire protection work?
The integrated aerosol suppression system detects thermal runaway and triggers autonomously — no external power or controller required.
Can I monitor the battery on my phone?
Yes. Built-in WiFi and Bluetooth connect to the EXLIPORC APP for real-time SOC, SOH, voltage, current, temperature, and alert monitoring.
