8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
Specifications
Place of Origin :
Shanghai,China
Brand Name :
FengShen
Certification :
CE,ISO9001
MOQ :
1
Price :
$539-575 / piece
Packaging Details :
Cardboard boxes, Wooden boxes
Delivery Time :
7 days
Payment Terms :
T/T
Supply Ability :
100 units per month,2000 units per year
Model Number :
FS-07S
Type :
Semi-Automatic
Warranty :
12 months
Material :
Plastic and Steel
Hose Material :
Rubber
Hose Diameter :
76 / 102 / 127 / 152 mm
Hose Length :
8 / 10 meters for Choice
Nozzle :
Suitable for all Kinds of Vehicles
Voltage :
110V 220V 380V
Fan (Air Blower) :
0.55 / 0.75 / 1.1 / 2.2/3 KW
Function :
Exhaust/Gas/Fume extraction
Description
Products Description

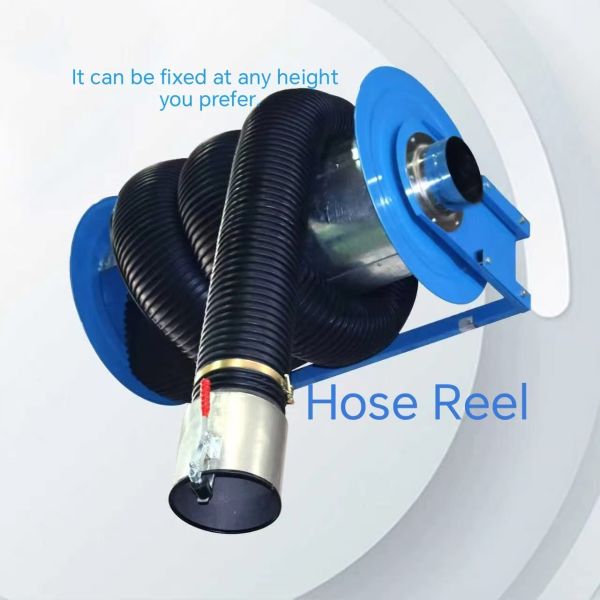

Fengshen Manual spring operated reels work best in applications where the hose reel is within reaching distance of the operator. Simply pull down the hose to the desired length and attach the exhaust nozzle to the tailpipe. After successfully removing car exhaust from your space, the hose easily retracts back into the reel.

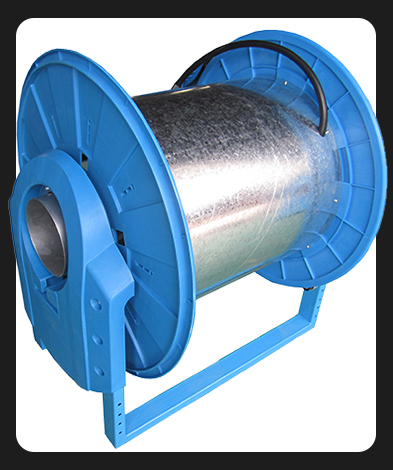

  1. A drum (Dia-casting PPS plastic housing and zinc-plated steel cylinder) stores the hose securely in place overhead
  2. The hose reel is mounted to a steel bracket.
  3. Manual operation with multi-position lock ratchet and stopper collar
  4. Heat & crush resistant rubber hose
  5. Easy-quick nozzle can attach to the exhaust source.
  6. The hose reel exhaust port can be equipped with a direct mount fan/blower (option)Features:
  • Features:
  • Dia-casting PPS plastic housing
  • zinc-plated steel cylinder
  • Metal Ratchet Gyrator

2. φ152 rubber hose super for High-Emission Vehicle

3. Without fan (brower), this Hose Reel should be connected to a centralized exhaust fan.

Diameter 152mm
Length 8meters
Temperature -40to220Degree
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
Order No. Drum Disc Dia(mm) Drum Length(mm) Hose Capacity
2763030308 650 500 φ76mm *8m
2763030310 650 500 φ76mm *10m
2763030408 650 500 φ102mm *8m
2763030410 650 650 φ102mm *10m
2763030508 650 650 φ127mm *8m
2763030510 650 800 φ127mm *10m
2763030608 650 800 φ152mm *8m
Hose(8/10m):
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
Order No. Hose Material Temp. Resistance(℃) Hose Dia.(mm)
275011-5 PVC 110 127
275021-3 Neoprene 200 76
275021-4 Neoprene 200 102
275021-5 Neoprene 200 127
275021-6 Neoprene 200 152
275031-3 One-Layer Fabric 300 76
275031-4 One-Layer Fabric 300 102
275031-5 One-Layer Fabric 300 127
275031-6 One-Layer Fabric 300 152
275061-4 Two-Layer Fabric 650 102
275061-5 Two-Layer Fabric 650 127
275061-6 Two-Layer Fabric 650 152
Fan:
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
Order No. Power
273175 0.75 KW
273111 1.1 KW
273215 1.5 KW
273222 2.2 KW
273230 3 KW
Nozzel:
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
Order No. Inlet Material Hose Dia
274001-3 φ120 mm Neopren 76 mm / 3"
274001-4 φ120 mm Neopren 102 mm / 4"
274010-3 φ120 mm Neopren 76 mm / 3"
274010-4 φ120 mm Neopren 102 mm / 4"
274004-3 190 x 80 mm Neopren 76 mm / 3"
274004-4 190 x 80 mm Neopren 102 mm / 4"
274011-3 190 x 80 mm Neopren 76 mm / 3"
274011-4 190 x 80 mm Neopren 102 mm / 4"
274005-3 210 x 120 mm Neopren 76 mm / 3"
274005-4 210 x 120 mm Neopren 102 mm / 4"
274012-3 210 x 120 mm Neopren 76 mm / 3"
274012-4 210 x 120 mm Neopren 102 mm / 4"
274006-3 210 x 120 mm Neopren 76 mm / 3"
274006-4 210 x 120 mm Neopren 102 mm / 4"
274013-3 210 x 120 mm Neopren 76 mm / 3"
274013-4 210 x 120 mm Neopren 102 mm / 4"
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
Order No. Inlet Material Hose Dia
274008-3 120 x 110 mm Neopren 76 mm / 3"
274008-4 120 x 110 mm Neopren 102 mm / 4"
274007-3 150 x 110 mm Neopren 76 mm / 3"
274007-4 150 x 110 mm Neopren 102 mm / 4"
274014-3 180 x 90 mm Neopren 76 mm / 3"
274014-4 180 x 90 mm Neopren 102 mm / 4"
274020-3 320 x 116 mm Iron 76 mm / 3"
274020-4 320 x 116 mm Iron 102 mm / 4"
274002-4 φ180 mm Neopren 102 mm / 4"
274002-5 φ180 mm Neopren 127 mm / 5"
274018-4 φ180 mm Neopren 102 mm / 4"
274018-5 φ180 mm Neopren 127 mm / 5"
8meters Spring Hose Reel 152mm Spring Driven Cable Reel 500mm Frug
Order No. Inlet Material Hose Dia
274003-4 φ150 mm Neopren 102 mm / 4"
274003-5 φ150 mm Neopren 127 mm / 5"
274017-4 180 x 90 mm Neopren 76 mm / 3"
274017-5 180 x 90 mm Neopren 102 mm / 4"
274009-4 φ180 mm Neopren 102 mm / 4"
274009-5 φ180 mm Neopren 127 mm / 5"
274015-5 φ245 mm Stainless Steel 127 mm / 5"
274015-6 φ245 mm Stainless Steel 152 mm / 6"
274016-5 270 x 260 mm Stainless Steel 127 mm / 5"
274016-6 270 x 260 mm Stainless Steel 152 mm / 6"
274020-3 φ140 mm Iron 76 mm / 3"
274020-4 φ140 mm Iron 102 mm / 4"
