Our professional Sliding Rail Trolley system is a complete overhead exhaust solution engineered for demanding environments like fire stations, auto repair shops, and private garages. This system, also known as an Exhaust Rail Channel System, centers around a robust Sliding Rail Trolley that moves effortlessly along extruded aluminum rails. It efficiently deploys connected equipment such as extraction hoses, nozzles, and centralized dust/smoke extractors to remove hazardous fumes, vehicle exhaust, and particulate matter directly at the source, ensuring a safer and cleaner workspace.

General Specification A complete Slidng System consists of 1. Extruded aluminum sliding rail with neoprene sealing lips 2. Duct parts 3. Mounting parts 4. Sliding trolley 5. Exhaust Fan 6. Hose 7. Nozzle (tailpipe adapter)

• Complete Integrated System: A turnkey solution comprising extruded aluminum rails with neoprene seals, duct parts, mounting hardware, the core Sliding Rail Trolley, a powerful exhaust fan, flexible hose, and adapters.

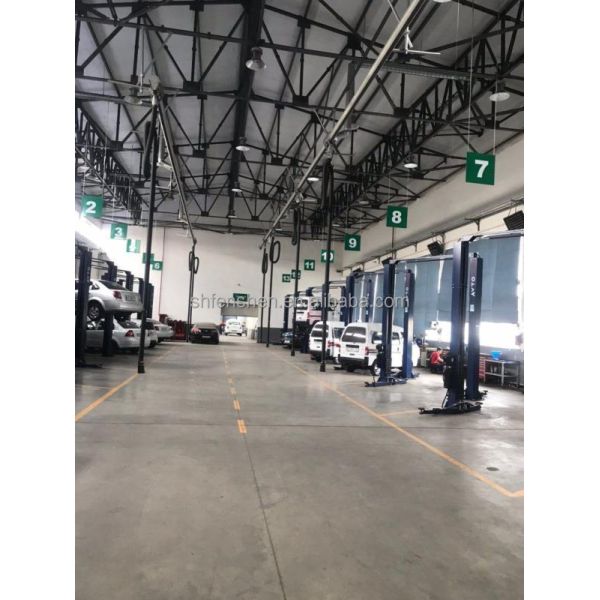

• High-Coverage & Flexibility: The trolley slides smoothly along rails installed 4-5 meters above the floor, allowing a single hose drop or reel to service multiple vehicle bays across the entire workshop length.

• Durable & Sealed Design: Features precision-made aluminum rails and airtight neoprene sealing lips that engage under the system's negative pressure, preventing fume leakage.

• Centralized Powerful Extraction: The trolley system is tied to a high-capacity central exhaust fan (wall, roof, or beam-mounted), ensuring efficient fume evacuation through spiral ducting.

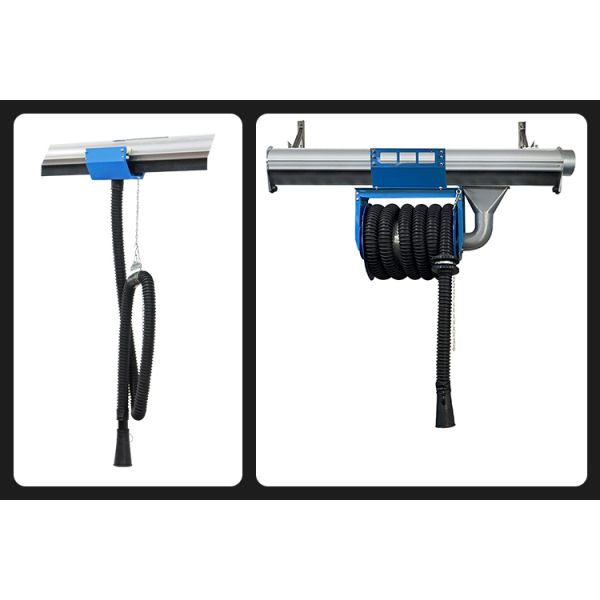

• Versatile Configuration: Compatible with both simple hose drop setups or hose reel systems, offering tailored solutions for fire apparatus bays, repair stalls, or personal workshop use.

We are a certified manufacturer (CE, ISO9001) supplying robust and reliable industrial extraction systems globally. Our Sliding Rail Trolley is built from quality materials like stainless steel and aluminum for longevity. We provide direct support and tailored solutions for clients across key markets including the UK, Australia, Canada, USA, Malta, Netherlands, Denmark, Norway, Germany, Switzerland, and over 60 countries. Our system offers unparalleled cost-effectiveness by maximizing coverage with a single mobile extraction point, reducing equipment needs and enhancing operational safety for fire stations and automotive professionals.

Q: What is included in a complete Sliding Rail Trolley system?

A: A full system includes extruded aluminum rails, all necessary duct and mounting parts, the central Sliding Rail Trolley unit, an exhaust fan, flexible hose, and a nozzle or tailpipe adapter.

Q: How does the sealing mechanism work?

A: Negative pressure generated by the exhaust fan pulls the neoprene seals on the rail joints together, creating an airtight seal that prevents fumes from escaping into the workshop as the trolley moves.

Q: Can this system handle smoke and fumes from fire trucks and diesel engines?

A: Yes. It is specifically designed for heavy-duty applications, including extracting diesel exhaust and hot smoke commonly found in fire stations and automotive workshops.

Q: Is the system suitable for a multi-bay facility?

A: Absolutely. The primary advantage of this Sliding Rail Trolley system is its ability to service multiple bays along the entire rail length from a single extraction point, making it highly efficient for larger spaces.

Q: What are the key maintenance requirements?

A: Maintenance is minimal. Regular checks should include inspecting the trolley's rollers, ensuring rail seals are intact, and cleaning or replacing the exhaust fan filters as needed.
