1. Product Introduction

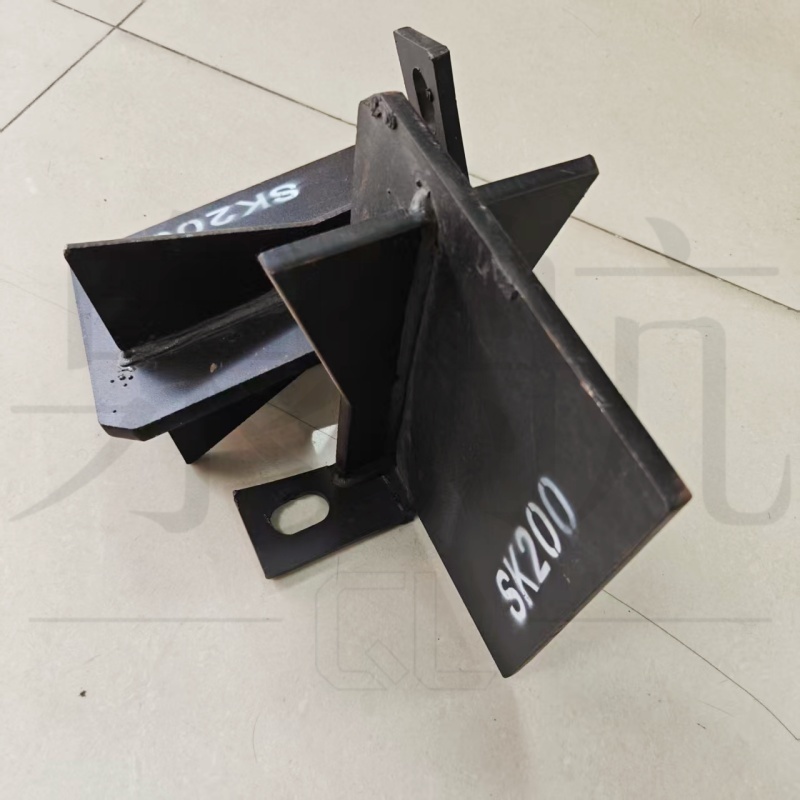

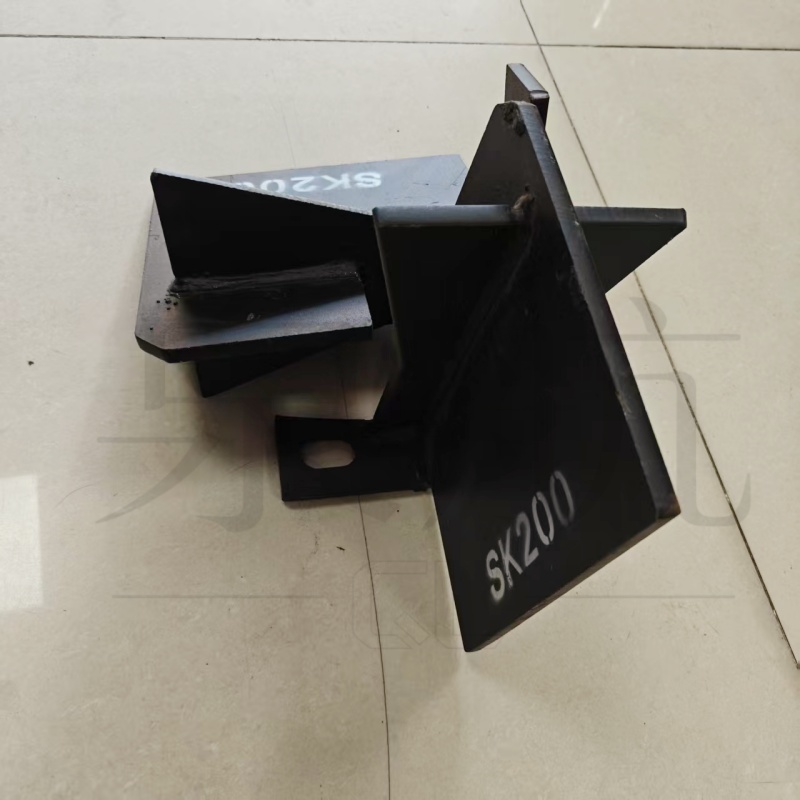

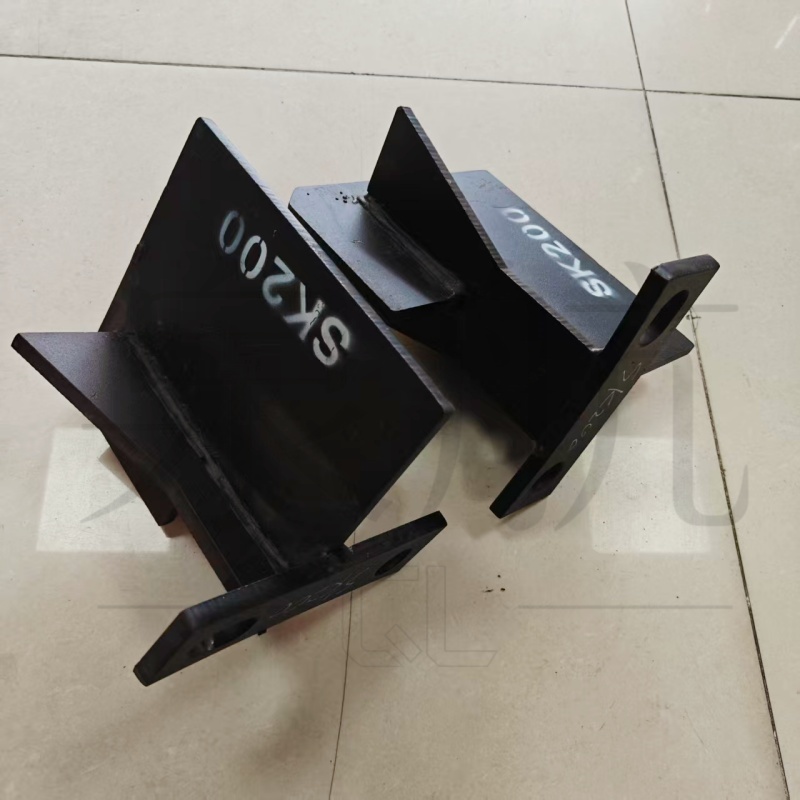

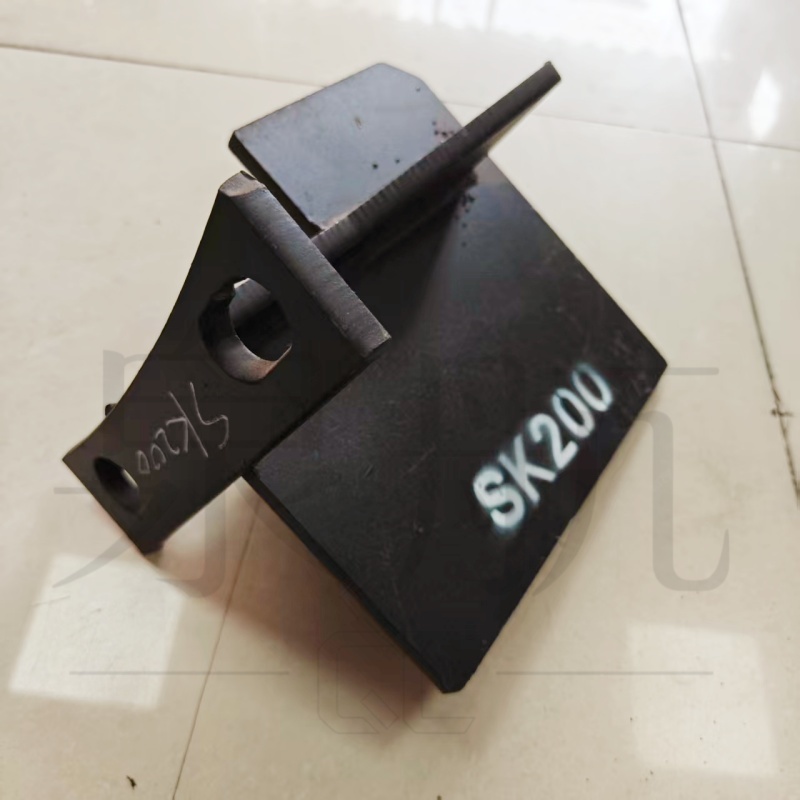

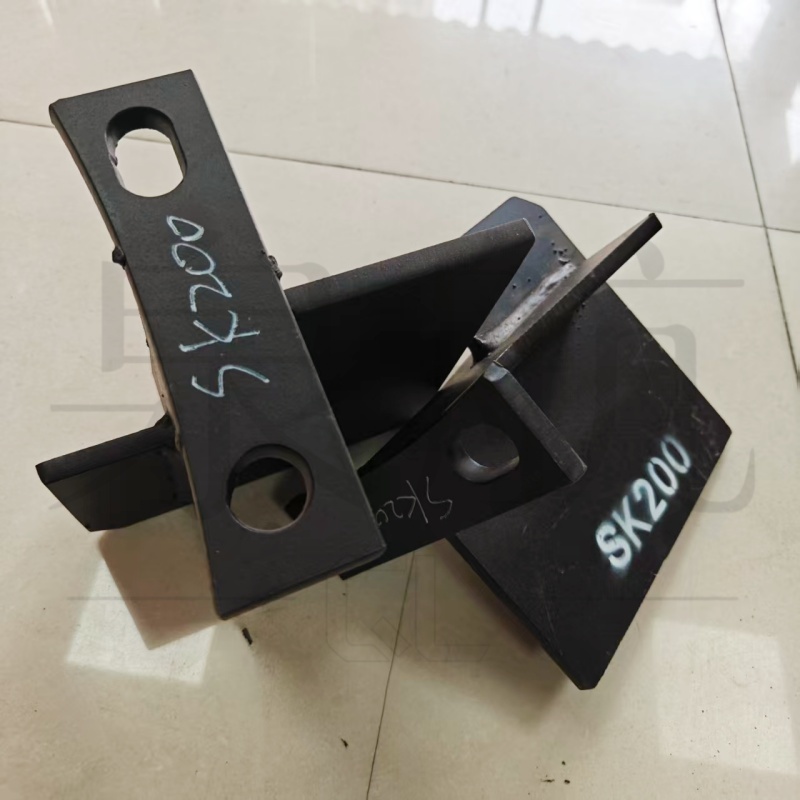

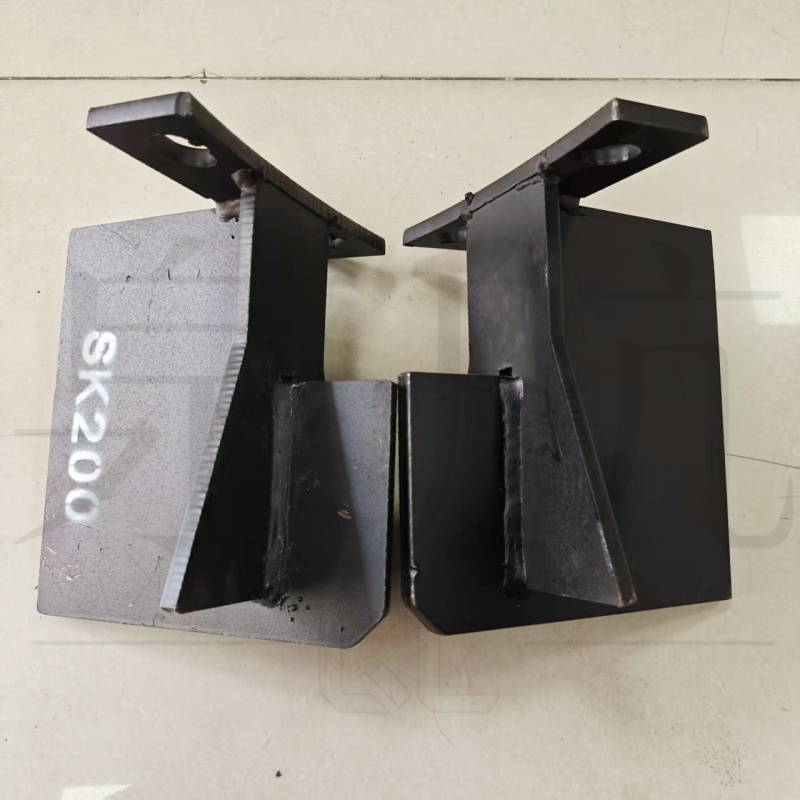

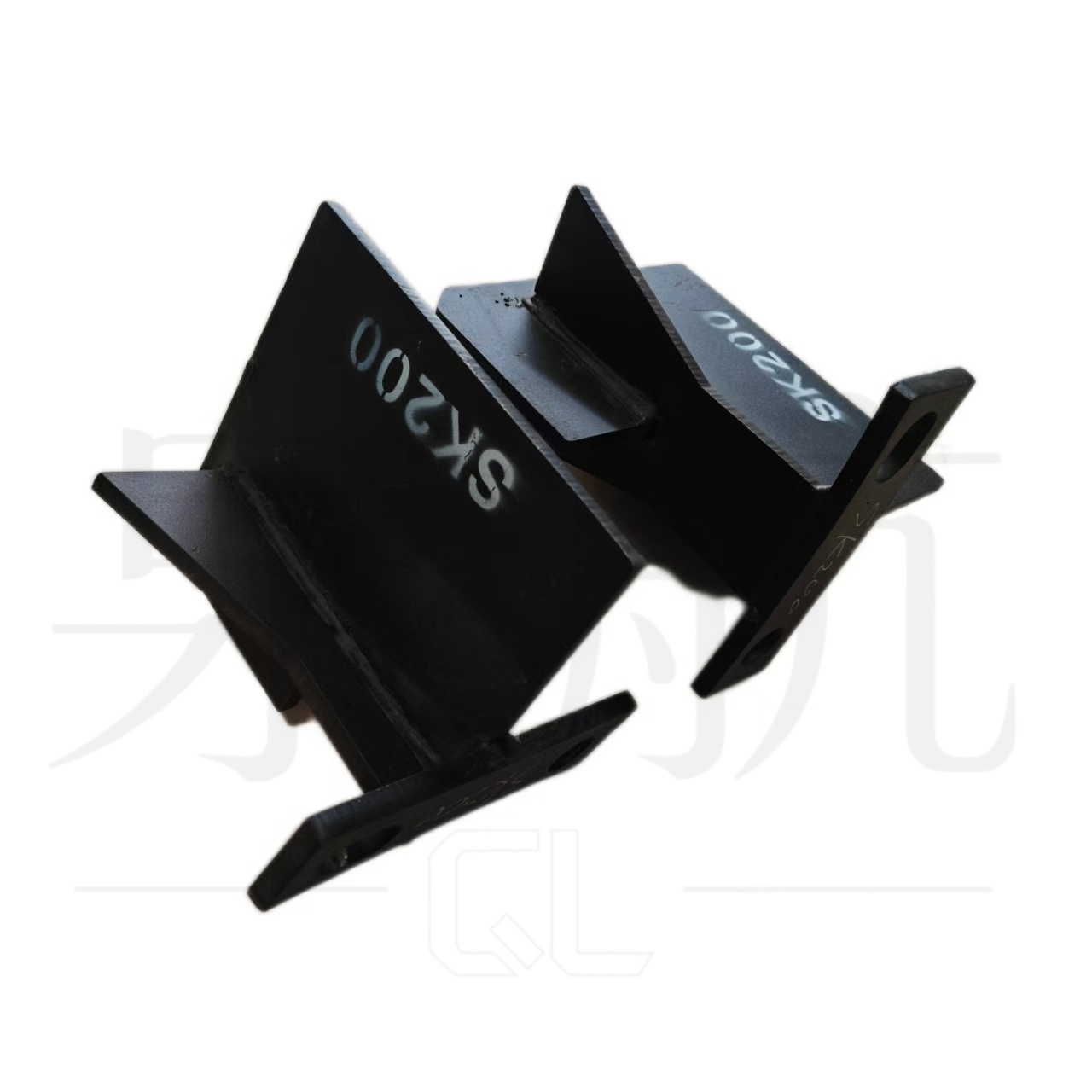

Our excavator mud scraper plate is professionally customized for Kobelco SK200 full series excavators (SK200-6/SK200-8/SK200-10). It belongs to chassis wear spare parts, mainly installed on the crawler frame, used to automatically scrape off mud, soil, gravel and sticky dirt adhered to tracks and rotary turntable during construction work. Effectively prevent mud accumulation from affecting walking flexibility, reduce track wear, lower daily maintenance frequency for your excavator.
2. Core Production Craft & Material Advantages

• Raw Material: High manganese wear-resistant alloy structural steel, hardness up to 48-53 HRC, strong anti-abrasion, anti-impact performance, adapt to muddy, mountainous, construction site harsh working conditions

• Processing Technology: Integral precision forging + high temperature quenching & tempering heat treatment, overall structural toughness enhanced, not easy to bend, crack or deform under long-term heavy load

• Precision Machining: CNC drilling positioning holes strictly according to original vehicle size, 1:1 OEM dimension matching, no cutting, no modification required during installation

• Surface Treatment: Anti-rust electrophoretic spray coating, corrosion resistant in rainy, humid environment, long service life

​3. Main Functions & Benefits For Users
✅ Automatically clean track mud & sundries while excavator traveling, save manual cleaning time
✅ Avoid mud jamming between track links, extend service life of tracks, rollers and drive sprockets
✅ Stabilize walking tension of crawler system, prevent track deviation and shedding

✅ Reduce chassis mud corrosion, decrease repair cost of undercarriage parts

✅ Easy bolt-on installation, disassembly convenient for later replacement

4. Compatible Models

5. Our Service Terms

• Factory direct supply, bulk order competitive price
• Strict quality inspection before delivery, stable batch quality​
• Support customized size, thickness according to customer demand
• Short production lead time, worldwide shipping available
• 12 months quality warranty under normal working condition
• Small trial order acceptable for bulk cooperation

  Item Details	Specification
  Product Name	Excavator Mud Scraper Plate / Mud Guard
  Applicable Brand	Kobelco
  Compatible Model	SK200-6, SK200-8, SK200-9, SK200-10
  Main Material	High Strength Wear-resistant Manganese Alloy Steel
  Production Craft	Integral Forging + Quenching & Tempering Heat Treatment
  Hardness	48-53 HRC
  Surface Finish	Anti-rust Electrostatic Spraying
  Installation Way	Bolt Fixed Directly (OEM Hole Position Reserved)
  Working Scenario	Muddy land, construction site, earthmoving project, mining area
  Warranty Period	12 Months
  MOQ	1 Piece
  Packing	Export Wooden Case / Carton
