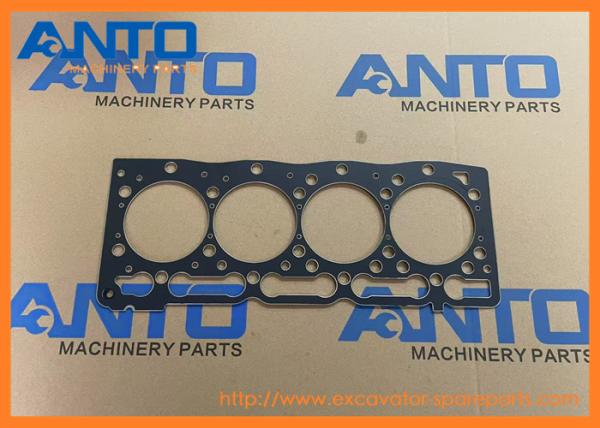

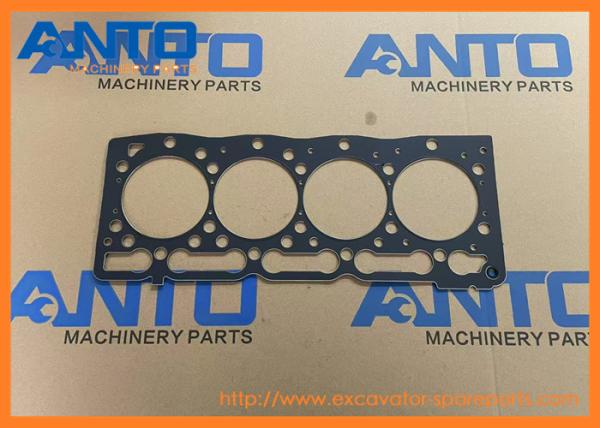

16394-03313 Cylinder Gasket KUBOTA Excavator Spare Parts Fit For KX71-3S F3990 B3350SUHSD
16394-03313 Cylinder Gasket KUBOTA Excavator Spare Parts Fit For KX71-3S F3990 B3350SUHSD
16394-03313 Cylinder Gasket KUBOTA Excavator Spare Parts Fit For KX71-3S F3990 B3350SUHSD
16394-03313 Cylinder Gasket KUBOTA Excavator Spare Parts Fit For KX71-3S F3990 B3350SUHSD
Specifications
Brand Name :
OEM
Model Number :
16394-03313
Place of Origin :
China
MOQ :
1 PCS
Price :
13 USD / pcs
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Cylinder Head
Machine model :
KX71-3S F3680 F3990 B3000HSDCC
Application :
Excavator
Product name :
Cylinder Gasket
Part number :
16394-03313
Packing :
Standard Export Carton
Description
  • 16394-03313 Cylinder Gasket KUBOTA Excavator Spare Parts Fit For KX71-3S F3990 B3350SUHSD

  • Specification
Name Cylinder Gasket
Parts No 16394-03313
Machine Model KX71-3S F3680 F3990 B3000HSDCC B3200HSD B3030HSD
Category Cylinder Head
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing

  • Function

It is installed between the engine cylinder head and the cylinder block. Its main role is to fill the tiny gaps between the cylinder head and the cylinder block, ensuring a tight seal. This prevents the leakage of combustion gases, engine oil, and coolant, maintaining the engine's compression ratio and normal operating temperature, and ensuring the engine can operate efficiently.

  • Compatible models

B, BX Series B3000HSDCC B3030HSDC B3150HD B3150HDCC B3150SUHD

Excavator(K / KH / KX / U SERIES) KX71

FRONT MOWER(F / FZ / GF SERIES) F3680 F3690

TRACTOR B SERIES B3030HSD B3300SUHSD Kubota

  • More other gasket parts fit for KUBOTA machine
04724-00100 GASKET
AD70, B1700D, B1700HSD, B1700HSDB, B1700HSE, B21, B2100D, B2100HSD, B2100HSDB, B2400HSD, B2400HSDB, B2410HSD, B2410HSDB, B2910HSD, B3000HSDCC, B3030HSD, B3030HSDC, B3150HD, B3150HDCC, B3150SUHD, B3300...
04724-00120 GASKET
A1400, A3500, AE4500, ARX2500, ARX4000, AT25, AT60, AT70S, AV1600, AV2500, AV3800, AV4500, AV650, B1550D, B1550E, B1750D, B1750E, B20, B2150D, B2150E, B2150HSD, B2150HSE, B2910HSD, B3000HSDCC, B3030HS...
04724-00140 GASKET
B26, B3150SUHD, KX033, KX121, KX161, KX91, L3130DT, L3130HST, L3200DT, L3200H, L3240DT, L3240HST, L3400DT, L3400H, L3430DT, L3430HST, L3540HST, L3800DT, L3800H, L3830DT, L4150DT, L4240HST, L4240HSTC, ...
16221-73270 GASKET,THEMOSTAT
B1700D, B1700HSD, B1700HSDB, B1700HSE, B21, B2100D, B2100HSD, B2100HSDB, B2301HSD, B2320HSD, B2400HSD, B2400HSDB, B2410HSD, B2410HSDB, B26, B2601HSD, B2630HSD, B2710HSD, B2910HSD, B2920HSD, B3000HSDCC...
16241-14520 GASKET,HEAD COVER
B2710HSD, B2910HSD, B3000HSDCC, B3030HSD, B3030HSDC, B3150HD, B3150HDCC, B3150SUHD, B3300SUHSD, F3060, F3560, F3680, F3690, J116, J320, KX71, KX91, R310(OLD, R310BH(OLD, ST
16264-04821 GASKET
F3680
16264-04822 GASKET
B21, B2301HSD, B2320HSD, B2410HSD, B2410HSDB, B26, B2601HSD, B2630HSD, B2710HSD, B2910HSD, B2920HSD, B3000HSDCC, B3030HSD, B3030HSDC, B3150HD, B3150HDCC, B3150SUHD, B3300SUHSD, B7510D, B7510HSD, B7610...
16264-52140 GASKET,FUEL PUMP
B1700D, B1700HSD, B1700HSDB, B1700HSE, B21, B2100D, B2100HSD, B2100HSDB, B2400HSD, B2400HSDB, B2410HSD, B2410HSDB, B26, B2630HSD, B2710HSD, B2910HSD, B3030HSD, B3030HSDC, B7300HSD, B7400HSD, B7410D, B...
16264-57210 GASKET
B1700D, B1700HSD, B1700HSDB, B1700HSE, B21, B2100D, B2100HSD, B2100HSDB, B2301HSD, B2320HSD, B2400HSD, B2400HSDB, B2410HSD, B2410HSDB, B26, B2601HSD, B2630HSD, B2710HSD, B2910HSD, B2920HSD, B3000HSDCC...
16299-12360 GASKET,EX-MANIFOLD
B2710HSD, B2910HSD, B3000HSDCC, B3030HSD, B3030HSDC, B3150HD, B3150HDCC, B3150SUHD, B3300SUHSD, F3060, F3560, F3680, F3690, J116, J320, KX71, KX91, R310(OLD, R310BH(OLD

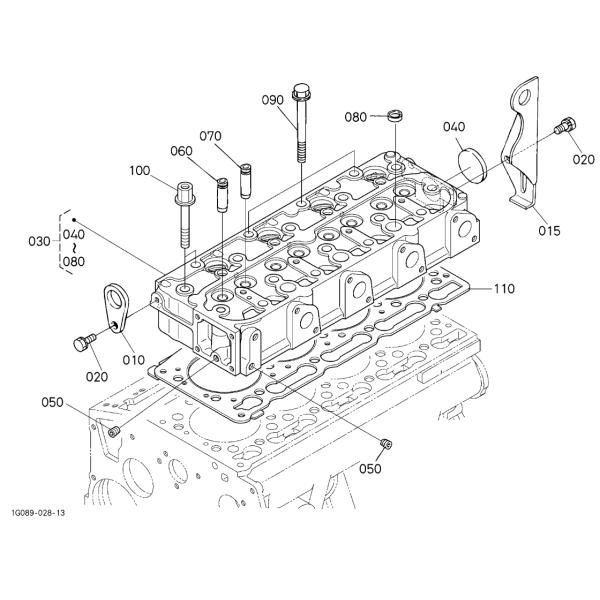

  • Catalog parts list
Pos. Part No Qty Parts name Comments
10 1522101750 [1] HOOK,ENGINE 0.0880(lbs); 0.040
15 1624101770 [1] HOOK,ENGINE 0.3850(lbs); 0.175
20 112350814 [2] BOLT,SEMS 0.0220(lbs); 0.010
30 1G87103040 [1] COMP.CYLINDER HEAD 25.9600(lbs); 11.800
40 1532196260 [1] CAP,SEALING 0.0308(lbs); 0.014
50 1526196010 [2] PLUG 0.0044(lbs); 0.002
60 1626113540 [4] GUIDE,INLET VALVE 0.0440(lbs); 0.020
70 1626113560 [4] GUIDE,EXHAUST VALVE 0.0418(lbs); 0.019
80 1526103370 [3] CAP,SEALING 0.0110(lbs); 0.005
90 1624103450 [16] BOLT,HEAD(CYLINDER) 0.1100(lbs); 0.050
100 1627103450 [2] BOLT,CYLINDER HEAD 0.1650(lbs); 0.075
110 1639403310 [1] GASKET,CYLINDER HEAD ; <=1CKZ999 0.4400(lbs); 0.200
110 1639403313 [1] GASKET,CYLINDER HEAD ; >=1CL0001 0.4400(lbs); 0.200

16394-03313 Cylinder Gasket KUBOTA Excavator Spare Parts Fit For KX71-3S F3990 B3350SUHSD

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
