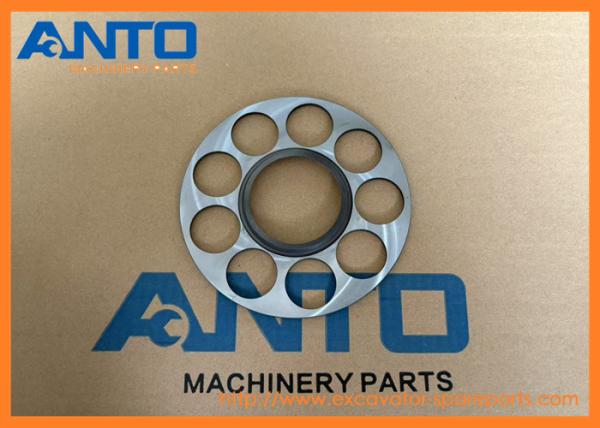

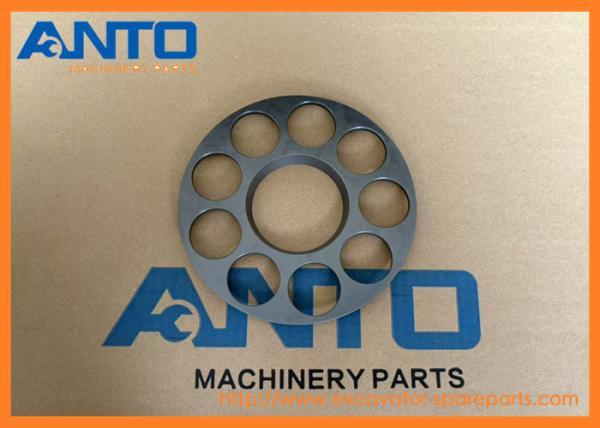

242-6922 Retainer Plate for CAT 345GC 365BL 374FL 385B 390FL Excavators
242-6922 Retainer Plate for CAT 345GC 365BL 374FL 385B 390FL Excavators
242-6922 Retainer Plate for CAT 345GC 365BL 374FL 385B 390FL Excavators
242-6922 Retainer Plate for CAT 345GC 365BL 374FL 385B 390FL Excavators
Specifications
Brand Name :
OEM
Model Number :
C9.3 C15 C18
Place of Origin :
China
MOQ :
1 PCS
Price :
26 USD / pcs
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Swing Motor
Machine model :
345GC 365BL 374FL 385B 390FL
Application :
Excavator
Product name :
Retainer Plate
Part number :
242-6922 2426922
Packing :
Standard Export Carton
Description
  • 242-6922 2426922 Retainer Plate Excavator Spare Parts Fitting For C9.3 C15 C18 385B 390FL

  • Specification
Name Retainer Plate
Parts No 242-6922 2426922
Machine Model 345GC 365BL 374FL 385B 390FL
Category Swing Motor
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing

  • Function

1.Component Fixing: Similar to other retainer plates, the 242 - 6922 retainer plate is likely used to fix key components. It can be fastened to the equipment through screws, bolts, or other fasteners, preventing components from moving or shifting during the operation of the equipment, thus ensuring the stability of the entire mechanical structure. For example, it may be used to fix hydraulic components, gears, or other parts to keep them in their proper positions.

2.Positioning and Alignment: It may play a role in accurately positioning components. By cooperating with other parts, it ensures that the installed components are in the correct position, which is crucial for the normal operation of the mechanical system. For instance, in some precision - required mechanisms, correct positioning can ensure the accuracy of power transmission or the normal operation of the oil circuit.

  • Compatible models

EXCAVATOR 365B 365B L 365C 365C L 365C L MH 374D L 374F L 385B 385C 385C FS 385C L 385C L MH 390D 390D L 390F L
FRONT SHOVEL 385C
MOBILE HYD POWER UNIT 365C L 385C 385C L C.ater.pillar.

  • More other plate parts fit for C A T machine
2528877 PLATE
365C L
2608117 PLATE
365C, 365C L, 365C L MH, 385C, 385C L, 385C L MH
1709815 PLATE
365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L
2660931 PLATE
365C, 365C L, 365C L MH, 374D L
2396423 PLATE
365C, 365C L, 365C L MH, 374D L
2161525 PLATE
365C L
3302646 PLATE
345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L, 365B II, 365C, 365C L, 374D L, 374F L, 390D, 390D L, 390F L
2081923 PLATE
365B, 365B II, 365C, 365C L, 365C L MH, 374D L, 374F L
3119549 PLATE-VALVE
345D, 345D L, 345D L VG, 349D, 349D L, 365C L, 374D L
1850244 PLATE
365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L
2331154 PLATE
365C, 365C L, 365C L MH, 374D L, 374F L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L
2344543 PLATE
365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L

  • Catalog parts list
Pos. Part No Qty Parts name Comments
1 158-8967 [1] BUSHING
2 158-8970 [1] SPACER (47X58X1.5-MM THK)
3 158-8969 [12] PIN
4 242-6922 [1] PLATE
5 158-8973 [1] PLATE
6 158-9009 [1] PISTON AS
7 295-9433 [1] BARREL
8 158-8981 [3] PLATE-FRICTION
9 158-8982 [4] PLATE-SEPARATOR
10 7Y-4277 J [1] SEAL-O-RING
11 8F-5900 J [1] SEAL-O-RING
12 185-0325 [1] PISTON-BRAKE
13 158-8978 J [1] SEAL-O-RING
14 158-8971 [1] SPACER (47X61X3-MM THK)
15 177-2550 [1] HEAD GP-MOTOR
16 110-5525 [2] PLUG
17 3J-1907 J [2] SEAL-O-RING
18 8T-9598 [1] RING-RETAINING
19 4I-5850 [1] RING
20 7Y-4269 [1] BEARING AS-ROLLER
21 158-8965 [3] SPACER (50X61X3-MM THK)
22 234-4543 [1] PLATE
23 123-2139 [20] SPRING
24 158-8968 [1] SPRING
25 8T-4241 [2] RING-RETAINING
26 234-4542 [1] BODY
27 095-0946 [1] RING-RETAINING
28 158-8979 J [1] SEAL-OIL
29 158-8964 [1] SHAFT
30 158-8976 [1] RETAINER
31 295-9432 [1] BEARING AS
32 095-1716 J [1] SEAL-O-RING
33 170-9985 [2] VALVE-PISTON
34 170-9996 [2] PLUG
35 095-1600 J [2] SEAL-O-RING
36 170-9986 [2] SPRING
37 161-7611 M [4] BOLT-SOCKET HEAD (M22X2.5X45-MM)
AVAILABLE REPAIR KIT(S):
177-2547 J KIT-SEAL (SWING MOTOR)
J KIT MARKED J SERVICES PART(S) MARKED J
M METRIC PART

242-6922 Retainer Plate for CAT 345GC 365BL 374FL 385B 390FL Excavators

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
