195-40-00901 1954000901 Steering Valve Excavator Hydraulic Pump For KOMATSU D375A
195-40-00901 1954000901 Steering Valve Excavator Hydraulic Pump For KOMATSU D375A
195-40-00901 1954000901 Steering Valve Excavator Hydraulic Pump For KOMATSU D375A
195-40-00901 1954000901 Steering Valve Excavator Hydraulic Pump For KOMATSU D375A
Specifications
Brand Name :
OEM
Model Number :
195-40-00901 1954000901
Place of Origin :
China
MOQ :
1 PCS
Price :
USD 3250/PCS
Payment Terms :
T/T,D/P,D/A,Western Union,L/C,MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Model number :
D375A
Part number :
195-40-00901 1954000901
Product name :
Steering valve
Applicable brand :
KOMATSU
Lead time :
1-3 days for delivery
Packing :
Standard Export Carton
Description

  • 195-40-00901 1954000901 Steering Valve Excavator Hydraulic Pump Fitting For KOMATSU D375A

  • Specification
Category KOMATSU Excavator Hydraulic Pump
Name Steering valve
Parts No 195-40-00901 1954000901
Machine Model

D375A
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing

  • Function and Application

1.Controlling the direction of hydraulic oil flow: As a key component of the hydraulic steering system, the steering valve is equipped with multiple oil ports, among which the P port is connected to the hydraulic pump, the O port is connected to the oil tank, and the A and B ports are respectively connected to the left and right chambers of the steering cylinder.


2.Increasing steering force and improving steering efficiency: The steering valve can increase the steering - wheel steering transmission force to the transmission mechanism and change the direction of force transmission.

  • Compatible models

BULLDOZERS D375A

  • More steering parts fit for KOMATSU machinery
195-40-00800 STEERING VALVE ASS'Y
D375A
195-40-00801 STEERING VALVE ASS'Y
D375A
195-40-00900 STEERING VALVE ASS'Y,(B)
D375A
195-22-00120 STEERING ASS'Y,(B)
D375A
19M-40-00011 STEERING VALVE ASS'Y
D575A
195-40-00100 STEERING VALVE ASS'Y
D375A, D475A
120-Y46-0110 STEERING CASE ASS'Y,(D41A-3A)
D40A, D40AM, D40F, D41A, D41E
561-40-15001 STEERING ASS'Y
HD780, HD785
130-22-00023 STEERING CLUTCH A.
D50P, D50S
130-22-00021 STEERING CLUTCH A.
D50P
360708067 STEERING
WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB70A, WB91R, WB93R, WB95R, WB97R, WB97S, WB98A, WH609, WH713
154-49-00080 STEERING RELIEF V.,-50ЯC
D85C
17M-22-52031 STEERING VALVE ASS'Y
D275A
113-22-00010 STEERING CLUTCH A.
D31A, D31P, D31PL, D31Q, D31S
19M-40-00010 STEERING VALVE ASS'Y
D575A
569-40-42500 STEERING VALVE ASS'Y
HD325, HD465

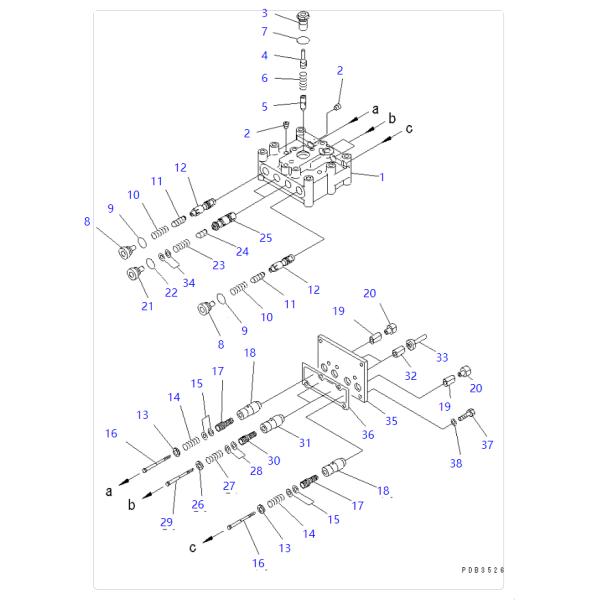

  • catalog parts list
Pos. Part No Qty Parts name Comments
195-40-00801 [1] STEERING VALVE ASS'Y Komatsu 35.1 kg.
["SN: 17261-UP"] analogs:["1954000800"] |$11.
195-40-00800 [1] STEERING VALVE ASS'Y Komatsu 35.1 kg.
["SN: 17001-17260"] analogs:["1954000801"] |$12.
195-40-00901 [1] STEERING VALVE ASS'Y,(B) Komatsu 28.11 kg.
["SN: 17261-UP"] |$13.
195-40-00900 [1] STEERING VALVE ASS'Y,(B) Komatsu 24.54 kg.
["SN: 17001-17260"] |$14.
1. 14X-40-11112 [1] BODY Komatsu 12 kg.
["SN: 17743-UP"] analogs:["14X4011111"]
1. 14X-40-11111 [1] BODY Komatsu 12 kg.
["SN: 17001-17742"]
2. 07043-70108 [4] PLUG Komatsu 0.005 kg.
["SN: 17001-UP"] analogs:["07043A0108"]
3. 14X-40-11650 [1] BODY Komatsu 0.08 kg.
["SN: 17001-UP"]
4. 14X-40-11660 [1] VALVE Komatsu 0.04 kg.
["SN: 17001-UP"]
5. 14X-40-11670 [1] VALVE Komatsu 0.045 kg.
["SN: 17001-UP"]
6. 07750-01628 [1] SPRING Komatsu 0.002 kg.
["SN: 17001-UP"]
7. 07002-22434 [1] O-RING Komatsu 1.1 kg.
["SN: 17001-UP"] analogs:["0700232434", "R0700222434"]
7. 07002-52434 [1] O-RING,(B) Komatsu China 0.02 kg.
["SN: 17001-UP"] analogs:["0700242434", "0700052434"]
8. 17A-40-11252 [2] PLUG Komatsu 0.17 kg.
["SN: 17001-UP"]
10. 195-40-43231 [2] SPRING Komatsu 0.013 kg.
["SN: 17001-UP"]
11. 19M-40-11160 [2] PISTON Komatsu 0.02 kg.
["SN: 17001-UP"]
12. 195-40-43211 [2] VALVE Komatsu China
["SN: 17001-UP"]
13. 14Z-40-11340 [2] GUIDE Komatsu 0.02 kg.
["SN: 17001-UP"]
14. 195-40-43241 [2] SPRING Komatsu 0.01 kg.
["SN: 17001-UP"]
15. 175-15-56470 [8] SHIM, 0.50MM Komatsu 0.001 kg.
["SN: 17001-UP"]
16. 14X-40-11221 [2] BOLT Komatsu 0.035 kg.
["SN: 17001-UP"]
17. 195-40-43221 [2] GUIDE Komatsu China
["SN: 17001-UP"]
18. 195-40-43251 [2] CYLINDER Komatsu China
["SN: 17001-UP"]
19. 14X-40-11261 [2] NUT Komatsu 0.095 kg.
["SN: 17001-UP"]
20. 14X-40-11272 [2] NUT Komatsu China
["SN: 17001-UP"]
21. 195-40-43162 [2] PLUG Komatsu China
["SN: 17261-UP"] analogs:["1954043161"]
21. 195-40-43161 [2] PLUG Komatsu China
["SN: 17001-17260"] analogs:["1954043162"]
23. 195-40-43131 [2] SPRING Komatsu 0.02 kg.
["SN: 17001-UP"]
24. 195-40-31540 [2] PISTON Komatsu 0.02 kg.
["SN: 17001-UP"]
25. 195-40-43111 [2] VALVE Komatsu 0.1 kg.
["SN: 17001-UP"]
27. 195-40-43142 [2] SPRING Komatsu 0.01 kg.
["SN: 17261-UP"]
27. 195-40-43141 [2] SPRING Komatsu China
["SN: 17001-17260"]
30. 195-40-43121 [2] GUIDE Komatsu China
["SN: 17001-UP"]
31. 195-40-43151 [2] CYLINDER Komatsu China
["SN: 17001-UP"]
33. 14X-40-11373 [2] NUT Komatsu China
["SN: 17001-UP"]
34. 424-15-16420 [8] SHIM, 0.5MM Komatsu 0.011 kg.
["SN: 17261-UP"]
35. 14X-40-11411 [1] COVER Komatsu China
["SN: 17001-UP"]
36. 14X-40-11421 [1] GASKET Komatsu 0.002 kg.
["SN: 17001-UP"]
37. 01010-81025 [2] BOLT Komatsu 0.36 kg.
["SN: 17001-UP"] analogs:["0101051025", "0101651025", "801015109"]
38. 01643-31032 [2] WASHER Komatsu 0.054 kg.
["SN: 17001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]

195-40-00901 1954000901 Steering Valve Excavator Hydraulic Pump For KOMATSU D375A

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .

  • Product Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
