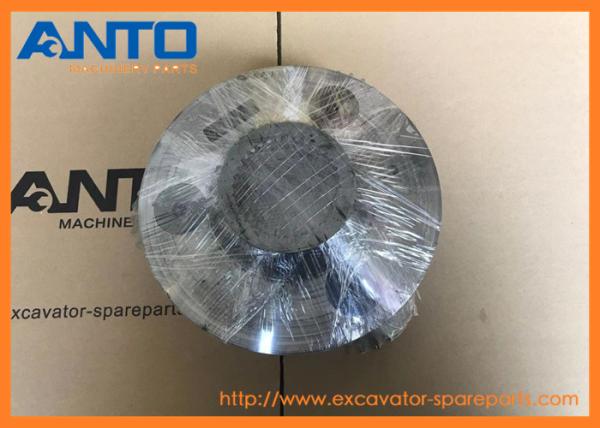

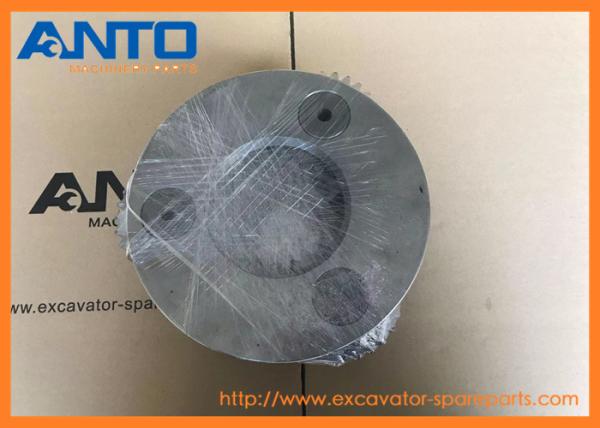

1484637 148-4637 Planetary Carrier Excavator Swing Motor For 318C 318E L 319C 319D
1484637 148-4637 Planetary Carrier Excavator Swing Motor For 318C 318E L 319C 319D
1484637 148-4637 Planetary Carrier Excavator Swing Motor For 318C 318E L 319C 319D
1484637 148-4637 Planetary Carrier Excavator Swing Motor For 318C 318E L 319C 319D
Specifications
Brand Name :
OEM
Model Number :
1484637 148-4637
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Model number :
318C 318E L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321C 321D LCR 323D L 323D LN 323D SA 323D2 L 323E L
Product name :
Planetary Carrier
Part number :
1484637 148-4637
Transportation :
By sea/air By express
Packing :
Standard Export Carton
Warranty :
6/12 Months
Description

  • 1484637 148-4637 Planetary Carrier Excavator Swing Motor For 318C 318E L 319C 319D

  • Specification

Application C A T excavator swing motor
Name Planetary Carrier
Parts No 1484637 148-4637
Model

318C 318E L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321C 321D LCR 323D L 323D LN 323D SA 323D2 L 323E L
Delivery time Stock for urgent delivery
Quality Brand new, OEM quality
MOQ 1 PCS
Design made in china
Means of transport By sea/air, DHL FEDEX UPS TNT Express
Packing As request or standard packing

  • Function

1. Supporting and connecting components: The planetary carrier is used to hold the planet gears, connecting them together and enabling them to rotate around the sun gear. It is the key to maintaining the relative position and motion relationship of each component in the planetary gear system, just like the framework of the planetary gear system, ensuring the orderly operation of the entire transmission mechanism.


2. Power transmission: It is an important part of power transmission. It can efficiently transmit the power from the engine to the wheels or tracks. By cooperating with the sun gear and the ring gear, different gear ratios can be realized, so as to meet the power requirements of the equipment in different working conditions, such as starting, accelerating, and cruising.

  • Applicable models

EXCAVATOR 318C 318E L 319C 319D 319D L 319D LN 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321C 321D LCR 323D L 323D LN 323D SA 323D2 L 323E L
MOBILE HYD POWER UNIT 323D L 323D LN

  • More carrier parts supplied to C A T machine
7Y1432 CARRIER
315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...
7Y1433 CARRIER
315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3...
1912578 CARRIER-PLANETARY
318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320...
1695599 CARRIER-PLANETARY
320C, 320C FM, 322C, 322C FM, 325C, 325C FM
1912571 CARRIER-PLANETARY
320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 322C FM, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 32...
1912686 CARRIER AS
320C, 320C FM, 320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 325C, 325C FM, 325D, 325D L, 325D MH, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS
2276119 CARRIER-PLANETARY
320C, 320C FM, 320D, 320D FM, 322C, 322C FM, 323D LN, 324D, 324D L, 324D LN, 325C, 325D, 325D L, 325D MH
2676799 CARRIER-PLANETARY
320D, 320D FM, 320D FM RR, 322C, 323D LN, 323D SA, 323E L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325D, 325D L, 325D MH, 326D L, 329D, 329D L, 329D LN, 329E, 329E L, 329E LN, OEMS
1912578 CARRIER-PLANETARY
318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 320E LN, 320E LRR, 320...
3079371 CARRIER
311D LRR, 312C, 312C L, 312D, 312D L, 314C, 314D LCR

  • Catalog part list
Pos. Part No Qty Parts name Comments
1 094-0584 [6] WASHER (40.3X72X1-MM THK)
2 094-1509 [3] SHAFT-PLANETARY
3 148-4733 [3] GEAR-PLANETARY (26-TEETH)
4 114-1581 [1] SPACER (57.5X74X6-MM THK)
5 148-4732 [1] GEAR-SUN (20-TEETH)
6 093-1729 [2] RING-RETAINING
7 148-4632 [1] GEAR-SUN (23-TEETH)
8 191-2578 [1] CARRIER-PLANETARY
9 7Y-1434 [1] SPACER (40X69.5X6-MM THK)
10 148-4637 [1] CARRIER-PLANETARY
11 148-4640 [1] RING-RETAINING
12 148-4643 [1] BEARING
13 095-1022 [1] BEARING-ROLLER
14 148-4642 [1] SEAL-O-RING
15 227-6228 [1] CAGE
16 453-3447 M [6] BOLT (M12X1.75X40-MM)
17 451-2182 [6] WASHER-HARD (13.5X25.5X3-MM THK)
18 199-4561 [2] SEAL-LIP TYPE
19 148-4636 [1] SHAFT-PINION
20 148-4638 [1] HOUSING
21 3K-0360 [1] SEAL-O-RING
22 6V-7238 [1] VALVE-SHUTOFF (SWING DRIVE)
23 148-4634 [3] SHAFT-PLANETARY
24 095-0891 [3] PIN-SPRING
25 148-4635 [1] GEAR-RING (73-TEETH)
26 148-4633 [3] GEAR-PLANETARY (25-TEETH)
27 7Y-0252 [6] BEARING AS-ROLLER
28 094-0611 [6] WASHER (47.3X76X1-MM THK)
29 095-0886 [3] PIN-SPRING
30 094-1516 [3] BEARING-ROLLER
31 171-9383 [1] SPACER
1U-8846 BF SEALANT-GASKET
B USE AS REQUIRED
F NOT SHOWN
M METRIC PART

1484637 148-4637 Planetary Carrier Excavator Swing Motor For 318C 318E L 319C 319D

  • Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Offer Top quality & competitive products


2. Support 6-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
