XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
Specifications
Brand Name :
OEM
Model Number :
XKAQ00123 XKAQ-00123
Place of Origin :
China
MOQ :
1 PCS
Price :
USD 23/PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
HYUNDAI Excavator Swing Gear
Parts name :
Planet gear 2
PAH01054 XKAH-01054arts number :
XKAQ00123 XKAQ-00123
Models :
R250LC7 R250LC7A
Lead time :
Stock for soon delivery
Warranty :
6/12 Months
Description
  • XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A

  • Specification
spare parts name Planet gear 2
Equipment Model R250LC7 R250LC7A
Parts Category HYUNDAI Excavator Swing gear
Spare parts Condition Brand new, OEM quality
MOQ of order(PCS, SET) 1 PCS
Parts Availability In stock
Delivery Lead time 1-3 days

  • Function

1.Speed Reduction and Torque Increase: This is one of the main functions of planet gears. By means of the meshing relationship between the sun gear, planet gears, and ring gear, the high - speed and low - torque power from the engine or motor can be converted into low - speed and high - torque power, providing sufficient driving force for the movement of the excavator and the operation of various working devices, enabling it to complete heavy - duty operations.


2.Power Shunt: Planet gears can distribute the input power to multiple planet gears, and each planet gear shares the load. This not only improves the load - bearing capacity of the gear system but also makes the power transmission more balanced and stable, reducing the wear and tear of single gears and prolonging the service life of the entire transmission system.

  • Compatible models

7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A

9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S RB260LC9S

  • More other gear parts applicable for HYUNDAI machine
3929027 GEAR-CRANKSHAFT
100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL...
3905427 GEAR-FLYWHEEL RING
100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,...
4896380 GEAR-CAMSHAFT
HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A
M230X-00671 GEAR ASSY
R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S
4893389 GEAR-FUEL PUMP
R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A
39Q5-12270 GEAR-PLANETARY 1
HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S
39Q5-12320 GEAR-SUN 1
HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S
ZGAQ-04882 GEAR-RING
R160W9A, R170W9, R180W9A, R180W9S
ZGAQ-01991 GEAR SHIFT SENSOR 1
R200W7
ZGAQ-01992 GEAR SHIFT SENSOR 3
R200W7, R210W9S
XKAQ-00405 GEAR-SUN 2
R210LC9
ZGAQ-02404 GEAR SHIFT SENSOR 1
R210W9S

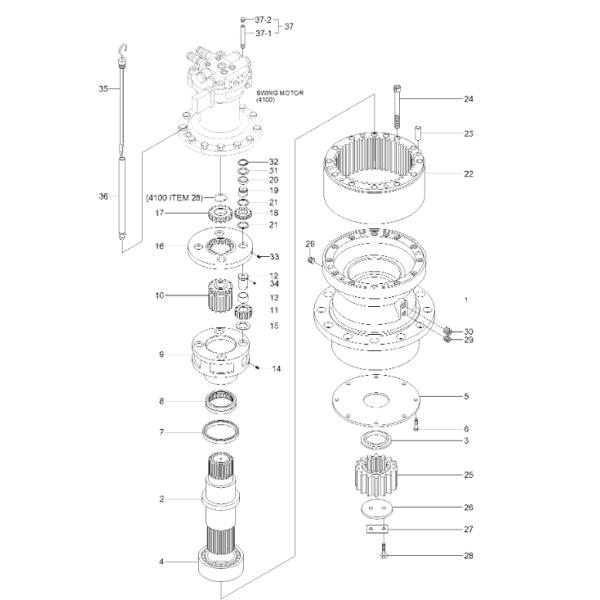

  • Parts list diagram
Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4100
*-2. 31EN-10070 [1] SWING REDUCTION GEAR
*-2. 31EN-10071 [1] SWING REDUCTION GEAR
1 XKAQ-00632 [1] CASING
1 XKAQ-00633 [1] CASING
2 XKAQ-00115 [1] SHAFT
3 XKAQ-00116 [1] SPACER
4 XKAQ-00117 [1] BEARING-ROLLER
5 XKAQ-00118 [1] PLATE-COVER
6 XKAQ-00064 [8] BOLT-HEX
7 XKAQ-00119 [1] SEAL-OIL
8 XKAQ-00120 [1] BEARING-ROLLER
9 XKAQ-00121 [1] CARRIER 2
10 XKAQ-00122 [1] GEAR-SUN 2
10 XKAQ-00634 [1] GEAR-SUN 2
11 XKAQ-00123 [4] GEAR-PLANET 2
12 XKAQ-00124 [4] PIN 2
N13. XKAQ-00533 [4] BUSHING 2
N34. @ [4] PIN-SPRING
14 XKAQ-00050 [4] PIN-SPRING
15 XKAQ-00071 [4] WASHER-THRUST
16 XKAQ-00126 [1] CARRIER 1
17 XKAQ-00127 [1] GEAR-SUN 1
18 XKAQ-00128 [4] GEAR-PLANET 1
19 XKAQ-00019 [4] PIN 1
20 XKAQ-00030 [4] CAGE-NEEDLE
21 XKAQ-00129 [4] NEEDLE CAGE
22 XKAQ-00635 [1] GEAR-RING
23 XKAQ-00072 [4] PIN-KNOCK
24 XKAQ-00131 [12] BOLT-SOCKET
25 XKAQ-00132 [1] GEAR-PINION
26 XKAQ-00296 [1] PLATE-LOCK
27 XKAQ-00292 [1] WASHER-LOCK
28 XKAQ-00042 [2] BOLT-HEX
29 XKAQ-00066 [2] PLUG
30 XKAQ-00049 [1] PLUG
31 XKAQ-00040 [4] PLATE-SIDE 2
32 XKAQ-00041 [4] RING-STOP
33 XKAQ-00048 [4] PIN-SPRING
34 XKAQ-00133 [1] PIN-SPRING
35 XKAQ-00166 [1] BAR-GAUGE
35 XKAQ-00034 [1] BAR-GAUGE
36 XKAQ-00167 [1] PIPE-GAUGE
36 XKAQ-00035 [1] PIPE-GAUGE
37 XKAQ-00143 [1] POST-AIR BREATHER
37-1. @ [1] POST
37-2. XKAQ-00797 [1] CAP-ARI BREATHER
*-1. @ [1] SWING MOTOR UNIT SEE 4100
N. @ [1] NOT SUPPLIED PARTS

XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A

  • Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
