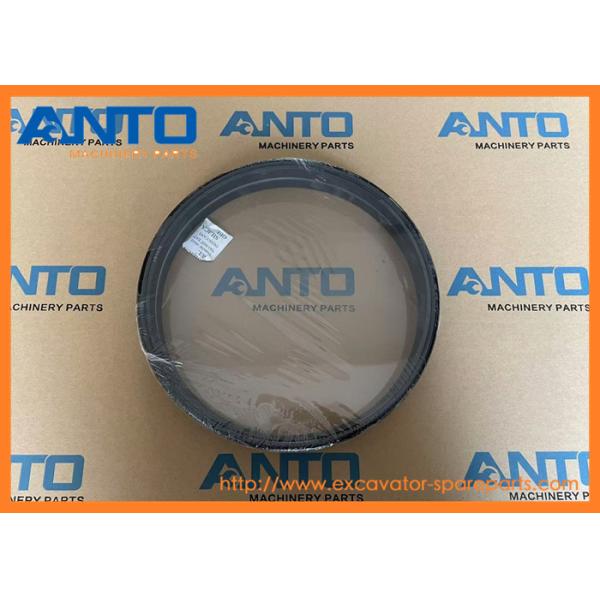

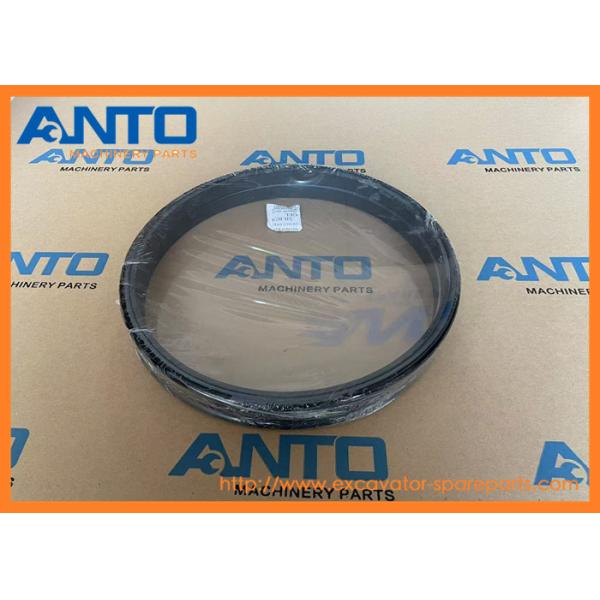

186-3277 1863277 Seal Gp-Duo-Cone Excavator Spare Parts For C9.3 140
186-3277 1863277 Seal Gp-Duo-Cone Excavator Spare Parts For C9.3 140
186-3277 1863277 Seal Gp-Duo-Cone Excavator Spare Parts For C9.3 140
186-3277 1863277 Seal Gp-Duo-Cone Excavator Spare Parts For C9.3 140
Specifications
Brand Name :
OEM
Model Number :
186-3277 1863277
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Final Drive
Machine model :
D7E D7E LGP
Application :
Excavator, Motor Grader
Product name :
Seal Gp-Duo-Cone
Part number :
186-3277 1863277
Packing :
Standard Export Carton
Description
  • 186-3277 1863277 Seal Gp-Duo-Cone Excavator Spare Parts Fit For C9.3 140

  • Specification
Name Seal Gp-Duo-Cone
Parts No 186-3277 1863277
Machine Model D7E D7E LGP
Category Final Drive
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing

  • Compatible models

TRACK-TYPE TRACTOR D7E D7E LGP Cater.pillar.

  • More other seal parts fit for C A T machine
6T3377 SEAL GP-DUO-CONE
16M
1757901 SEAL-O-RING
120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 160M, 160M 2, 160M 3, 160M 3 AWD
2780642 SEAL-LIP TYPE
120K, 120K 2, 12K, 140K, 140K 2, 160K
4D0907 SEAL
12G, 130G, 140, 140B, 140G, 14E, 14G, 16G
5F4258 SEAL
120G, 12G, 14G, 16G
3G1689 SEAL KIT
14G, 16G
2G7003 SEAL (plastic)
120G

  • Catalog parts list
Pos. Part No Qty Parts name Comments
1 1J-9227 [2] BEARING
2 1P-9005 [1] SEAL-O-RING
3 2K-2939 [1] SEAL-O-RING
4 2R-0098 [1] SEAL-O-RING
5 3D-9133 [1] CUP-BEARING
6 8G-8845 [1] COVER
7 9H-3360 [1] SEAL-O-RING
8 9M-5892 [1] SEAL-O-RING
9 126-0588 [1] CONE-SPECIAL TAPERED
10 284-7844 [1] GEAR-RING (74-TEETH)
11 284-7845 [3] GEAR-PLANETARY (29-TEETH)
12 284-7915 [1] RETAINER-BEARING
13 284-7924 [3] SHAFT
14 284-7925 [3] COVER
15 284-7926 [1] HUB-REACTION
16 284-7936 [1] RING
17 287-7310 [1] PLUG-MAGNETIC (FINAL DRIVE, OIL FILL, CHECK)
18 314-6953 [1] HOUSING
19 314-6954 [1] GEAR-PINION (27-TEETH)
20 314-6955 [1] GEAR (99-TEETH)
21 314-6957 [1] COVER
22 317-0801 [1] RING
23 319-0376 [1] SPINDLE
24 344-8499 [1] HUB-SPROCKET
25 353-7100 [1] COVER & BEARING AS
25A. 8E-0618 [1] BEARING-THRUST
26 355-7037 [1] CARRIER-PLANETARY
27 358-4861 [1] RETAINER
28 152-6144 [1] PLUG AS-DRAIN (MAGNETIC)(FINAL DRIVE, OIL DRAIN)
6V-6228 [1] SEAL-O-RING
29 186-3277 [1] SEAL GP-DUO-CONE
30 226-4192 [30] WASHER-HARD (21.5X35X8-MM THK)
31 282-0946 [25] BOLT (M20X2.5X50-MM)
32 3D-2992 [1] SEAL
33 5D-6296 [1] CONE-BEARING
34 5D-6298 [1] CUP-BEARING
35 5P-4920 [2] RACE & ROLLER AS
36 5P-4921 [2] RACE-BEARING OUTER
37 6F-8146 [1] SEAL-O-RING
38 6H-3566 [6] CONE-BEARING
39 6H-3568 [6] CUP-BEARING
40 6V-7970 [1] SEAL-O-RING
41 6V-8150 M [12] BOLT (M12X1.75X60-MM)
42 7X-2563 M [30] BOLT (M20X2.5X60-MM)
43 8C-5193 [1] SEAL-O-RING
44 8T-3282 [25] WASHER-HARD (22X35X3.5-MM THK)
45 8T-4121 [20] WASHER-HARD (11X21X2.5-MM THK)
46 8T-4136 M [3] BOLT (M10X1.5X25-MM)
47 8T-4195 M [17] BOLT (M10X1.5X30-MM)
48 9T-3931 [1] PLUG (FINAL DRIVE, OIL DRAIN)
49 9X-2125 M [6] BOLT-LOCKING (M10X1.5X25-MM)
M METRIC PART

186-3277 1863277 Seal Gp-Duo-Cone Excavator Spare Parts For C9.3 140

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Advantage

1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
