• 9C0566 9C-0566 Brake Lining Used For Truck Spare Parts 725 725C 730 730C D250D

• Specifiion

• Applicable models

ARTICULATED TRUCK C A T

725 725C 730 730C D250D D250E D250E II D300D D300E D300E II D350E D400E

CHALLENGER 65 65E 75E 85E 95E
EJECTOR TRUCK 730 730C
TOWED SCRAPER TS180 TS185 TS220 TS225
TRACTOR 776C
TRUCK 773B 777B
WAGON 613C II
WHEEL LOADER 916 936 950B G936
WHEEL SCRAPER 613C 613C II
WHEEL SKIDDER 518 528 528B 530B
WHEEL TRACTOR 613C 613C II
WHEEL TRACTOR-SCRAPER 613G

• More lining supplied to C A T machine

  9C0567 LINING AS-BRAKE

  518, 528, 528B, 530B, 613C, 613C II, 613G, 65, 65E, 725, 725C, 730, 730C, 75E, 773B, 776C, 777B, 85E, 916, 936, 950B, 95E, D250D, D250E, D250E II, D300D, D300E, D300E II, D350E, D400E, G936, TS180, TS...

  4Y2994 LINING KIT

  916, 936

  1149297 LINING AS-BRAKE

  69D, 769C, 769D, 770, 770G, 770G OEM, 771C, 771D, 772, 772B, 772G, 772G OEM, 773B, 773D, 773E, 773F, 773G, 773G LRC, 773G OEM, 775B, 775D, 775E, 775F, 775G, 775G LRC, 775G OEM, 776D, 777D, 777F

  1149299 LINING AS-BRAKE

  69D, 769C, 769D, 770, 770G, 770G OEM, 771C, 771D, 772, 772B, 772G, 772G OEM, 773B, 773D, 773E, 773F, 773G, 773G LRC, 773G OEM, 775B, 775D, 775E, 775F, 775G, 775G LRC, 775G OEM, 776D, 777D, 777F

  1279145 LINING AS

  D350E, D400E

  7V9485 LINING

  518, 518C

  9C0567 LINING AS-BRAKE

  518, 528, 528B, 530B, 613C, 613C II, 613G, 65, 65E, 725, 725C, 730, 730C, 75E, 773B, 776C, 777B, 85E, 916, 936, 950B, 95E, D250D, D250E, D250E II, D300D, D300E, D300E II, D350E, D400E, G936, TS180, TS...

  4V2239 LINING & BAND AS

  931B, 941, D3B, D4C, D4E

  5G1073 LINING & BAND AS

  931, 931B, 931C, D3, D3B, D3C

  1L9969 LINING

  D397D

  8F2014 LINING

  D364, D375D

  3F8114 LINING

  D342

  6F9378 LINING

  D375D, D397D

  3F8699 LINING

  D315

  8F3273 LINING

  3406, 3406B, 3408, 3408C, 3408E, 3412, D348, D353C, D364, D397D, G379

  9C0568 LINING AS-BRAKE

  518, 528, 528B, 530B, 613C, 613C II, 613G, 65, 65E, 725, 725C, 730, 730C, 75E, 773B, 776C, 777B, 85E, 916, 936, 950B, 95E, D250D, D250E, D250E II, D300D, D300E, D300E II, D350E, D400E, G936, TS181, TS...

• alog parts list

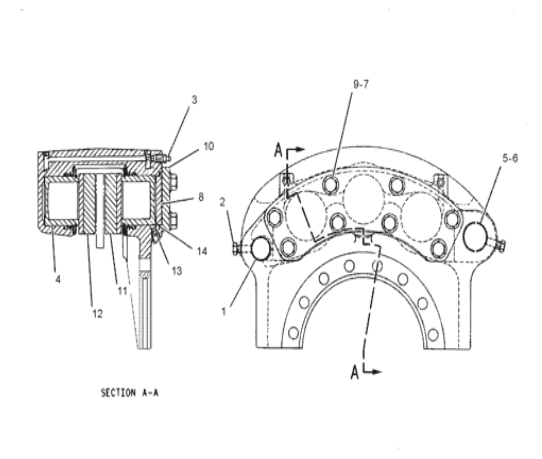

  Pos.	Part No	Qty	Parts name	Comments
  1	4V-7277	[2]	PIN
  2	3V-0197	[4]	BOLT (3/8-16X1-IN)
  3	7K-4942	[2]	SCREW-PURGE
  4	4V-4852	[6]	PISTON
  5	9V-6167	[2]	PIN
  6	8F-0212	[4]	SEAL-O-RING
  7	4D-6433	[8]	WASHER-HARD (12X25.5X2-MM THK)
  8	6W-7379	[3]	PLUG
  9	4F-8965	[8]	BOLT (7/16-14X1.125-IN)
  10	4V-4854	[1]	COVER
  11	9C-0567	[1]	LINING AS-BRAKE
  12	9C-0566	[1]	LINING AS-BRAKE
  13	5P-8867	[1]	INSERT-FLARED
  14	133-6104	[3]	SEAL
  			AVAILABLE REPAIR KIT(S):
  	8W-4158	[1]	KIT-SEAL (HEAVY DUTY)
  			(INCLUDES BOOTS, PACKING & PACKING AS)



• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
