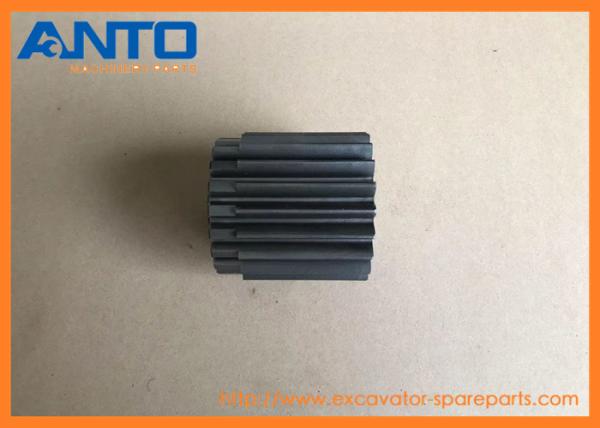

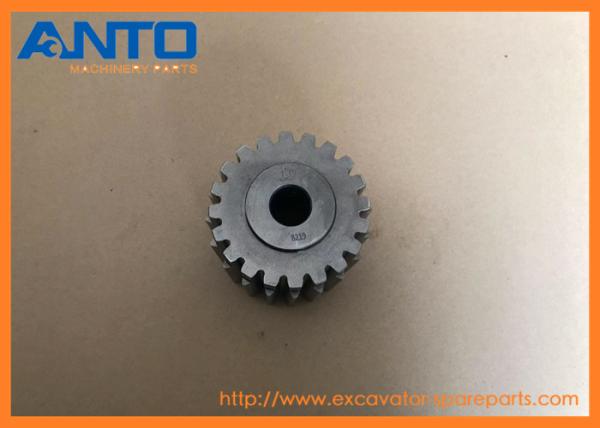

XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A
XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A
XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A
XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A
XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A
XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A
Specifications
Brand Name :
OEM
Model Number :
XKAQ00755 XKAQ-00755
Place of Origin :
China
MOQ :
1 PCS
Price :
USD 21/PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
HYUNDAI Excavator Swing Gear
Parts name :
Sun gear 2
Parts number :
XKAQ00755 XKAQ-00755
Models :
R450LC7 R450LC7A R500LC7 R500LC7A RD510LC-7
Lead time :
Stock for soon delivery
Warranty :
6/12 Months
Description
  • XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A

  • Specification
spare parts name Sun gear 2
Equipment Model R450LC7 R450LC7A R500LC7 R500LC7A RD510LC-7
Parts Category HYUNDAI Excavator Swing Gear
Spare parts Condition Brand new, OEM quality
MOQ of order(PCS, SET) 1 PCS
Parts Availability In stock
Delivery Lead time 1-3 days

  • Function

1.Central Power Transmission Hub:
In a planetary gear set, the sun gear is the central, typically smaller gear around which other components (planet gears, ring gear) rotate. Sun Gear 2 acts as a core driver or driven element, transferring rotational power between the input (e.g., engine or motor) and output (e.g., wheels or hydraulic systems) of the gearbox.


2.Speed and Torque Modulation:
By interacting with planet gears (which mesh with both the sun gear and a stationary or rotating ring gear), Sun Gear 2 enables precise control over speed and torque. Depending on whether it is driven, held stationary, or allowed to rotate freely, it helps adjust the gear ratio—either increasing torque (for heavy loads) or increasing speed (for efficiency).

  • Compatible models

7-SERIES CRAWLER EXCAVATOR R450LC7 R450LC7A R500LC7 R500LC7A RD510LC-7

9-SERIES CRAWLER EXCAVATOR R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S RB160LC9S RB220LC9S RD220LC9

9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R170W9S R180W9A R180W9S R210W-9 R210W9A R210W9AMH R210W9MH R210W9S

F-SERIES CRAWLER EXCAVATOR HX160L HX180L

  • More other gear parts applicable for HYUNDAI machine
3929027 GEAR-CRANKSHAFT
100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL...
3905427 GEAR-FLYWHEEL RING
100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,...
4893389 GEAR-FUEL PUMP
R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A
XKBH-01834 GEAR-IDLER 2
R210LC7H, R210LC9BH
XKBH-01847 GEAR-IDLER 2
R210LC7H, R210LC9BH
XKBH-01929 GEAR & CASE ASSY
R210LC7H, R210LC9BH
XKBH-01932 GEAR-OIL PUMP DRIV
R210LC7H, R210LC9BH
XKBH-02183 GEAR SET
R210LC7H, R210LC9BH
XKBH-02185 GEAR
R210LC7H, R210LC9BH
XKDE-01126 GEAR-FUEL PUMP
R210W9S, R260LC9S, RD220-7, RD220LC9
5284293 GEAR-FUEL PUMP
R215LC7, RD210-7
3978313 GEAR-FLYWHEEL RING
R215LC7, RD210-7

  • Parts list diagram
Pos. Part No Qty Parts name Comments
*. 31Q6-10141 [1] SWING REDUCTION GEAR
1 XKAQ-00962 [1] CASING
2 XKAQ-01007 [1] 드라이브샤프트
3 XKAQ-00026 [1] BEARING-ROLLER
4 XKAQ-00032 [1] SEAL-OIL
5 XKAQ-00961 [1] BEARING-ROLLER
6 XKAQ-00779 [1] GEAR-RING
7 XKAQ-01008 [1] NO.2 CARRIER
8 XKAQ-00023 [3] GEAR-PLANET 2
9 XKAQ-00643 [3] PIN ASSY 2
10 XKAQ-00071 [6] WASHER-THRUST
11 XKAQ-01009 [3] SPRING PIN
12 XKAQ-00755 [1] GEAR-SUN 2
13 XKAQ-00531 [1] CARRIER 1
14 XKAQ-00025 [3] GEAR-PLANET 1
15 XKAQ-00415 [3] PIN 1
16 XKAQ-00030 [3] CAGE-NEEDLE
17 XKAQ-00057 [3] PLATE-SIDE 1
18 XKAQ-00040 [3] PLATE-SIDE 2
19 XKAQ-00534 [1] PLATE-SIDE 3
20 XKAQ-00048 [3] PIN-SPRING
21 XKAQ-00041 [3] RING-STOP
22 XKAQ-00010 [1] GEAR-SUN 1
23 XKAQ-01010 [1] COVER PLATE
24 XKAQ-00064 [8] BOLT-HEX
25 XKAQ-01010 [1] COVER PLATE
26 XKAQ-01012 [1] SPACER PIPE
27 XKAQ-01013 [1] WIRE
28 XKAQ-00447 [1] PLATE 3-THRUST
29 XKAQ-00072 [2] PIN-KNOCK
30 XKAQ-00065 [12] BOLT-SOCKET
31 XKAQ-00049 [1] PLUG
32 XKAQ-00066 [2] PLUG

XKAQ00755 XKAQ-00755 Sun Gear 2 Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A

  • Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts catalog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
