154-15-42150 1541542150 Collar KOMATSU Bulldozer Spare Parts Fitting For D85A D85E D85P
154-15-42150 1541542150 Collar KOMATSU Bulldozer Spare Parts Fitting For D85A D85E D85P
154-15-42150 1541542150 Collar KOMATSU Bulldozer Spare Parts Fitting For D85A D85E D85P
154-15-42150 1541542150 Collar KOMATSU Bulldozer Spare Parts Fitting For D85A D85E D85P
Specifications
Brand Name :
OEM
Model Number :
154-15-42150 1541542150
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Transmission Gear and Shaft
Part number :
154-15-42150 1541542150
Product name :
Collar
Machine number :
D85A D85E D85P
Application :
Bulldozer
Lead time :
1-3 days for delivery
Packing :
Standard Export Carton
Description

  • 154-15-42150 1541542150 Collar KOMATSU Bulldozer Spare Parts Fitting For D85A D85E D85P

  • Specifiion

Category Transmission Gear and Shaft
Name Collar
Parts No 154-15-42150 1541542150
Machine Number D85A D85E D85P
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT
Packing As request or standard packing

  • Key functions & working principle
Working Principle 1. Solid Collar: Press-fit onto the shaft (interference fit) during assembly – the slight dimensional difference between collar bore and shaft creates a tight bond that resists axial/radial movement. Installed via press machine (no fasteners needed).
2. Split-Set Collar: Positioned on the shaft at the desired location; tightening the clamp bolts compresses the split collar, reducing the bore diameter and clamping the collar tightly to the shaft. The friction between collar and shaft prevents axial sliding, while a keyway (if fitted) blocks radial rotation.
3. Load Resistance: The collar abuts against a shoulder on the shaft or adjacent component (e.g., gear, bearing), transferring axial loads to the shaft housing and preventing component displacement during operation.
Core Functions 1. Axial Positioning: Secures shafts, gears, bearings, and cylinder rods in a fixed axial position – prevents end-to-end movement that could damage seals, gears, or bearings
2. Radial Locking: (With keyway) Stops rotational slippage between collar and shaft – ensures torque transfer in drive train components
3. Load Distribution: Distributes axial loads from moving components (e.g., hydraulic cylinder piston) to the shaft housing – reduces stress on individual components
4. Easy Maintenance: Split-set design enables quick replacement without disassembling the entire shaft assembly – minimizes equipment downtime

  • Compatible models

BULLDOZERS D85A D85E D85P
PIPELAYERS D85C Komatsu

  • More other collar applied to KOMATSU heavey machine
700-22-11430 COLLAR
505, 507, BC100, D20A, D20AG, D20P, D20PG, D20PL, D20PLL, D20Q, D20QG, D20S, D21A, D21AG, D21E, D21P, D275A, D375A, D475A, D475ASD, D85MS
707-69-10700 COLLAR
D85A, D85E, D85P
175-916-1220 COLLAR
D135A, D155A, D355C, D85A, D85E, D85P
156-70-12320 COLLAR
D85C
156-76-21550 COLLAR
D85C
175-916-1210 COLLAR
D135A, D155A, D355C, D85A, D85E, D85P
195-978-2210 COLLAR
D150A, D155A, D155S, D355A, D80A, D80E, D80P, D85A, D85E, D85P, D95S
150-15-11670 COLLAR
D80A, D80E, D80P, D85C
154-30-25220 COLLAR
D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85EX, D85MS, D85P, D85PX, DRAWBAR,
154-15-42171 COLLAR
D85A, D85C, D85E, D85P
154-15-42160 COLLAR
D85A, D85C, D85E, D85P
154-30-26193 COLLAR
D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S
154-30-26183 COLLAR
D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S
154-30-25220 COLLAR
D75S, D80A, D80E, D80P, D85A, D85C, D85E, D85EX, D85MS, D85P, D85PX, DRAWBAR,
150-15-11731 COLLAR
D80A, D80E, D80P
154-30-74291 COLLAR,OUTER
D85EX, D85MS, D85PX, DRAWBAR,
154-30-74281 COLLAR,INNER
D85EX, D85MS, D85PX, DRAWBAR,
707-88-39640 COLLAR
D85EX
154-27-72350 COLLAR
D85EX, D85MS, D85PX, DRAWBAR,
154-78-32440 COLLAR
D85A, D85E, D85EX, D85MS
175-15-62830 COLLAR
D85A, D85C, D85E, D85P

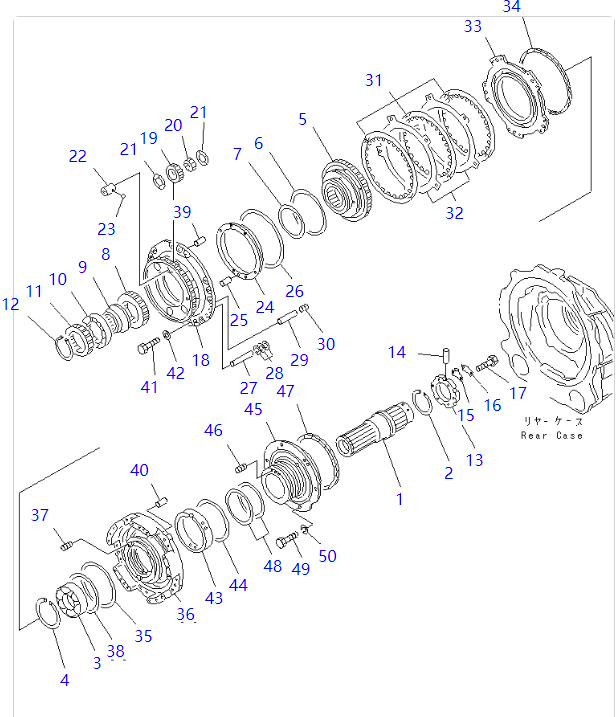

  • Directory listing
Pos. Part No Qty Parts name Comments
154-15-01082 [1] TRANSMISSION ASS'Y Komatsu 745.01 kg.
["SN: 36537-UP"] |$2.
154-15-01120 [1] TRANSMISSION ASS'Y Komatsu 0.000 kg.
["SN: 36537-UP"] |$4.
1 154-15-42131 [1] SHAFT Komatsu 11.8 kg.
["SN: 36537-UP"]
2 07018-11205 [1] RING,SEAL Komatsu 0.062 kg.
["SN: 36537-UP"]
3 06000-06019 [1] BEARING Komatsu China 1.271 kg.
["SN: 36537-UP"]
4 04071-00145 [1] RING,SNAP Komatsu 0.13 kg.
["SN: 36537-UP"] analogs:["R0407100145"]
5 154-15-42270 [1] HUB Komatsu 8.3 kg.
["SN: 36537-UP"]
6 07018-12205 [1] RING,SEAL Komatsu China 0.137 kg.
["SN: 36537-UP"]
7 144-15-11290 [1] RING,SEAL Komatsu China 0.056 kg.
["SN: 36537-UP"]
8 154-15-42210 [1] GEAR Komatsu 2 kg.
["SN: 36537-UP"]
9 154-15-42150 [1] COLLAR Komatsu China
["SN: 36537-UP"]
10 06000-06922 [1] BEARING Komatsu China 0.91 kg.
["SN: 36537-UP"]
11 154-15-42220 [1] GEAR Komatsu 1.65 kg.
["SN: 36537-UP"]
12 04064-09530 [1] RING,SNAP Komatsu China 0.05 kg.
["SN: 36537-UP"]
13 234-21-12180 [1] NUT Komatsu 0.63 kg.
["SN: 36537-UP"]
14 175-15-42220 [1] PIN Komatsu China
["SN: 36537-UP"]
15 234-21-12190 [1] PLATE Komatsu China
["SN: 36537-UP"]
16 234-21-12210 [1] PLATE (KIT) Komatsu 0.01 kg.
["SN: 36537-UP"]
17 01010-80814 [2] BOLT Komatsu 0.011 kg.
["SN: 36537-UP"]
18 154-15-42310 [1] CARRIER Komatsu 17.8 kg.
["SN: 36537-UP"]
19 154-15-42410 [4] GEAR Komatsu 0.36 kg.
["SN: 36537-UP"]
20 154-15-49410 [4] BEARING Komatsu 0.9 kg.
["SN: 36537-UP"]
21 569-15-32560 [8] WASHER,THRUST Komatsu China 0.04 kg.
["SN: 36537-UP"]
22 154-15-42510 [4] SHAFT Komatsu 0.37 kg.
["SN: 36537-UP"]
23 04260-00635 [4] BALL Komatsu 0.012 kg.
["SN: 36537-UP"] analogs:["805750022", "YM24190080001", "21D0986810"]
24 154-15-42930 [1] COVER Komatsu 1.65 kg.
["SN: 36537-UP"]
25 04020-00616 [1] PIN,DOWEL Komatsu 0.004 kg.
["SN: 36537-UP"]
26 568-15-12950 [1] RING,SNAP Komatsu 0.109 kg.
["SN: 36537-UP"]
27 154-15-41270 [5] PIN Komatsu China
["SN: 36537-UP"]
28 175-15-42880 [15] SPRING Komatsu China 0.01 kg.
["SN: 36537-UP"]
29 154-15-41290 [10] PIN Komatsu 0.05 kg.
["SN: 36537-UP"]
30 421-15-12910 [10] SPRING Komatsu 0.015 kg.
["SN: 36537-UP"]
31 424-15-12711 [3] DISC Komatsu China 1 kg.
["SN: (5232)-UP"] analogs:["4241512710", "1351522713", "1351522712"]
31 424-15-12710 [3] DISC Komatsu China 1 kg.
["SN: 36537-(5231)"] analogs:["4241512711", "1351522713", "1351522712"]
32 424-15-12720 [2] PLATE Komatsu 1.5 kg.
["SN: 36537-UP"] analogs:["7128512720"]
33 175-15-62730 [1] PISTON Komatsu 9.35 kg.
["SN: 36537-UP"]
34 195-15-49210 [1] RING,SEAL Komatsu China 0.028 kg.
["SN: 36537-UP"]
35 113-15-29250 [1] RING,SEAL Komatsu OEM 0.012 kg.
["SN: 36537-UP"]
154-15-01220 [1] HOUSING ASS'Y Komatsu 24.21 kg.
["SN: 36537-UP"] |$42.
37 566-15-41320 [2] PLUG Komatsu China
["SN: 36537-UP"]
38 195-15-49240 [1] RING,SEAL Komatsu China 0.05 kg.
["SN: 36537-UP"] analogs:["1951539280"]
39 04020-01228 [2] PIN,DOWEL Komatsu 0.026 kg.
["SN: 36537-UP"] analogs:["21T3016190"]
41 01010-81235 [15] BOLT Komatsu 0.048 kg.
["SN: 36537-UP"] analogs:["0101051235", "01010E1235", "801015136"]
42 01643-31232 [15] WASHER Komatsu 0.027 kg.
["SN: 36537-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
43 175-15-62830 [1] COLLAR Komatsu 1.74 kg.
["SN: 36537-UP"]
44 125-15-29510 [1] RING Komatsu 0.06 kg.
["SN: 36537-UP"]
154-15-01210 [1] CAGE ASS'Y Komatsu 16.01 kg.
["SN: 36537-UP"] |$52.
46 175-15-11230 [3] PLUG Komatsu 0.01 kg.
["SN: 36537-UP"]
47 154-15-49210 [1] RING,SEAL (KIT) Komatsu China 0.02 kg.
["SN: 36537-UP"]
48 19M-15-19260 [2] RING,SEAL Komatsu China 0.12 kg.
["SN: 36537-UP"]
49 01010-61435 [6] BOLT Komatsu China 0.06 kg.
["SN: 36537-UP"] analogs:["0101051435", "0101031435", "0101081435"]
50 01643-31445 [6] WASHER Komatsu 0.019 kg.
["SN: 36537-UP"] analogs:["0164301432"]

154-15-42150 1541542150 Collar KOMATSU Bulldozer Spare Parts Fitting For D85A D85E D85P

  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

  • Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
