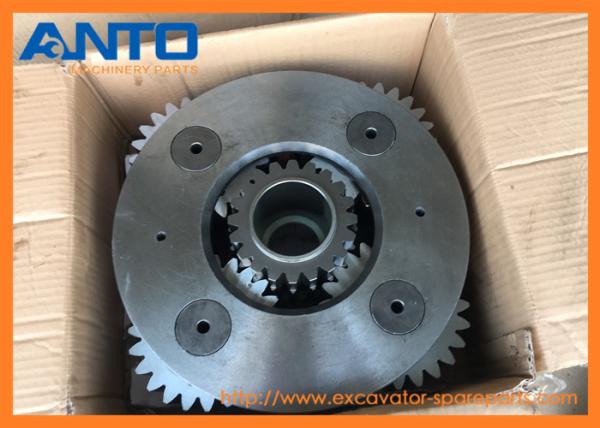

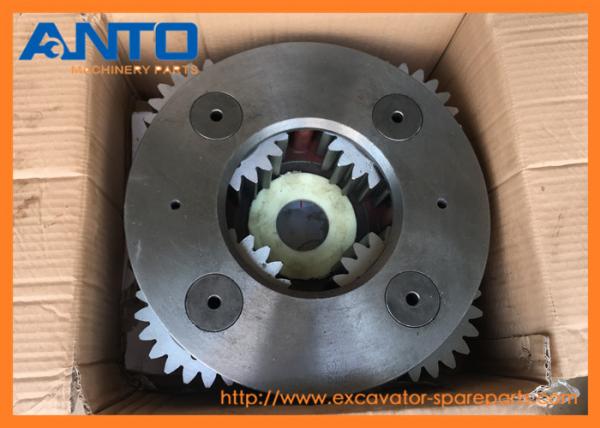

VOE14566410 14566410 EC290B EC360B Excavator Travel Gearbox Planet Carrier Assy No.3
VOE14566410 14566410 EC290B EC360B Excavator Travel Gearbox Planet Carrier Assy No.3
VOE14566410 14566410 EC290B EC360B Excavator Travel Gearbox Planet Carrier Assy No.3
VOE14566410 14566410 EC290B EC360B Excavator Travel Gearbox Planet Carrier Assy No.3
Specifications
Brand Name :
OEM
Model Number :
EC290B EC360B
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
D/P, D/A, T/T, L/C, Western Union, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Product name :
planet carrier no.3
Excavator model :
EC290B EC360B
parts number :
14566410
Warranty :
6 months
Category :
Excavator Final Drive
Packing :
Standard Wooden box
Description

​

  • VOE14566410 14566410 EC290B EC360B Excavator Travel Gearbox Planet Carrier Assy No.3

  • Spec Sheet

Excavator spare parts name planet carrier No.3
Equipment Model EC290B EC360B
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days


  • Application

EC240C EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D EC350E EC360B EC360C EC360CHR EC380D EC380DHR EC380E EC380EHR ECR305C FC2924C FC3329C PL3005D Vo-lvo.Heavy

  • Parts Diagram

VOE14566410 14566410 EC290B EC360B Excavator Travel Gearbox Planet Carrier Assy No.3

Pos. Part No Qty Parts name Comments
VOE14569763 [1] Gearbox S/N -19601/-50120/-86207/-358
VOE14704139 [1] Travel gearbox S/N 19602-/50121-/86208-
1 VOE14570930 [1] Housing
2 VOE14566409 [1] Gear
3 SA9213-20000 [18] Spring washer
4 VOE60110006 [19] Hexagon screw
5 VOE14566432 [1] Cover
6 VOE14883847 [2] Plug
7 SA7117-38230 [2] Bearing S/N -19601/-50120/-86207/-358
7 VOE14704141 [2] Bearing S/N 19602-/50121-/86208-
8 VOE14566403 [1] Retainer
9 VOE14566404 [REQ] Shim THICK = 0,1 mm
9 VOE14566405 [REQ] Shim THICK = 0,5 mm
9 VOE14566406 [REQ] Shim THICK = 0,7 mm
9 VOE14566407 [REQ] Shim THICK = 0,8 mm
9 VOE14566408 [REQ] Shim THICK = 1,0 mm
10 VOE984088 [20] Hex. socket screw
11 VOE14566410 [1] Planet carrier
12 VOE14566411 [1] Planet carrier
13 VOE14566415 [5] Pin
14 VOE14566413 [4] Planetary gear
15 VOE14566414 [8] Washer
16 SA9325-06012 [4] Spring pin
17 SA8230-21020 [1] Thrust ring
18 VOE14566412 [4] Needle bearing
19 VOE14566416 [1] Gear
20 VOE14566418 [1] Planet carrier
21 VOE14566423 [3] Pin
22 VOE14566419 [1] Planet carrier
23 VOE14566421 [3] Planetary gear
24 VOE14566422 [6] Washer
25 SA9325-06012 [3] Spring pin
26 VOE14566420 [3] Needle bearing
27 VOE14566433 [1] Thrust washer
28 VOE14566424 [1] Gear
29 VOE14570931 [1] Planet carrier
29A. VOE14570933 [3] Gear
29B. VOE14566427 [3] Needle bearing
29C. VOE14566429 [6] Washer
29D. VOE14566430 [3] Pin
29E. SA9325-06012 [3] Spring pin
29F. VOE14569232 [1] Ring
30 VOE14566417 [1] Ring
31 VOE14570934 [1] Gear
32 VOE990557 [2] O-ring
33 VOE950677 [2] Pin
34 VOE914467 [1] Retaining ring
35 VOE14667679 [1] Seal


  • Description


The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.
Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
