13F52000 13F52000A 13F52000B Hydraulic Oil cooler DOOSAN SOLAR 500LC-V oil cooler

• Doosan Daewoo S500-V 340-V 420-V DH500 DH420 DH340 13F52000 Hydraulic Oil Cooler Ass'y

• Specification

A hydraulic oil cooler is a component of a radiator assembly that is specifically designed to cool the hydraulic oil in a hydraulic system. Hydraulic systems generate a significant amount of heat due to the mechanical work being performed and the friction within the system. To maintain proper operating temperatures and prevent damage to the hydraulic components, hydraulic oil coolers are used.

The hydraulic oil cooler is typically integrated into the radiator assembly, which is responsible for cooling the engine coolant. The radiator assembly consists of several components, including the radiator core, coolant tanks, fans, and various plumbing connections. The hydraulic oil cooler is one of these components and is designed to cool the hydraulic oil by transferring heat to the surrounding air.

The hydraulic oil cooler operates on the principle of heat exchange. It consists of a network of tubes or fins that allow the hydraulic oil to flow through them. These tubes or fins are usually made of a material with high thermal conductivity, such as copper or aluminum, to facilitate efficient heat transfer.

As the hot hydraulic oil flows through the cooler, the heat is transferred to the walls of the tubes or fins. The airflow generated by the fans in the radiator assembly passes over these tubes or fins, carrying away the heat and cooling the hydraulic oil. The cooled hydraulic oil then returns to the hydraulic system to continue its operation.

The hydraulic oil cooler is typically connected to the hydraulic system using hoses or pipes that allow the hydraulic oil to flow between the system and the cooler. In some cases, the cooler may also have its own pump to circulate the hydraulic oil through the cooler.

Overall, the hydraulic oil cooler plays a crucial role in maintaining the proper operating temperature of hydraulic systems, preventing overheating, and ensuring the efficient and reliable operation of hydraulic components.

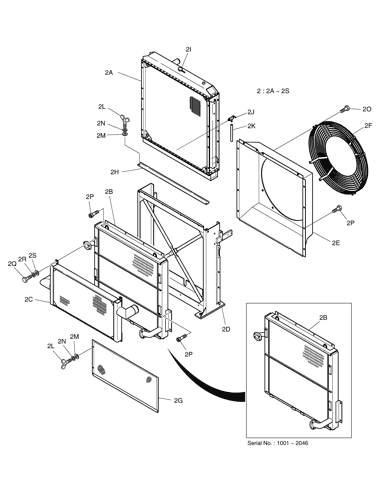

• Parts Diagram

OLAR 340LC-V
OIL COOLER ASS'Y » 13F52000
SOLAR 500LC-V
OIL COOLER ASS'Y » 13F52000
SOLAR 470LC-V
OIL COOLER ASS'Y » 13F52000
SOLAR 420LC-V
OIL COOLER ASS'Y » 13F52000

-.201-00088[-2]- ENGINE ASS'Y Komatsu China ["SC: D", "desc: MOTEUR"] ancatalogs:null
2.202-00077B[1]- RADIATOR ASS'Y Komatsu China ["SERIAL: 1001-1254", "SERIAL_NO: 1001~1254", "ICA: I", "REP_PNO: 202-00077C", "REP_QTY: 1", "desc: RADIATEUR"] ancatalogs:null
2.202-00077C[1]- RADIATOR ASS'Y Komatsu China ["SERIAL: 1255-1514", "SERIAL_NO: 1255~1514", "ICA: I", "REP_PNO: 202-00077E", "REP_QTY: 1", "desc: RADIATEUR"] ancatalogs:null
2.202-00077E[1]- RADIATOR ASS'Y Komatsu China ["SERIAL: 1515", "SERIAL_NO: 1515~", "desc: RADIATEUR"] ancatalogs:null
2A.13F91000[1]- . RADIATOR ASS'Y Komatsu China ["desc: . RADIATEUR"] ancatalogs:null
2B.13F52000[1]- . OIL COOLER ASS'Y Komatsu China ["SERIAL: 1001-1514", "SERIAL_NO: 1001~1514", "ICA: I", "REP_PNO: 13F52000A", "REP_QTY: 1", "desc: . REFROIDISSEUR D'HUILE"] ancatalogs:null
2B.13F52000A[1]- . OIL COOLER ASS'Y Komatsu China ["SERIAL: 1515", "SERIAL_NO: 1515~", "desc: . REFROIDISSEUR D'HUILE"] ancatalogs:null
2C.13F53000[1]- . CAC ASS'Y Komatsu China ["desc: . REFRIGERATION"] ancatalogs:null
2D.13F54000[1]- . FRAME ASS'Y Komatsu China ["desc: . BATI"] ancatalogs:null
2E.13F55000[1]- . SHROUD ASS'Y Komatsu China ["desc: . ARITER"] ancatalogs:null
2F.13F56000[2]- . FAN GUARD ASS'Y Komatsu China ["desc: . ABRITER"] ancatalogs:null
2G.13F57000[2]- . WIRE NET ASS'Y Komatsu China ["desc: . CABLE"] ancatalogs:null
2H.13F58000[1]- . TOP PLATE Komatsu China ["desc: . PLAQUE"] ancatalogs:null
2I.P06A[1]- . CAP ASS'Y Komatsu China ["desc: . BOUCHON"] ancatalogs:null
2J.P04[1]- . DRAIN COCK ASS'Y Komatsu China ["desc: . ROBINET"] ancatalogs:null
2K.P03[1]- . DRAIN HOSE Komatsu China ["desc: . TUYAU FLEXIBLE"] ancatalogs:null
2L.P1106[6]- . BOLT;WING M6X1.0X15 Komatsu China ["desc: . BOULON A 6PANS"] ancatalogs:null
2M.P1306[6]- . WASHER;PLAIN Komatsu China ["desc: . RONDELLE"] ancatalogs:null
2N.P1406[6]- . WASHER;SPRING Komatsu China ["desc: . RONDELLE ELASTIQUE"] ancatalogs:null
2O.P1108[8]- . BOLT M81.25X20 Komatsu China ["desc: . BOULON A 6 PANS"] ancatalogs:null
2P.P1110[24]- . BOLT M10X1.25X25 Komatsu China ["desc: . BOULON A 6 PANS"] ancatalogs:null
2R.P1210[4]- . WASHER;PLAIN Komatsu China ["desc: . RONDELLE PLATE"] ancatalogs:null
