191-2682 227-6116 Final Drive For 325C E325C Excavator Parts
191-2682 227-6116 Final Drive For 325C E325C Excavator Parts
191-2682 227-6116 Final Drive For 325C E325C Excavator Parts
191-2682 227-6116 Final Drive For 325C E325C Excavator Parts
191-2682 227-6116 Final Drive For 325C E325C Excavator Parts
191-2682 227-6116 Final Drive For 325C E325C Excavator Parts
Specifications
Brand Name :
OEM
Model Number :
E325C
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Parts No. :
191-2682 227-6116
Excavator Model :
E325C
Packing :
Wood Box
Warranty :
6 Months
Weight :
300 KG
Description

  • 325C E325C Final Drive Fit For Excavator 191-2682 227-6116 Spare Parts

  • Spec Sheet

Parts Name 325C Final Drive
Application
Parts No. 227-6116 191-2682
Category Final Drive
Weight 300 KG

  • Application

EXCAVATOR 320C . 320C FM . 325C . 325C FM .

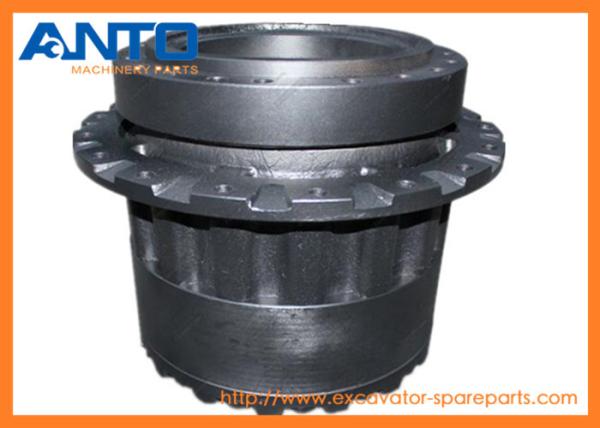

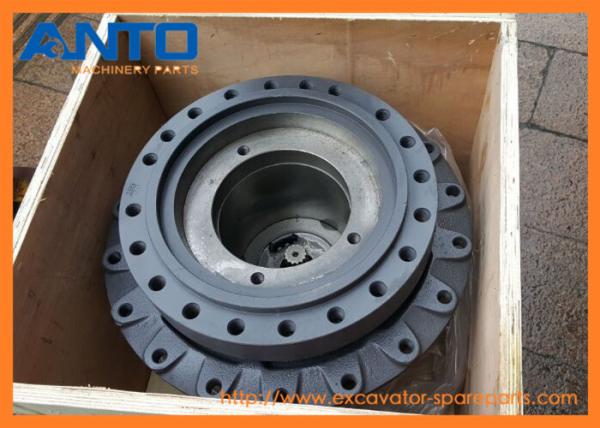

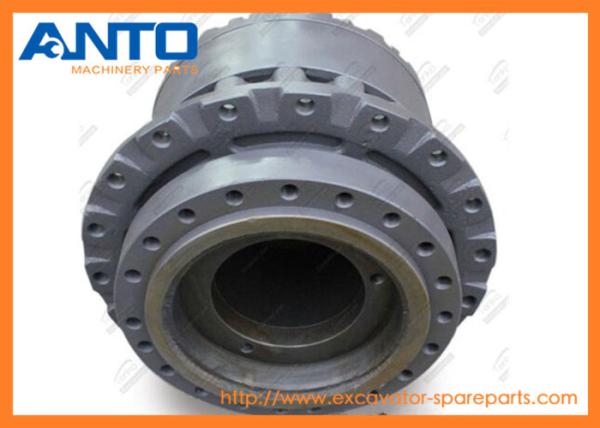

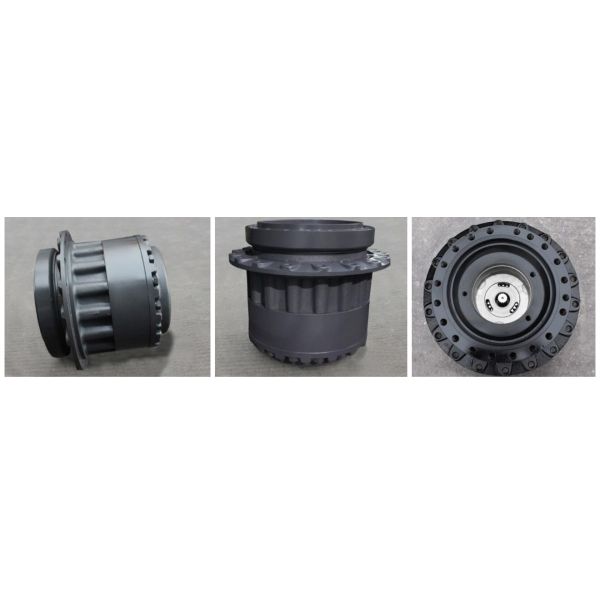

  • Product Photos

191-2682 227-6116 Final Drive For 325C E325C Excavator Parts

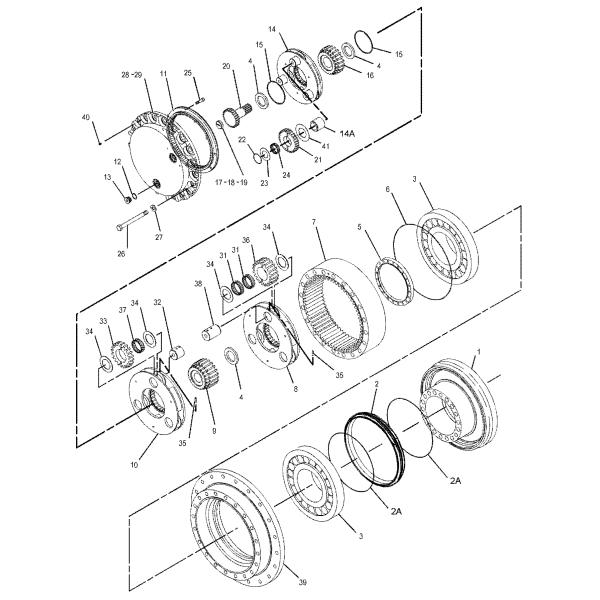

  • Parts Diagram
191-2682 227-6116 Final Drive For 325C E325C Excavator Parts

191-2682 DRIVE GP-FINAL
S/N BTD1-UP; AMH1-UP
WITHOUT MOTOR
PART OF 191-2681 DRIVE GP-FINAL

ENTIRE GROUP:

191-2682: DRIVE GP-FINAL
INDIVIDUAL PARTS:

1.169-5586[1] -
HOUSING-MOTOR .
2.207-1571[1] -
SEAL GP-DUO-CONE
2A.163-7373[2] -
RING-TORIC .
3.168-8452[2] -
BALL BEARING
4.7Y-0595[3] -
SPACER (58X79.6X6-MM THK)
5.169-5596[1] -
STOP
6.171-9298[1] -
SEAL-O-RING
7.191-2676[1] -
GEAR-RING (72-TEETH)
8.169-5599[1] -
CARRIER-PLANETARY .
9.169-5590[1] -
GEAR-SUN (24-TEETH)
10.191-2571[1] -
CARRIER-PLANETARY .
11.171-9387[1] -
GEAR-RING (64-TEETH)
12.7M-8485[2] -
SEAL-O-RING
13.3E-2338[2] -
PLUG-PIPE
14.191-2686[1] -
CARRIER AS
14A.191-2687[3] -
RACE-BEARING .
15.093-1731[2] -
RING-RETAINING
16.169-5589[1] -
GEAR-SUN (24-TEETH)
17.094-0578[1] -
PLATE (8-MM THK)
18.094-0579[1] -
PLATE (9-MM THK)
19.094-0580[1] -
PLATE (10-MM THK)
20.191-2683[1] -
GEAR-SUN (20-TEETH)
21.191-2684[3] -
GEAR-PLANETARY (21-TEETH)
22.096-0433[3] -
RING-RETAINING
23.191-2689[3] -
WASHER (34X70X1-MM THK)
24.191-2685[3] -
BEARING AS
25.9X-6032 M[12] -
BOLT-SOCKET HEAD (M10X1.5X30-MM)
26.179-8733 M[16] -
BOLT (M20X2.5X170-MM)
27.8T-4123[16] -
WASHER (3.62X5.75X0.375-MM THK)
28.199-4503[1] -
COVER
29.1U-8846 B-
SEALANT-GASKET
31.191-2570[6] -
BEARING AS (CAGED ROLLER)
32.169-5601[3] -
SHAFT-PLANETARY
33.169-5592[3] -
GEAR-PLANETARY (23-TEETH)
34.094-1528 M[12] -
WASHER (53X84X1-MM THK)
35.095-0891[6] -
PIN-SPRING
36.169-5593[3] -
GEAR-PLANETARY (23-TEETH)
37.191-2569[3] -
BEARING AS (CAGED ROLLER)
38.169-5602[3] -
SHAFT-PLANETARY
39.169-5585[1] -
HOUSING
40.096-3216 M[2] -
SETSCREW-SOCKET (M12X1.75X12-MM)
41.191-2690[3] -
WASHER (42.3X70X1-MM THK)

  • Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
