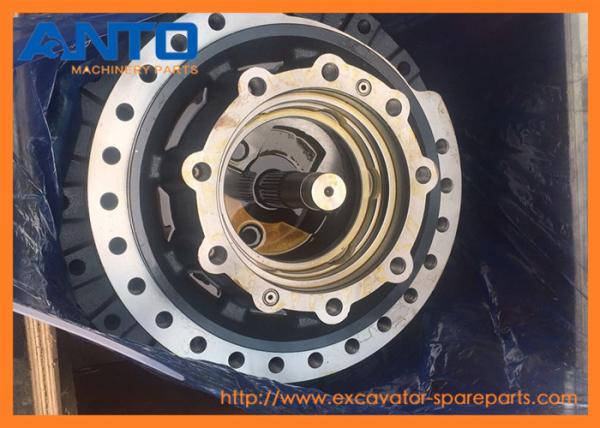

9190221 9212584 9190222 9232360 Excavator Crawler Final Drive for Hitachi ZX330 ZX350H Travel Device
9190221 9212584 9190222 9232360 Excavator Crawler Final Drive for Hitachi ZX330 ZX350H Travel Device
9190221 9212584 9190222 9232360 Excavator Crawler Final Drive for Hitachi ZX330 ZX350H Travel Device
9190221 9212584 9190222 9232360 Excavator Crawler Final Drive for Hitachi ZX330 ZX350H Travel Device
Specifications
Brand Name :
OEM
Model Number :
ZX330
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100-2000
Delivery Time :
3-7 working days
Packaging Details :
Wooden box for heavy parts, paper carton for light parts
Category :
Excavator Final Drive
Excavator Type :
Crawler Excavator
Parts No. :
9190221 9212584 9190222 9232360
Weight :
350 KG
Packing :
Wood Box, Standard Carton, Pallet
Warranty :
6 Months
Description

  • 9190221 9212584 9190222 9232360 Excavator Final Drive Applied To Hitachi ZX330 ZX350H Travel Device

  • Spec Sheet

Excavator spare parts name Travel reduction gear
Equipment Model ZX330 ZX350
Parts Category excavator final drive
Spare parts Condition Brand new
MOQ of order(PCS, SET) 1
Parts Availability In stock
Delivery Lead time 1-3 days


  • Application

EXCAVATOR ZX330 . ZX330-HHE . ZX350H . ZX350K . ZX350LC-AMS . ZX350LC-HCME . ZX360LC-HHE . ZX370MTH . Hitachi

  • Parts Diagram

9190221 9212584 9190222 9232360 Excavator Crawler Final Drive for Hitachi ZX330 ZX350H Travel Device

ENTIRE GROUP TRAVEL DEVICE:

9190221 I[2] -
TRAVEL DEVICE 9190222 .
9212584 I[2] -
TRAVEL DEVICE 9232360 (for assembly of machine) .
9190222[2] -
TRAVEL DEVICE .
9232360[2] -
TRAVEL DEVICE (for transportation) .
00.9190296 I[1] -
MOTOR;OIL 9195488 .
00.9213431 I[1] -
MOTOR;OIL 9231673 (for assembly of machine) .
00.9195488[1] -
MOTOR;OIL .
00.9231673[1] -
MOTOR;OIL (for transportation) .
02.1022194[1] -
HOUSING .
03.4066695[1] -
SEAL;GROUP
04.4192975[2] -
BRG.;ROL. .
05.1022179[1] -
DRUM .
06.1022168[1] -
SPROCKET
07.A590920[20] -
WASHER;SPRING .
08.J932060[20] -
BOLT .
10.3036256[1] -
NUT .
10.3094717[1] -
NUT
11.4192974[1] -
PLATE;LOCK .
11.4470326[1] -
PLATE;LOCK .
12.J901222[2] -
BOLT .
12.J901225[2] -
BOLT .
14.1022198[1] -
CARRIER .
15.4401293[3] -
SPACER
16.3075003[3] -
GEAR;PLANETARY .
18.4269470[6] -
PLATE;THRUST .
19.4269452[3] -
PIN .
20.4192021[3] -
PIN;SPRING .
21.3075005[1] -
GEAR;SUN .
22.4455088[6] -
BRG.;NEEDLE .
23.1022195[1] -
GEAR;RING .
24.J931640[28] -
BOLT .
26.1022197[1] -
CARRIER
27.3075002[3] -
GEAR;PLANETARY .
28.4455099[3] -
BRG.;NEEDLE .
29.4284521[6] -
PLATE;THRUST .
30.4269451[3] -
PIN .
31.4197763[3] -
PIN;SPRING .
32.3074989[1] -
GEAR;SUN .
34.1022196[1] -
CARRIER .
36.3075001[3] -
GEAR;PLANETARY
37.4455098[3] -
BRG.;NEEDLE .
38.4284520[6] -
PLATE;THRUST .
39.4269472[3] -
PIN .
40.4192020[3] -
PIN;SPRING .
41.2038915[1] -
SHAFT;PROP. .
41.2048000[1] -
SHAFT;PROP.
43.2045031[1] -
COVER
44.4277474[1] -
PIN;STOPPER .
45.4278168[1] -
BRG.;BALL
46.930451[1] -
RING;RETAINING
47.J011230[16] -
BOLT;SEMS .
47.4609016[16] -
BOLT;SEMS .
48.4245797[3] -
PLUG .
50.4269473[1] -
O-RING .
51.4287213[4] -
WASHER;SPRING .
52.M341885[4] -
BOLT;SOCKET .
54.3053559[1] -
NAME-PLATE
55.M492564[2] -
SCREW;DRIVE
  • Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.


Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

  • Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below cases

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

  • Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
