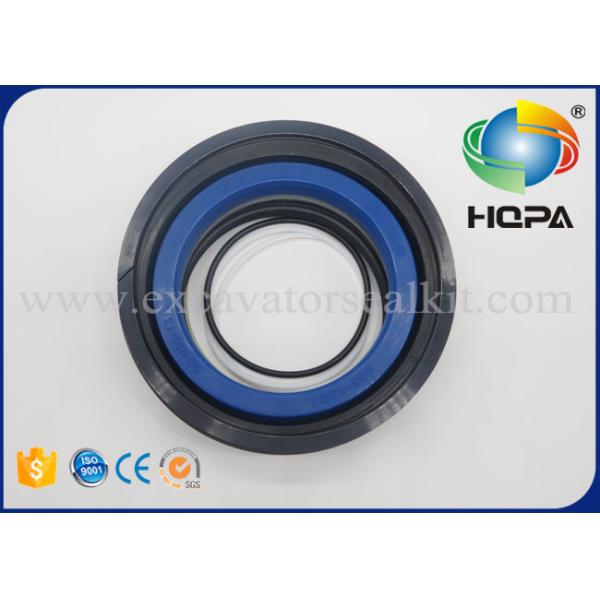

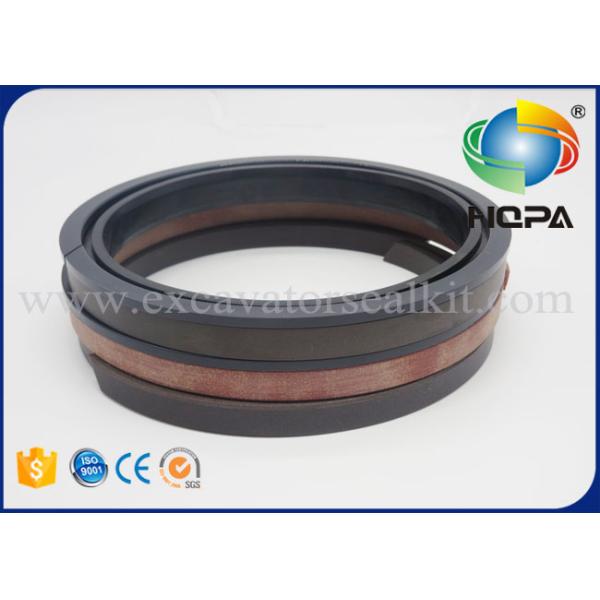

Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals
Specifications
Brand Name :
HQPA/OEM
Model Number :
2440-9241KT 401107-00335 401107-00335A
Certification :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
1 SET
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 Sets per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Material :
PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Part No. :
2440-9241KT 401107-00335 401107-00335A
MOQ: :
Trial Order Accepted
Type: :
Seal Kit
Color :
Black，Brown, Blue ，white or other
Style :
Hydraulic,Mechanical Seal,repair kits,Engineer Seal kit
Application :
Excavator
Feature :
Oil Resistance / Abrasion Resistant / Corrosion Resistance,High chemical resistance,Sealing Performance,Wear-resistant
Advantage :
Long service life and low price,Competitive Price and Quality,OEM Product
Description

Doosan 2440-9241KT Excavator Arm Seal Kit Bucket Cylinder Seal Kit

Product Name Doosan 2440-9241KT Excavator Arm Seal Kit Bucket Cylinder Seal Kit
Part No. 2440-9241KT 401107-00335 401107-00335A
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent,and so on
Hardness 70-90 Shore A
Color Black,Brown,Blue, White or other
Size Standard Size
MOQ

We accept trial order
Packing PP bag inside, carton box outside
Delivery Time 3-5 days after payment received(public holiday excluded)
Payment

Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Port HUAGNPU,China (Mainland)
Shipping By airplane, ship
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed
Application Excavator&Hydraulic Systerm
Condition 100% New

RELATION MODELS:

DH 300LC-V SOLAR 290LC-V SOLAR 450LC-V SOLAR 500LC-V
DH 500LC-V SOLAR 300LC-V SOLAR 470LC-V


RELATION PARTS:

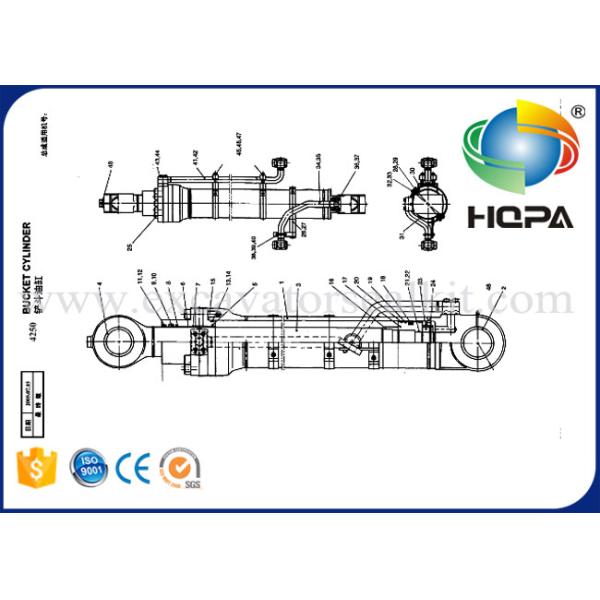

NO. PART NUMBER NAME QTY
1 2440-9241B Bucket Cylinder 1
2 53U313-1 Cylinder Barrel Assembly 1
3 53B238-0 Steel Bushing 1
4 53U367-1 Rod Assembly 1
5 00R730-0 Seal Ring 2
6 E8412281 Bushing 1
7 00M313-0 Jump Ring 2
8 E5500301 Shock Ring 2
9 E5303200 U-packing 1
10 E6020300 Dust Scraping Ring 1
11 00M315-0 Jump Ring 1
12 E6311341 O-ring 1
13 53B316-0 Back-up Ring 1
14 53U370-0 Piston 1
15 53U371-0 Buffer Ring 1
16 E5130320 Sliding Seal 1
17 00Z109-0 Wear Ring 2
18 E3110112 Elastic Washer 8
　 2440-9241KT Bucket Cylinder Seal Kit 1

Doosan 2440-9241KT Excavator Seal Kit , Hydraulic Cylinder Packing Seals

Hydraulic Seal installation requirements:

1. the hydraulic sealing gaskets and flange sealing surface should be clean

2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter

3. Sealing gasket pre-tightening force should not exceed the design rules

4. sealing asbestos gasket compression, it is best to use the torque wrench

5. Installing a sealing gasket, should be in order, in turn, tighten the nut

6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket

Welcom to contact us,we can provide the high quality and best price!
