Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts
Specifications
Brand Name :
Sany ,Hitachi,Hyundai,,,Yuchai
Model Number :
39Q8-41240
Certifiion :
Genuine , Oem , Aftermarket
Place of Origin :
China,Korea
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
Western Union, T/T, MoneyGram, Paypal
Supply Ability :
10000 PCS per Month
Delivery Time :
3-5 Days
Packaging Details :
Carton, plywood box
Model: :
39Q8-41240
Product name :
Plate Swash
Packing :
Standar Export Packing
Type :
Excavator Spare Parts
Appliion :
Excavator,Construction Field
Quality :
Original & OEM & Aftermarket
Engine type :
Diesel
After-sales service provided :
Online support
Description

Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts

Part Name

Plate Swash
Part Number:

39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351
Appliion :

R260

Detail Image

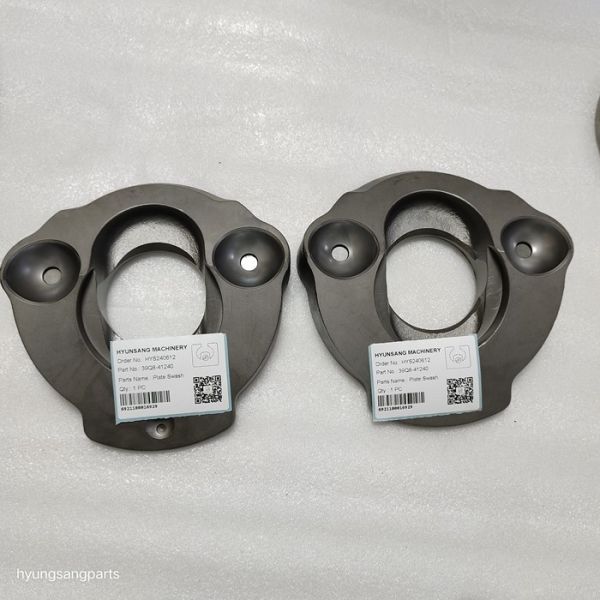

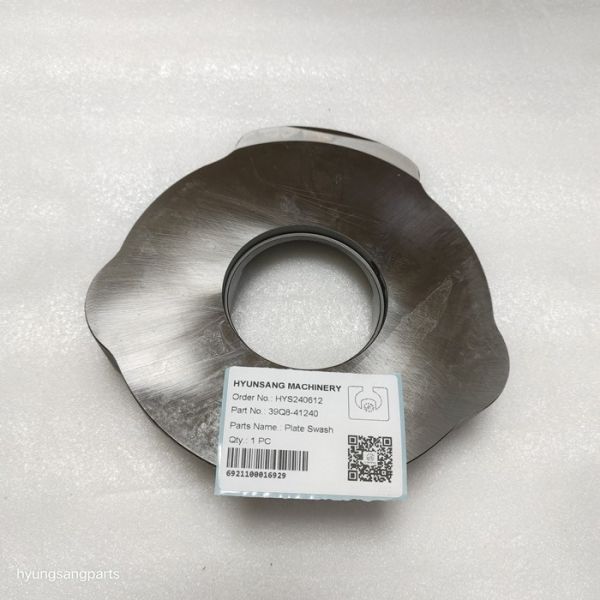

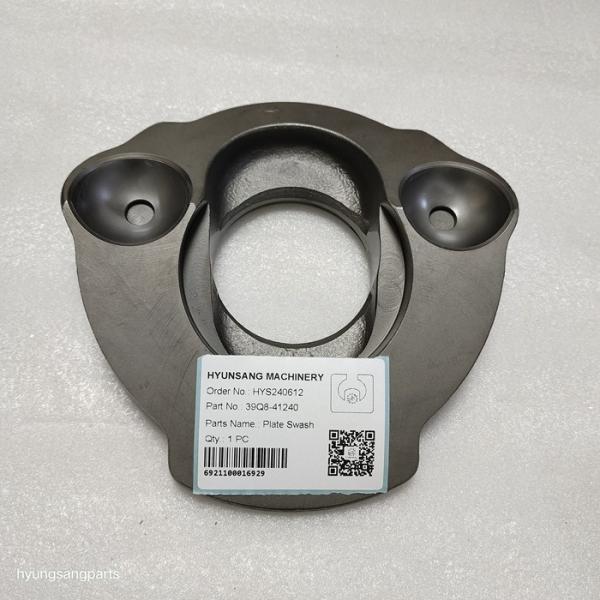

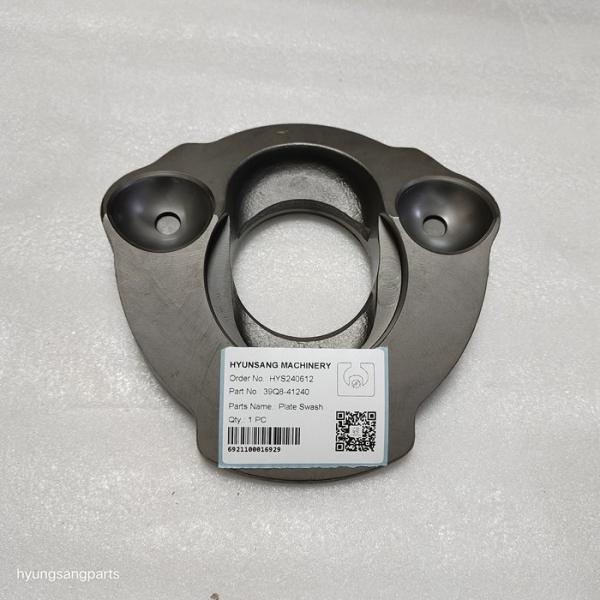

Plate Swash 39Q8-41240 39Q8-41210 39Q8-41400 39Q8-41351 For R260 Hyundai Excavator Parts

Parts on group TRAVEL MOTOR (2/2, H/WALKER, TYPE 4, 5):

Pos. Part No Qty Parts name Comments
*. @ [1] TRAVEL MOTOR ASSY SEE 4180
*-1. 39Q8-41100 [1] TRAVEL MOTOR UNIT TYPE 4
*-1. 38Q8-41100 [1] TRAVEL MOTOR TYPE 5
1. 39Q8-41110 [1] CASING
K2. 39Q6-41120 [13] PLUG
K3. 39Q8-41120 [1] SEAL-OIL
K4. 39Q8-41130 [1] BLOCK-THRUST
NK5. S632-095004 [1] O-RING
6. S602-100001 [1] RING-RETAINING,C TYPE
NK7. 39Q8-41150 [1] PISTON
NK8. 39Q8-41160 [1] SEAL-PISTON
9. 39Q8-41170 [1] SHAFT
10. 39Q8-41180 [1] BEARING-CYL.ROLLER
K11. 39Q8-41190 [1] BEARING-NEEDLE
12. S601-055001 [1] RING-RETAINING,C TYPE
13. S751-040004 [1] RING-RETAINING,C TYPE
14. 39Q8-41210 [1] PLATE-THRUST
15. 39Q8-41220 [1] BALL-STEEL
16. 39Q8-41230 [2] PIVOT
17. 39Q8-41240 [1] PLATE-SWASH
NK18. 39Q8-41270 [1] BLOCK-CYLINDER
NK19. 39Q8-41280 [9] SPRING
NK20. 39Q8-41300 [1] GUIDE-BALL
NK21. 39Q8-41310 [1] PLATE-RETAINER
NK22. 39Q8-41320 [9] PISTON ASSY
NK22. 39Q8-41321 [9] PISTON ASSY
N22-1. 39Q8-41330 [1] PISTON
N22-1. 39Q8-41331 [1] PISTON
N22-2. 39Q8-41340 [1] SHOE
23. 39Q8-41351 [5] PLATE-FRICTION
23. 39Q8-41351 [6] PLATE-FRICTION
24. 39Q8-41360 [6] PLATE-SEPARATE
24. 39Q8-41360 [7] PLATE-SEPARATE
25. 39Q8-41370 [1] PISTON-PARKING 50~110UM
25. 39Q8-41370T1 [1] PISTON-PARKING FOR A/S
NK26. 39Q8-41380 [1] D-RING
NK27. 39Q8-41390 [1] D-RING
28. 39Q8-41400 [1] PLATE-VALVE
28. 39Q8-41600 [1] PLATE-VALVE
*-2. @ [1] TRAVEL REDUCTION GEAR SEE 4182
K. 39Q8-41140 [1] PLUG KIT SEE ILLUST
K. 39Q8-41250 [1] ROTARY KIT SEE ILLUST
K. 39Q8-41260 [1] CYLINDER BLOCK KIT SEE ILLUST
K. 39Q8-41290 [1] RETAINER KIT SEE ILLUST
K. 39Q8-41560 [1] O-RING KIT SEE ILLUST
K. 39Q8-41570 [1] D-RING KIT SEE ILLUST
K. 39Q8-41440K [1] COVER KIT-REAR SEE ILLUST
K. 38Q8-41440K [1] COVER KIT-REAR
  • We could supply the following spare parts.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: complete engine , piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Track Chain etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swivel joint, fuel tank, filter, boom, arm, bucket etc.
