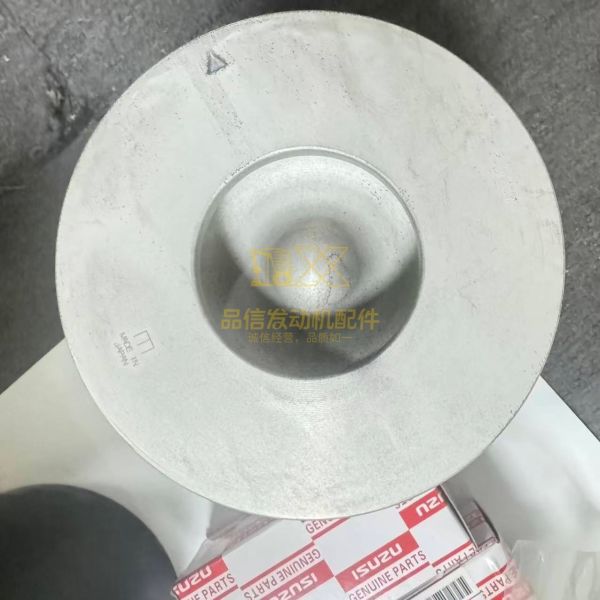

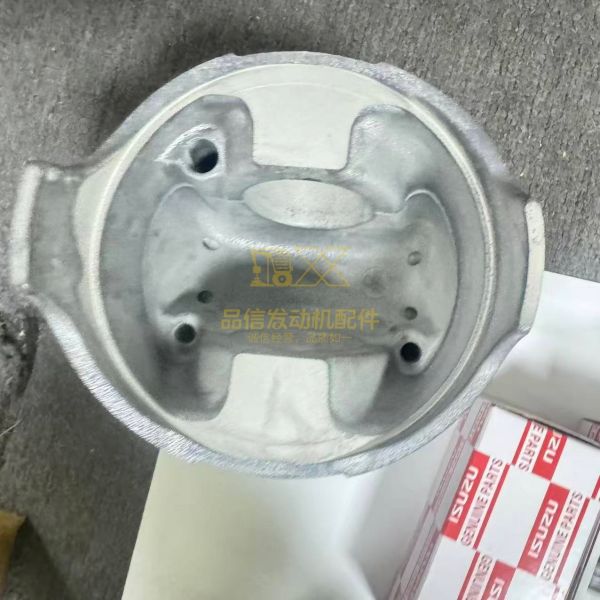

1-12111976-0 Aluminum Piston STD Isuzu 6HK1 Piston Kit Excavator ZX330 Engine Parts
1-12111976-0 Aluminum Piston STD Isuzu 6HK1 Piston Kit Excavator ZX330 Engine Parts
1-12111976-0 Aluminum Piston STD Isuzu 6HK1 Piston Kit Excavator ZX330 Engine Parts
1-12111976-0 Aluminum Piston STD Isuzu 6HK1 Piston Kit Excavator ZX330 Engine Parts
Specifications
Brand Name :
Isuzu
Model Number :
4HK1 6HK1
Place of Origin :
China
MOQ :
6pcs
Payment Terms :
,T/T,Western Union
Supply Ability :
100pcs，7 work day
Delivery Time :
5-15 work days
Packaging Details :
wooden box packaging
Price :
$40-65
Part name :
Piston STD
Engine model :
6HK1
Condition :
100% Brand-new
Part model :
1-12111976-0
Machine Model :
ZX330
Weight :
1.482kg
Packing :
Customer Request
type :
Engine Parts
Description

Core features
Materials and Craftsmanship:
Made of high-strength aluminum alloy, it features excellent thermal conductivity, wear resistance and high-temperature and high-pressure resistance.
The top is designed as a concave or formed top (to meet the combustion requirements of diesel engines), and the surface of some models will be tinned,

inlaid with rings and other treatments to enhance durability.
Structural function:
It is composed of the piston top (a component of the combustion chamber), the head (equipped with piston rings, responsible for sealing and heat conduction),

and the skirt (guiding reciprocating motion and bearing lateral pressure).
The top pit shape, in combination with the fuel injection system, can optimize combustion efficiency and reduce emissions.
Usage and applicable scenarios:
As the core component of the piston connecting rod assembly, it converts the combustion pressure in the cylinder into mechanical energy to drive the crankshaft to rotate.
It is compatible with Isuzu 4HK1, 6HK1 and other series diesel engines, and is widely used in excavators, loaders, trucks and other equipment.
Supporting information:
It is usually combined with cylinder liners, piston rings and piston pins to form the "four sets", jointly ensuring the power output and operational stability of the engine.

item
value
Place of Origin
China
Guangdong
Warranty
6 Months
Product Name
Piston
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Description
Engine Piston Type
Engine No.
4HK1 6HK1
Part No.:
1-12111-976-0
Outer Diameter
115mm
Height
119.98mm
Fire Room Diameter
61.8mm
Piston Pin Size
40*87mm
Ring Slot
3.mm+2.0mm+2.5mm+3.0mm
Compression Height
66.27mm

We Can Provide Excavator Engine Parts:

Liner Kit Piston Piston Ring Engine Bearing Cylinder Block
Gasket Kit Gasket Head Crankshaft Valve Valve Seat
Valve Guide Nozzle Bearing Accelerator Motor Transmitter
Pressure Switch Flameout Solenoid Monitor Fan Cooling Oil Filter
Radiator Main Valve Belt Turbocharger Fuel injection pump

For Hino
DS50/DS70/EF750/EF550/EH100/EH700/EK100/EK200/EM100/EP100/E13C/F17C/F17D/
F17E/F20C/F21C/H06C/H07C/H07D/J08C/J08E/K13C/K13D/P09C/P11C/M10C/M10U/
N04C/V22C/W04D/W06D/W06E
For ISUZU
C190/C221/C223/C240/DA120/DA640/4LE2/4KH1/4BA1/4BC2/4BD1/4BE1/4HF1/4HG1/
4HK1/4JA1/4JB1/4JG2/4JH1/4JJ1/4JK1/4HL1/4LE1/6BD1/6BF1/6BG1/6HE1/6HH1/6SD1/
6WG1/6WF1/6WA1/6HK1/6BB1/6UZ1/10PC1/10PD1/10PE1
For MITSUBISHI
4D30/4D31/4D32/4D33/4D34/4D35/4D55/4D56/4M40/4M41/4M50/4M51/6M60/6M61/6D14/6D17/6D15
/6D16/6D22/6D31/6D34/8DC9/8DC10/8DC11/8DC81/8DC82/8DC91/8DC92/S6A/S6B/4DR5/4DR7/S4Q2/
S4L/S4S/S4E/S4F/K4N
For NISSAN
FD42/FD35/FD46/FE6/QD32/SD23/SD25/YD25/TD23/TD25/TD27/NE6/ND6/PD6/PE6/PF6/
RD8/RE8/RF8/RH8/GE13/BD30/
For KOMATSU
4D94/4D95/4D105/4D120/4D130/6D95/6D102/6D107/6D105/6D108/6D110/6D125/6D140/
6D155/6D170
For TOYOTA
1Z/2Z/13Z/1DZ/3C/1KZ/1KD/1HZ/14HZ/15HZ/1NZ/11B/13B/14B/15B/2KD/2L/3L/5L/3B/
For MAZDA
T2500/T3000/T3500/T4100/T4500/R2
For YANMAR
4D84/4D92/4D94/4TNV88/4TNE88/4TNV94/4TNE94/4TNV98/4TNE98
For CummindS
K19/N14/M11/6L/A2300/L375/6BT/6CT/NT855/NH220
For CAT
3304/3306/3116/3126/320C/320D/3360/3406/S6K/9N5250/9N5403/C6.6/C7/C7.1/C9/
C-9/C10/C11/C13/C15/C18/2M5558
For HYUNDAI
D4BA/D4BB/D4BH/D4AE/D4CB/D4DA/D4DD/D4BX/D6CA/D6CB/6D16
For KIA
K2400/K2700/K3000/K3500/K3600/K4100
For DAEWOO
D2848/D1146/D2366/DB58/DL08
For VOLVOS
D6D/6DE/D7D/D7E/D12D/D13F
For DEUTZ
912/913
