Specifications
MOQ :
1
Price :
5780
Brand Name :
Jisan
Model Number :
jsb
Certification :
CE, ISO
Place of Origin :
China
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Sets Per Year
Delivery Time :
10-14 Workdays
Packaging Details :
Export Wooden Cases or pallets
Model NO. :
JSB1900S
Color :
Yellow, Black or as Clients Request
Delivery :
3-5 Days
Impact Rate :
400-600bpm
Weight :
1900kg
Other :
OEM Avilible
Suitable Excavator :
19-26ton
Transport Package :
Export Standard Package
Specification :
CE, ISO
Trademark :
JISAN
Origin :
Yantai City, China
HS Code :
84314999
Production Capacity :
1000sets/Month
Description

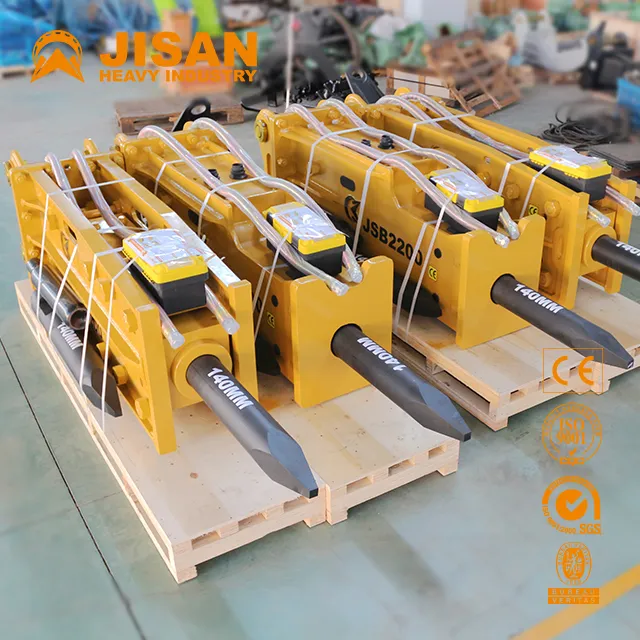

Hydraulic Rock Breaker, Rock breaker, Excavator hammer, Side type breaker, Top type breaker, Box type breaker for excavator

JSB series breakers are compatible with various brands of excavators including:
DOOSAN,SANY,HYUNDAI,PALLET ,VOLVO ,KOBELCO ,KATO ,KUBOTA ,JCB,CASE ,GEHL etc.
Our hydraulic breaker (hydraulic hammer) are applicable to excavators which from1.2 to120 ton

Specifications

Light Duty Parameters
Model Unit JSB200S JSB300S JSB400S JSB600S JSB800S JSB900S
Weight Kg 80 165 254 264 486 853
Length Mm 1100 1190 1347 1528 1920 2260
Pressure Kg/m² 90-120 90-120 110-140 110-160 120-170 150-170
Flow L/Min 15-25 25-50 25-45 30-45 45-85 80-120
Rate Bpm 700-1200 600-1100 500-900 500-800 400-700 400-700
Hose Inch 1/2 1/2 1/2 1/2 3/4 3/4
Chisel Mm 45 53 68/70 75 85 100
Suit Ton 1.2-3.0 2.0-4.0 3.0-5.5 4.0-7.0 7.0-14 11-16

Medium Duty Parameters
Model Unit JSB1600S JSB1900S JSB2800S
Weight Kg 1679 1898 2455
Length Mm 2695 2810 2895
Pressure Kg/m² 160-180 160-180 160-180
Flow L/Min 120-160 130-170 150-190
Rate Bpm 400-700 400-600 350-500
Hose Inch 1 1 1
Chisel Mm 135 140 150
Suit Ton 19-26 19-26 27-38
Heavy Duty Parameters
Model Unit JSB3500S JSB4500S JSB5000S JSB5500S JSB6500S
Weight Kg 2650 3753 3910 4500 7060
Length Mm 3152 3310 3400 3726 4430
Pressure Kg/m² 160-180 160-180 160-180 180-200 190-210
Flow L/Min 170-220 200-300 210-290 250-310 290-370
Rate Bpm 250-400 250-350 200-350 250-450 200-400
Hose Inch 1.25 1.25 1.25 1.25 1.25
Chisel Mm 155 165 175 180 210
Suit Ton 28-40 36-45 40-55 45-55 55-120

Features:
1.Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment, lower noise, long lifespan etc)
2. Suitable with a wide range of excavator.
3. Versatile application including rock broken, paving road, building demolition etc.
4.Top type breaker is applied to special operation that in large elevation angle.
5. Box type breaker namely silent breaker, which is sued in special project that noise is limited.
6. Easy use and easy maintenance.

Our Service

1. 7Days *24Hours phone and email service
2. Your inquiry will be replied in 24 hours
3. Well-trained and qualified staff to answer all your questions
4. OEM Service available
5. Warranty: 14 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).


Company Introduction

JISAN is one of the largest and most professional hydraulic breaker manufacturer with ten years experience.
Our products have been exported to many countries in the world including India,Saudi Arabia
, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
