5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Specifications
Place of Origin :
Shandong, China
Brand Name :
Tiejie
Model Number :
TJS40 TJS60 TJS200 TJS220
Packaging Details :
Pallet wooden boxes or negotiate with customers
Supply Ability :
500 Piece/Pieces per Month
Price :
$5,900.00/pieces 1-4 pieces
Showroom Location :
None
Warranty :
1 Year
Condition :
New
Applicable Industries :
Farms, Energy & Mining, Construction works
Weight :
2400
Suitable Excavator(ton) :
5-10Ton, 11-19ton, 20-29ton, 30-40ton
Bucket capacity :
0.46 m³ 0.57 m³ 1 m³ 1.2 m³
Bucket type :
Sieve bucket
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Hot Product
Product name :
excavator screening bucket
Drum Diameter :
800-1400mm
Bucket Opening :
920-15070mm
Maximized Grapping capacity :
0.52CBM
Height :
1335-2290mm
Bucket Total Length :
1557-2557mm
Color :
Customer request
OEM :
Acceptable
Rotation :
360 degree
Application :
rotating sand gravel trommel screen bucket
Description
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
1. Specially designed for underwater screening of sand, gravel, stones, and washed sand. 2. Greatly reduces the depth of the rotating screen, increases the capacity of the bucket, and achieves one loading and two screening. 3. Its high productivity and durability can meet the needs of crushing operations in quarries, mines, and large construction sites.
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Model
Unit
TJS40
TJS60
TJS200
TJS220
Load Volume(drum)
m³
0.46
0.57
1
1.2
Drum Diameter
mm
800
1000
1200
1400
Bucket Opening
mm
920
1120
1400
1570
Height(with bracket)
mm
1335
1730
2165
2290
Bucket Total Length
mm
1557
1764
2336
2557
Weight
kg
618
1050
1835
2400
Screen Mesh size
mm
10/150
10/150
10/150
10/150
Rotating Speed(max)
rpm/min
60
60
60
60
Suitable Excavator
Ton
5~10
11~19
20~29
30~40
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Our factory supports ODM&OEM. It would be even better if you could provide us with the drawings of the products you need. If you are not sure about the products you need, our customer service has been specializing in researching auxiliary tools for 20 years and will definitely provide you with a more suitable solution
"Click to contact us"
Product Feature
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
1.Tiejia supports color, special-shaped screen customized. Screens are replaceable.Double bolts serve as reinforcement.
2.With teeth is more suitable for screening stones, rock and construction work.Without teeth is more suitable for earthmoving, sieving soil, sand, etc.
3.100% customized hitch.Hitch size is customized according to your excavator, 100% matching your machine.
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
4.Screen size can be customized according to working condition.(mesh is Integrated molding by laser cutting)
5.Waterproof motor: closed protector, can be used on land works and under water.
6.All buckets main material is made of wear-resistant steel plate, high screening efficiency, long service life.
Product Display
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Product Details
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter

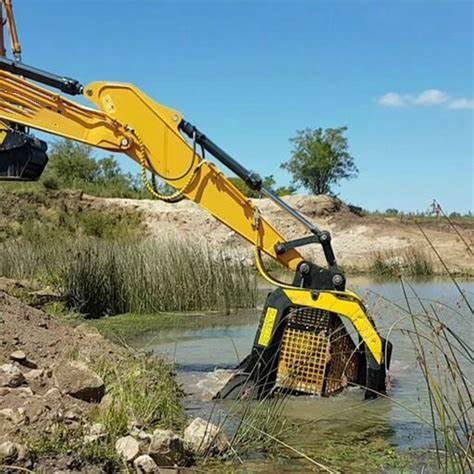

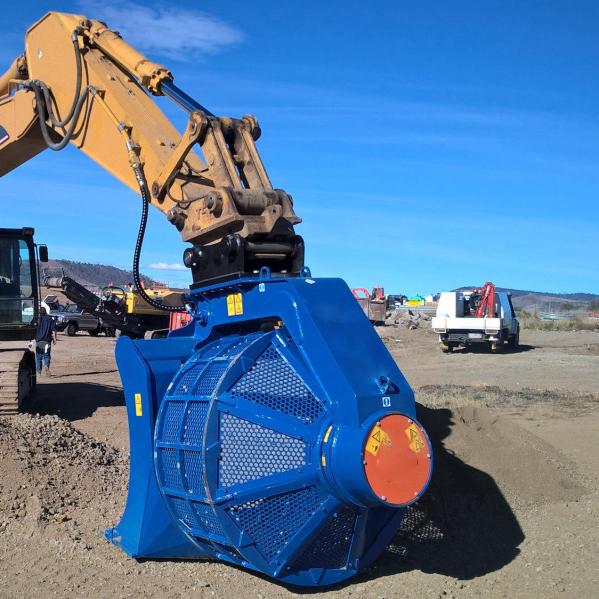

Product Application
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Related Products
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Packaging&Shipping
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Company Resume
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
FAQ
5 - 40 Ton Excavator Sieve Bucket Rotary Screening Bucket With 800-1400mm Drum Diameter
Q1: Are you a trading company or a manufacturer? A: We have our own factory. Q2: Can you produce non-standard or customized products? A: Yes, we can. Q3: What is your delivery time? A: Normally, if we have inventory, the delivery time is 7 days, and if not, it is 15-30 working days. But it also depends on product requirements and quantity. Q4: Do you provide samples? Are these samples free of charge? A: Yes, we can provide samples, but they are not free. Q5: What are your payment terms? A: 30% deposit wire transfer or irrevocable sight letter of credit. Q6: What is your after-sales service? A: After receiving the goods, we can provide remote installation guidance. If you have any questions, please feel free to contact us.
