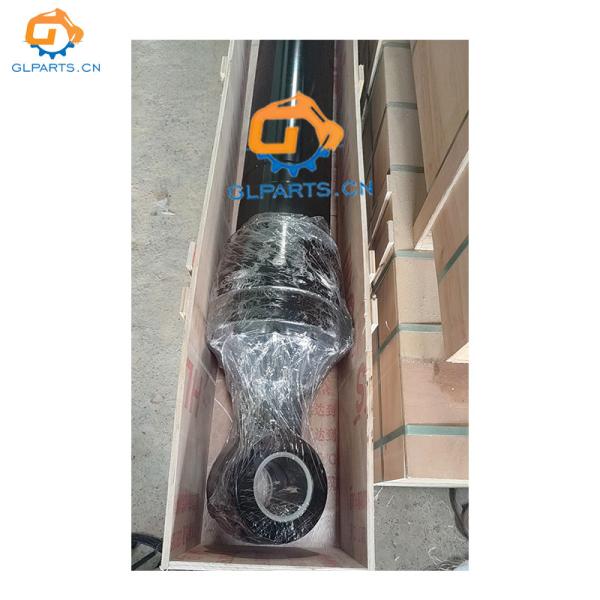

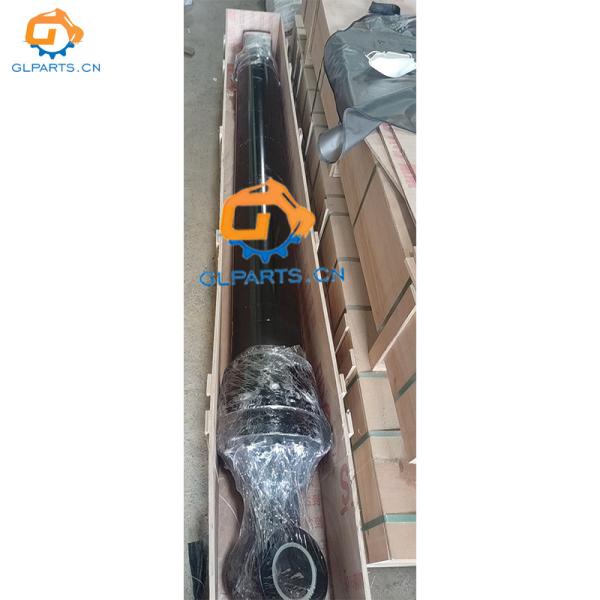

370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder
370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder
370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder
370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder
Specifications
Brand Name :
Glparts
Model Number :
E349 349E L E349D
Certification :
ISO9001
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
2000pieces/month
Delivery Time :
7 Days
Packaging Details :
Wooden Case
Product Name :
Excavator Stick Cylinder For Catepillar
Product Alias :
Excavator Hydraulic Cylinder
Part Number :
3706692 2254526 3588461 3588461 2254526 3588461
Seal Material :
PU
Testing :
100% Pressure Testing Before Delivery
Factory Direct Supply :
Yes
Description

370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder


Product Description


Product Name

Hydraulic Arm Cylinder Stick Cylinder

Model

E349 349E L E349D

Temperature Range

-30-100°C

Part Number

370-6692 225-4526 358-8461 358-8461 225-4526 358-8461
Pressure Range 21 MPa to 35 MPa
Dimensions Customized

OEM

Yes


List Of Spare Parts

370-6692


Pos. Part No Qty Part Name
1 358-8462 1 CYLINDER AS
1A 126-1956 1 BUSHING
2 358-8472 1 ROD AS
2A 228-5618 1 BUSHING
3 370-6693 1 HEAD
4 370-6664 1 SEAL-O-RING
5 370-6665 2 RING-BACKUP
6 165-9293 1 SEAL-LIP TYPE
7 087-5397 1 RING-BACKUP
8 333-8673 1 SEAL-U-CUP
9 333-8672 1 SEAL-BUFFER
10 114-0763 1 BUSHING
11 087-5393 1 RING-RETAINING
12 200-3620 1 RING-SEAL
13 359-7190 1 STOP
14 358-8478 1 PISTON
15 204-2845 2 RING
16 495-8218 1 SEAL AS
17 204-2846 1 RING
18 126-1971 1 LOCKNUT-SPECIAL
19 225-4641 1 RING-RETAINING
20 225-4642 1 RING
21 095-0930 2 RING-RETAINING

370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder

225-4526

Pos. Part No Qty Parts Name
1 359-7189 1 STOP
2 125-1286 1 SEAL AS
3 358-8479 1 HEAD
4 200-3620 1 RING-SEAL
5 333-8673 1 SEAL-U-CUP
6 225-4626 1 CYLINDER AS
6A 126-1956 1 BUSHING
7 358-8472 1 ROD AS
7A 228-5618 1 BUSHING
8 225-4641 1 RING-RETAINING
9 225-4642 1 RING
10 087-5390 1 STOP
11 087-5393 1 RING-RETAINING
12 087-5397 1 RING-BACKUP
13 114-0763 1 BUSHING
14 126-1971 1 LOCKNUT-SPECIAL
15 165-9293 1 SEAL-LIP TYPE
16 333-8672 1 SEAL-BUFFER
17 204-2844 1 PISTON
18 204-2845 2 RING
19 204-2846 1 RING
20 095-0930 2 RING-RETAINING (EXTERNAL)
21 095-1730 1 SEAL-O-RING
22 126-1978 1 RING-BACKUP
23 7X-2489 10 BOLT (M24X3X100-MM)

AVAILABLE REPAIR KIT(S):


331-9328


370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder

Company Information

GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.


Factory Tour

Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.


Piston Rod Production Process

370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder

Automatic Welding Process

370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder

Finished Product Warehouse Display


370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder


Exhibition Showcase


Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma

Exhibition With Cooperated Clients


370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder
