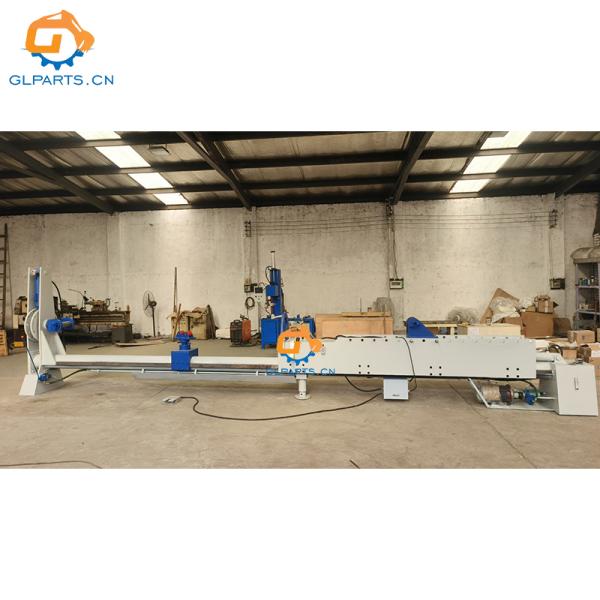

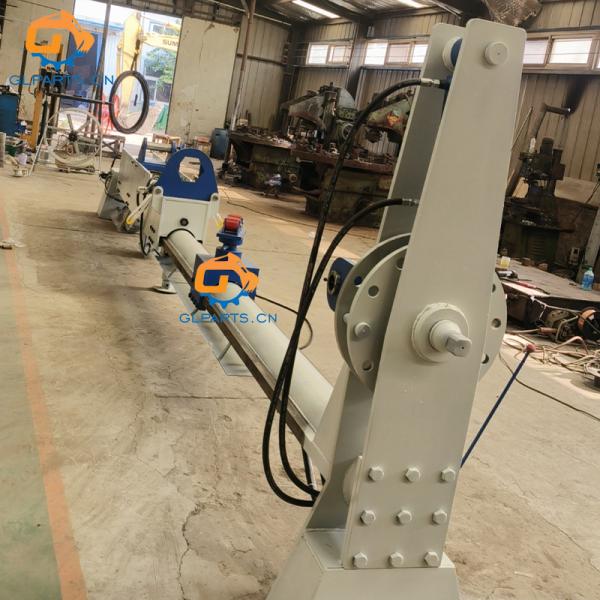

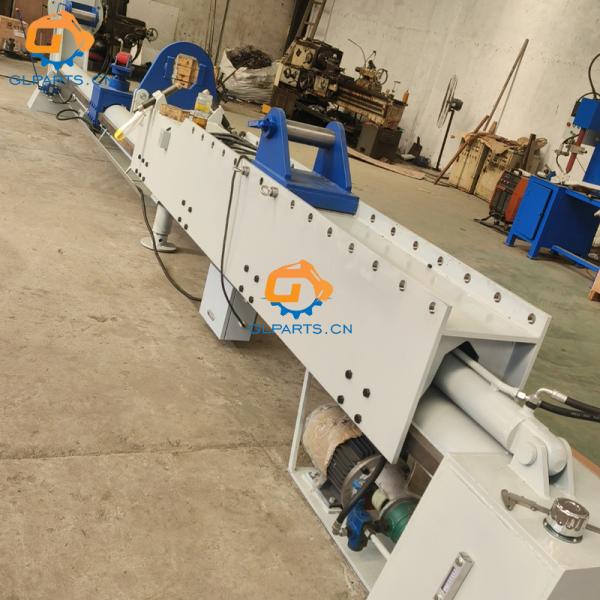

Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
Specifications
Brand Name :
Glparts
Model Number :
Various styles of cylinders
Certification :
CE, ISO9001
Place of Origin :
Made In China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
2000pieces/month
Delivery Time :
7 Days
Packaging Details :
Wooden Case
Part Name :
Hydraulic Cylinder Repair Bench
Warranty :
12 Months
Pull power :
59KN
External dimension :
Length/7.5m Width/0.88m Height/1.7m
Weight :
Total 2.2T
Description
Hydraulitechs Cylinder Repair, Disassembly and Assembly Bench for Excavator, Construction Machinery
Product Specifications
Part Name Hydraulic Cylinder Repair Bench
Certification CE, ISO9001
Warranty 12 Months
Pull power 59KN
External dimension Length/7.5m Width/0.88m Height/1.7m
Weight Total 2.2T
Product Description
A hydraulic cylinder repair bench is a purpose-built platform designed for safe and efficient servicing of heavy-duty cylinders. During repairs, the cylinder is held securely in place, allowing technicians to disassemble, inspect, and reassemble components without risk of slipping or damage.
The bench typically includes a chain vise for firm clamping, a high-torque rotating system for loosening and tightening cylinder parts, a hydraulic power unit for controlled force, and optional testing devices for pressure and leakage checks.
This setup ensures faster, safer, and more accurate cylinder maintenance, extending service life while reducing costs.

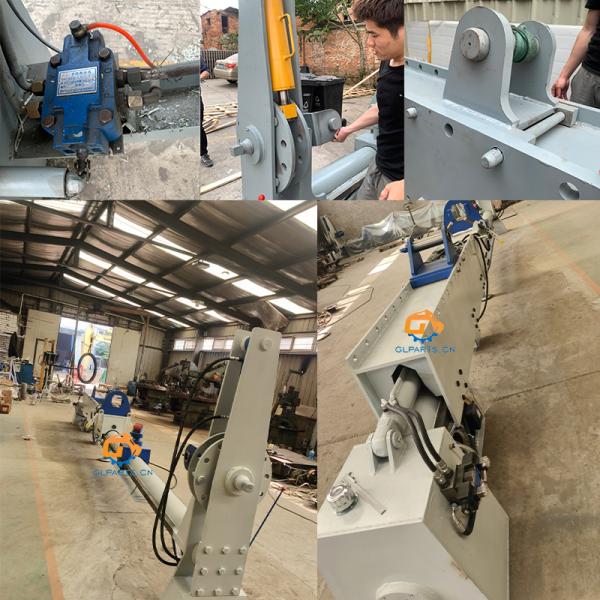

Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
Technical Data
Scope of dismantling and assembling Cylinder barrel external dia: 80 - 300mm Stroke: 0.5 - 3m
Maximum push - pull power Push power: 78.5KN Pull power: 59KN
Piston rod nut elastic torsion power 28848N.m
Maximum hydraulic system pressure 25MPa Factory setting push - pull power: 10MPa Piston rod nut elastic torsion presser: 21MPa
Motor of the hydraulic pressure station 4KW Three phase: 380V
Hydraulic pump displacement 10ml/r
External dimension Length/7.5m Width/0.88m Height/1.7m
Total weight 2.2T
Hydraulic fuel tank capacity 70L
Key Features
  • Built for Large Cylinders: Designed to handle oversized and heavy-duty hydraulic cylinders, expanding workshop capabilities.
  • Flexibility in Operation: Adapts to different repair needs for standard and custom cylinder projects.
  • Integrated Pressure Testing: Built-in hydraulic testing capability for pressure, leakage, and performance checks.
  • Safe Single-Person Operation: Designed for one technician to work safely with minimal risk.
  • Cost-Effective Tooling: Affordable accessories available separately for gradual workshop expansion.
  • Easy to Install and Use: Simple setup with user-friendly controls requiring minimal training.
  • Customizable Tool Attachments: Tailored tooling for precise fit and efficient repairs.
Applications
A hydraulic cylinder repair bench is widely used across industries where heavy-duty hydraulic systems are essential. It is particularly valuable for servicing excavator cylinders, which are constantly exposed to high loads and tough working environments.
Beyond excavators, the bench is also suitable for bulldozers, loaders, cranes, forklifts, and mining equipment, where hydraulic cylinders play a key role in lifting, pushing, and controlling movement.
Workshops use the bench to disassemble, reseal, reassemble, and pressure-test cylinders, ensuring they return to service with full reliability. Whether it's for construction fleets, agricultural machinery, or industrial equipment, the repair bench helps keep machines running efficiently while extending the service life of critical hydraulic components.
Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery Hydraulic Cylinder Repair , Disassembly and Assembly Bench for Excavator , Construction Machinery
